| SKU | VFACE-104 | VFACE-121 | VFACE-15 | VFACE-17 | VFACE-19 | VFACE-15.6 | VFACE-173 | VFACE-185 | VFACE-21.5 |
| Screen Size | 10.4" | 12.1" | 15" | 17" | 19" | 15.6" | 17.3" | 18.5" | 21.5" |
| Resolution | 1024*768 | 1024*768 | 1024*768 | 1280*1024 | 1280*1024 | 1280*1024 | 1920*1080 | 1920*1080 | 1920*1080 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 | 89/89/89/89 | 80/80/60/80 | 89/89/89/89 | 89/89/89/89 |
| Brightness | 500 cd/㎡ | 500 cd/㎡ | 350 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 400 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ |
| Contrast Ratio | 900:1 | 1200:1 | 1000:1 | 1000:1 | 1000:1 | 3000:1 | 600:1 | 1000:1 | 1000:1 |
| Touchscreen | Capacitive, Resisitive | ||||||||
| Controller | USB interface | ||||||||
| Durability | Capacitive: ≥5M times | Resistive: ≥100,000 times | ||||||||
| Processor | Intel® Processors | ||||||||
| Memory | 4G/8G/16G/32G | ||||||||
| Storage | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) | up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） | ||||||||
| Network | 1 * RTL8111 | 2 * RTL8111 | 1 * RTL8111 | 2 * RTL8111 | |||||
| COM | 2 * RS232 , (COM2 option RS485) | 2 * RS232 , (COM2 option RS485) expansion to 6COM | 2 * RS232 , (COM2 option RS485) | 2 * RS232 , (COM2 option RS485) expansion to 6COM | |||||
| USB | 1* Front USB, 4* Rear USB | ||||||||
| Display | 1* HDMI, 1* VGA | ||||||||
| Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) | ||||||||
| Operating System | Windows/Linux | ||||||||
| Dimensions (mm) | 309*244.7*58 | 310*273.1*58 | 366*310*62.4 | 397.8*354*62.4 | 439*386.5*64 | 402.7*269.7*61.8 | 446.2*296.2*64.5 | 476.4*339.3*61.7 | 550*365.7*63.8 |
| Mounting Hole Size (mm) | 301*237 | 301*256 | 352*298 | 384*343 | 426*374 | 389*258 | 432*285 | 464*327 | 533*347 |
| Gross weight (kg) | 3.54 | 3.52 | 4.68 | 6.00 | 7.00 | 4.84 | 5.68 | 6.54 | 8.08 |
| Mounting options | Embedded / Wall mount / Desktop | ||||||||
| Operating Temperature | -30 ~ +70°C | ||||||||
| Storage Temperature | -40 ~ +80°C | ||||||||
| Storage Humidity (Non-condensing) | 5 ~ 95% | ||||||||
| Power Input | 1*12VDC (option 9~36VDC Wide-range Power Input) | ||||||||
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable | ||||||||
Series Features

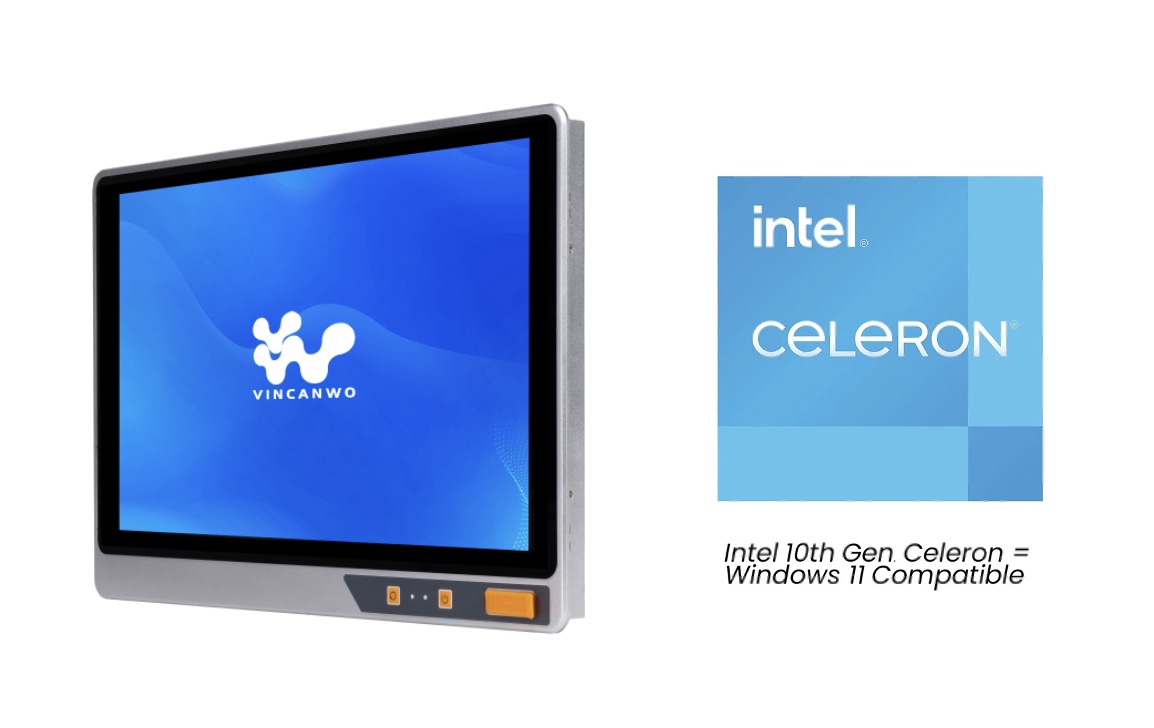

Powerful Intel 10th Gen Processor
VFACE X86 series features an Intel 10th Generation Celeron processor. Generation 10, nicknamed Elkhart Lake by the engineers at Intel, represents a fast and updated CPU. This allows for lightning-fast processing power. Industrial applications are easier and faster to use with Intel 10th Gen processing.
Windows 11 Capabilities
Due to the powerful Intel 10th Gen Celeron Quad core processor, the VFACE X86 Series of Advanced Industrial Cmputers have the capability to run Windows 11 Operating System smoothly. By requesting Windows 11 OS installation upon configurating, you can take advantage of the improved security and performance advances that Windows 11 offers. Or, install Windows 10 now and know you are able to upgrade to Windows 11 in the future.
>Advantages:
High Performance: The VFACE X86 Series is powered by Intel X86 processors, providing high processing power for demanding industrial applications. This allows for efficient operation and fast data processing.
Rugged Construction: These industrial computers are designed to withstand harsh industrial environments, with rugged construction that ensures reliable operation even in challenging conditions. This makes them ideal for use in manufacturing plants, warehouses, and other industrial settings.
Connectivity Options: The VFACE X86 Series offers a wide range of connectivity options, including multiple Ethernet ports, USB ports, and serial ports. This allows for easy integration with other industrial equipment and devices, making it a versatile solution for industrial automation and control applications.
Operating System Support: These industrial computers support multiple operating systems, including Windows and Linux, giving users flexibility in choosing the software that best suits their needs. This ensures compatibility with a wide range of industrial applications and software programs.
Customization Options: Advanced Industrial Computers offers customization options for the VFACE X86 Series, allowing users to tailor the hardware and software configurations to meet their specific requirements. This ensures that the industrial computer can be optimized for the unique needs of each application.
Overall, the VFACE X86 Series from Advanced Industrial Computers offers high performance, rugged construction, versatile connectivity options, and customization options, making it a reliable and efficient solution for industrial automation and control applications.
>Application:
The Advanced Industrial Computers VFACE X86 Series is well-suited for a variety of industrial applications due to its high performance, rugged construction, and versatile connectivity options. The most common applications of the VFACE X86 Series include:
Industrial Automation: The VFACE X86 Series can be used for controlling and monitoring automated processes in manufacturing plants, assembly lines, and other industrial settings. Its high processing power and connectivity options make it ideal for integrating with PLCs, sensors, and other automation equipment.
Machine Vision: These industrial computers are often used in machine vision systems for quality control, inspection, and measurement tasks. The high-performance processors and support for multiple operating systems enable efficient image processing and analysis.
Data Acquisition: The VFACE X86 Series can be used for collecting and analyzing data from various sensors and devices in industrial environments. Its multiple connectivity options allow for easy integration with data acquisition systems for real-time monitoring and analysis.
Industrial Control Systems: These industrial computers are commonly used in industrial control systems for managing and controlling equipment such as motors, pumps, and valves. The rugged construction and reliability of the VFACE X86 Series make it suitable for continuous operation in control applications.
SCADA Systems: The VFACE X86 Series can be integrated into SCADA (Supervisory Control and Data Acquisition) systems for monitoring and controlling industrial processes. Its connectivity options and support for multiple operating systems make it a versatile solution for SCADA applications.
Overall, the VFACE X86 Series from Advanced Industrial Computers is well-suited for a wide range of industrial applications, including industrial automation, machine vision, data acquisition, industrial control systems, and SCADA systems. Its high performance, rugged construction, and customization options make it a reliable and efficient solution for demanding industrial environments.
