SKU | VFACE-15 |
Screen Size | 15inch |
Resolution | 1024*768 |
Viewing Angle | 89/89/89/89 |
Brightness | 350 cd/m2 |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111, 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

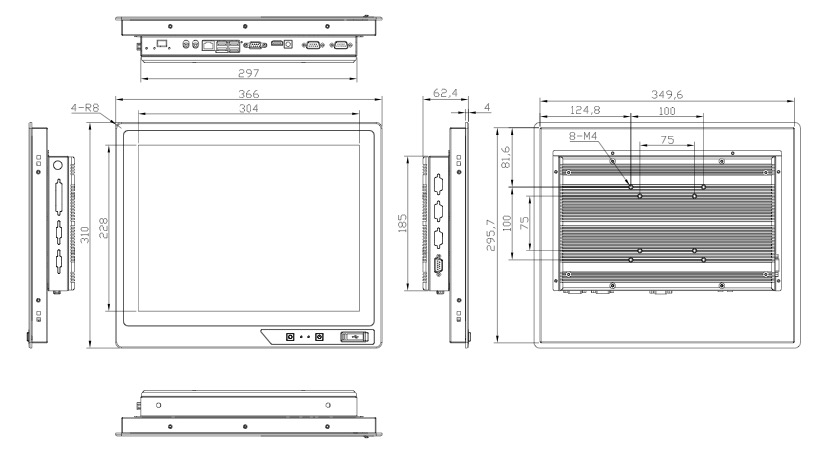

Dimensions (mm) | 366*310*62.4 |
Mounting Hole Size (mm) | 352*298 |
Gross weight (kg) | 4.68 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Advantages:
The VFACE-15 offers the most advantages as an advanced industrial computer:
Rugged Design: The VFACE-15 is built with a rugged design that can withstand harsh industrial environments, including exposure to dust, water, and extreme temperatures. This ensures reliable operation in challenging conditions.
High Performance: Equipped with an Intel Core i5 processor, the VFACE-15 delivers fast and efficient performance for demanding industrial applications. This allows for smooth operation and quick response times.
Touchscreen Display: The 15” touchscreen display provides a user-friendly interface for easy operation and navigation. This allows for intuitive interaction with the computer, making it suitable for a variety of industrial tasks.

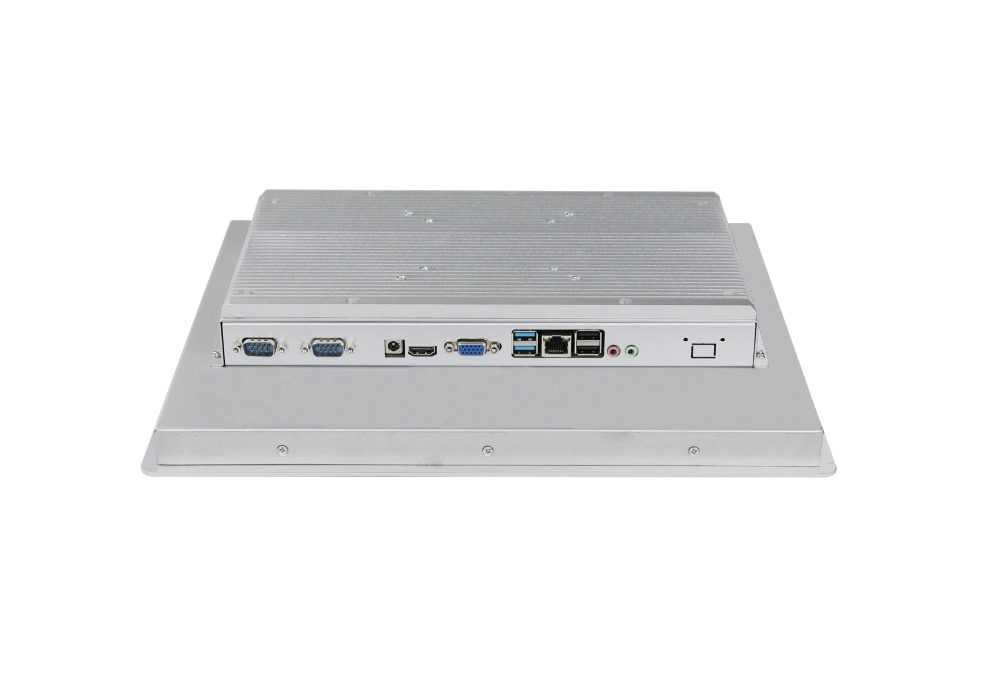

Connectivity Options: The VFACE-15 features multiple I/O ports for connectivity with various devices, such as USB, Ethernet, HDMI, and serial ports. This enables seamless integration with other equipment and systems in industrial settings.
Fanless Design: The fanless design of the VFACE-15 ensures silent operation and eliminates the risk of dust and debris buildup inside the computer. This reduces maintenance requirements and extends the lifespan of the device.
Wide Operating Temperature Range: With a wide operating temperature range of -20°C to 60°C, the VFACE-15 can function effectively in extreme temperature conditions. This makes it suitable for use in a variety of industrial settings, including outdoor environments.
Overall, the VFACE-15 offers a combination of durability, performance, and functionality that makes it an ideal choice for advanced industrial applications.
>Applications:
The VFACE-15, being an advanced industrial computer with rugged design and high-performance capabilities, is well-suited for a variety of industrial applications. The most common applications of the VFACE-15 include:
Factory Automation: The VFACE-15 can be used in factory automation systems for monitoring and controlling manufacturing processes, machinery, and equipment. Its reliability and durability make it ideal for use in industrial automation environments.
HMI (Human Machine Interface): The touchscreen display of the VFACE-15 makes it suitable for use as a human-machine interface in industrial control systems. It can be used to interact with and control machinery, equipment, and processes in manufacturing facilities.
Industrial IoT (Internet of Things): The VFACE-15 can be integrated into industrial IoT systems to collect, analyze, and transmit data from sensors and devices in real-time. This allows for improved monitoring, analysis, and optimization of industrial processes.
Logistics and Warehousing: The VFACE-15 can be used in logistics and warehousing applications for inventory management, order processing, and tracking of goods. Its rugged design and high-performance capabilities make it suitable for use in demanding warehouse environments.
Transportation and Fleet Management: The VFACE-15 can be integrated into transportation and fleet management systems for tracking vehicles, monitoring routes, and optimizing logistics operations. Its wide operating temperature range allows for use in vehicles and outdoor environments.
Energy and Utilities: The VFACE-15 can be used in energy and utilities applications for monitoring and controlling power generation, distribution, and consumption. Its reliability and connectivity options make it suitable for use in smart grid systems.
Overall, the VFACE-15 is a versatile industrial computer that can be used in a wide range of applications across various industries, where reliability, durability, and high performance are essential.
