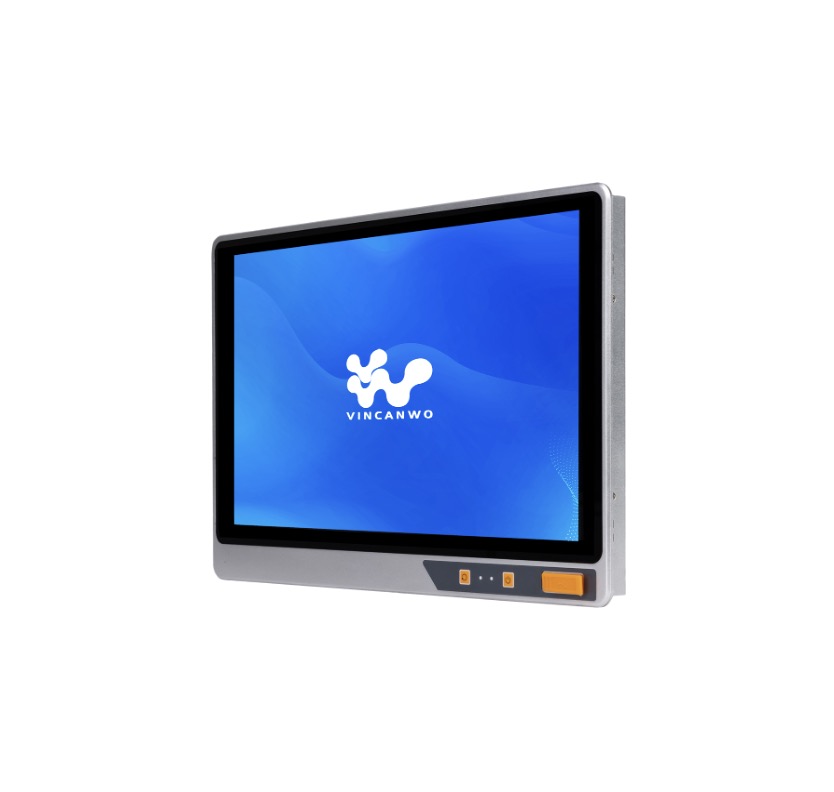

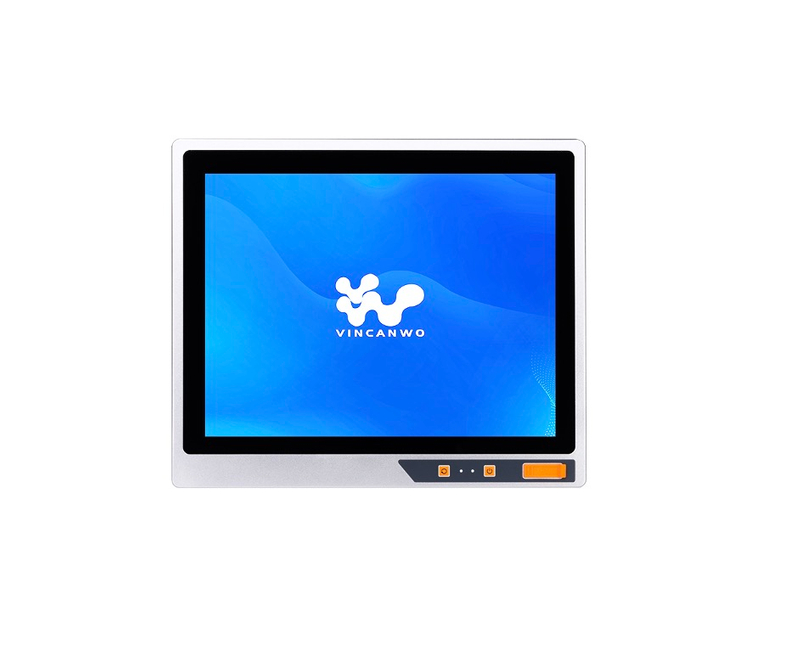

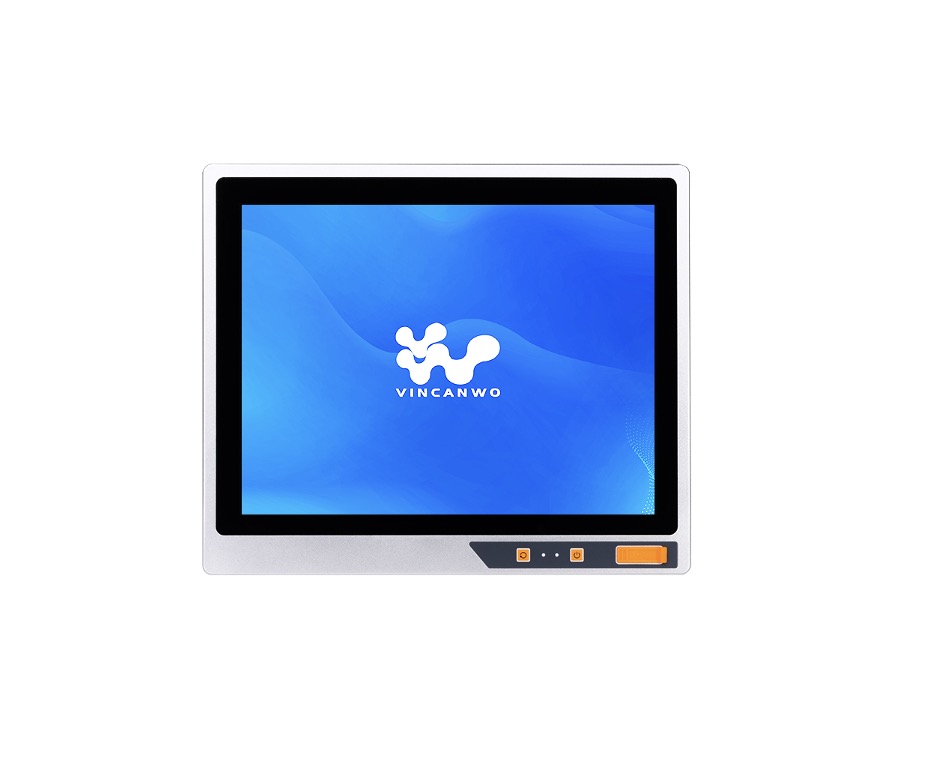

SKU | 19” Advanced Industrial Computer | VFACE-19 |
Screen Size | 19inch |
Resolution | 1280*1024 |
Viewing Angle | 85/85/80/80 |
Brightness | 250 cd/m2 |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |

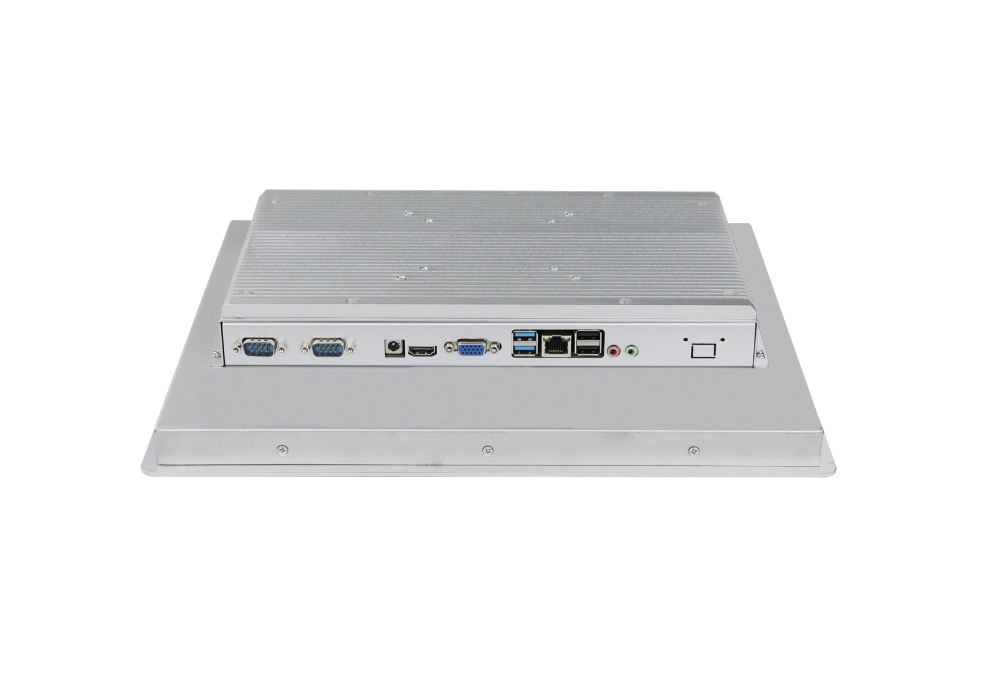

Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

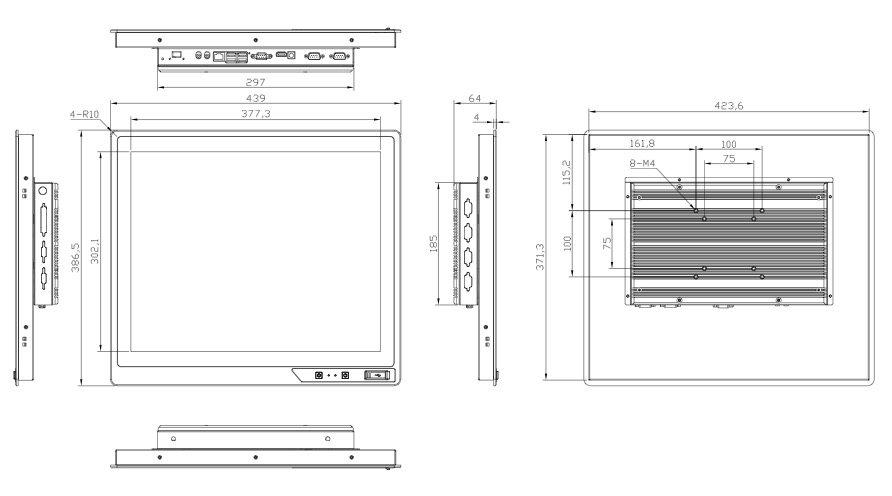

Dimensions (mm) | 439*386.5*64 |
Mounting Hole Size (mm) | 426*374 |
Gross weight (kg) | 7.00 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage
· Durability:
Designed to withstand harsh environments for years without maintenance.
· Reliability:
Designed to run 24/7, even in extreme conditions.
· Reduced downtime:
Require less maintenance and have a longer lifespan than traditional computers.
· Lower operating costs:
More cost-effective to run.
· Quieter operation:
Suitable for use in quiet environments like hospitals and libraries.
· Small size:
Fit into small spaces and are ideal for industrial setups.
· Vibration resistance:
Withstand constant shaking and vibrating environments.
· Dust and debris resistance:
Resistant to dust and debris.
· Extended operating temperatures:
Handle extended operating temperatures in non-ventilated spaces.
· Support for a variety of power inputs:
Accommodate varying power supply voltages.
>Product Applications
· Manufacturing:
Using in manufacturing environments where dust and debris could damage a computer with a fan.
· Transportation:
Using in vehicles like trains and buses for navigation, entertainment, and passenger information systems.
· Healthcare:
Using in hospitals and laboratories for medical imaging equipment, patient monitoring systems, and other critical devices.
· Agriculture:
Using for smart farming applications like monitoring irrigation systems, analyzing crop data, and managing livestock.
· Military and defense:
Using in surveillance, communication, and navigation systems in extreme weather conditions.
· Digital signage:
Using for digital signage in high-traffic areas.
· Aerospace:
Using in aerospace applications.
· Retail:
Using in retail point-of-service applications.
