SKU | 18.5” Advanced Industrial Computer | VFACE-185 |
Screen Size | 18.5inch |
Resolution | 1920*1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/m2 |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

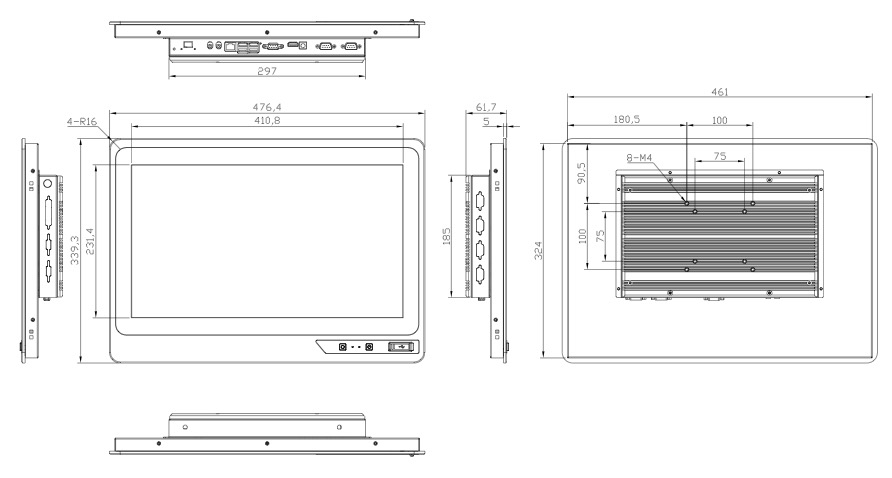

Dimensions (mm) | 476.4*339.3*61.7 |
Mounting Hole Size (mm) | 464*327 |
Gross weight (kg) | 6.54 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage
Faster data access
· Faster than traditional hard disk drives (HDDs) because they don't have mechanical parts to access data.
· Access large files quickly, which is important for industrial applications that require rapid data access.
· Improve system performance, especially when running programs that access large amounts of data.
Greater power efficiency
· Using less power than HDDs because they don't have moving parts.
· Ideal for battery-powered devices, which can result in longer battery life.
Greater durability
· More durable than HDDs.
· Very stable, which ensures that stored data is secure.
>Product Applications
Manufacturing
· Controlling machinery: Automate processes and monitor production lines
· Optimizing operations: Helping reduce waste and improve product quality
Transportation
· Managing traffic: Manage traffic systems and track vehicles
· Driverless vehicles: With AI capabilities can be used in autonomous cars and planes
Energy
· Monitoring power plants:Monitor and control power plants and renewable energy sources
· Wind turbines: Can be embedded in wind turbines in areas with extreme temperatures
Healthcare
Medical apparatuses: Can be embedded in medical apparatuses that need to meet aseptic and hygiene standards
Other applications
· Digital signage: Using for digital signage
· Robots: Using for robots
· Video surveillance: Using for video surveillance
