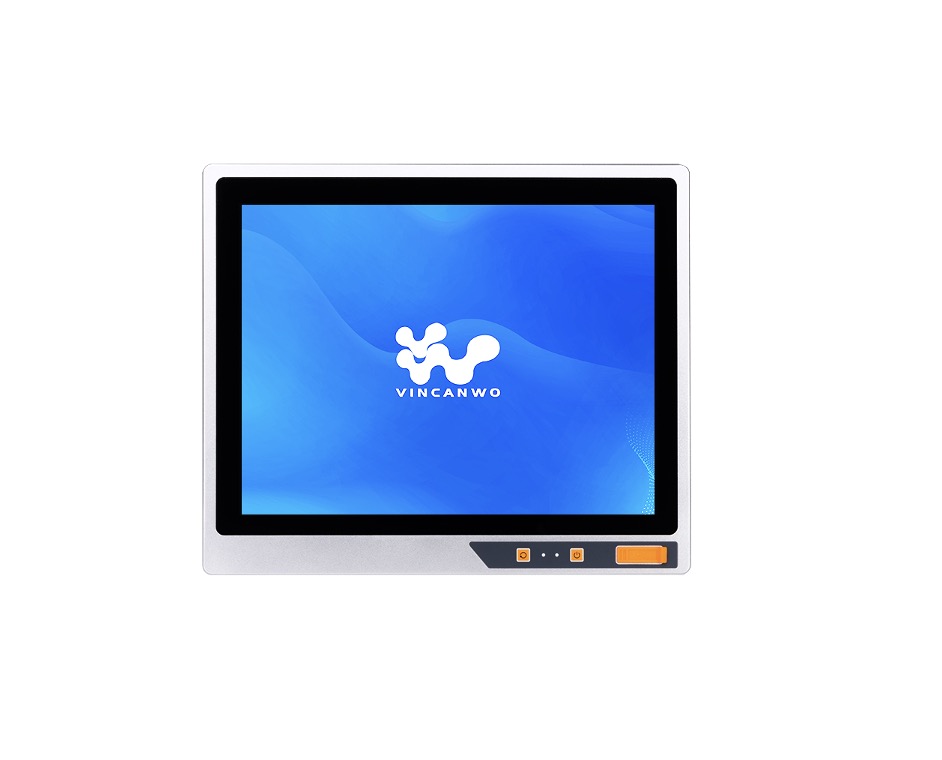

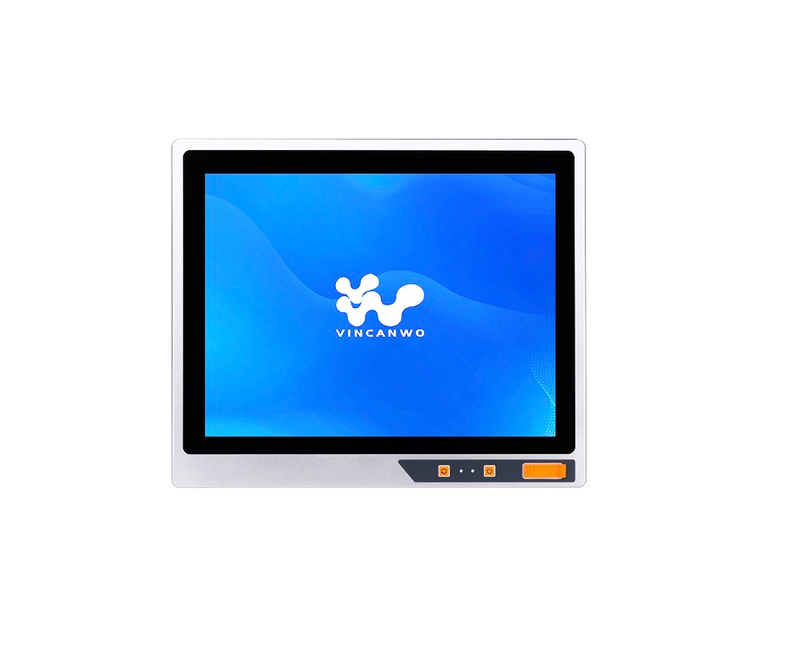

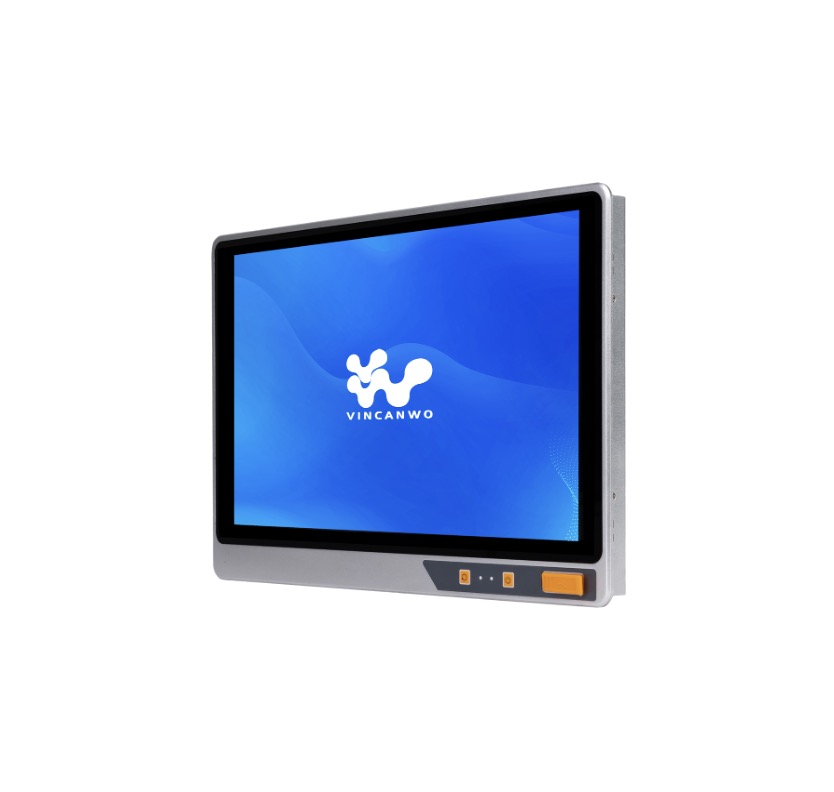

SKU | 15.6” Widescreen Advanced Industrial Computer | VFACE-156 |
Screen Size | 15.6inch |
Resolution | 1920*1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/m2 |
Contrast Ratio | 3000:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111 |

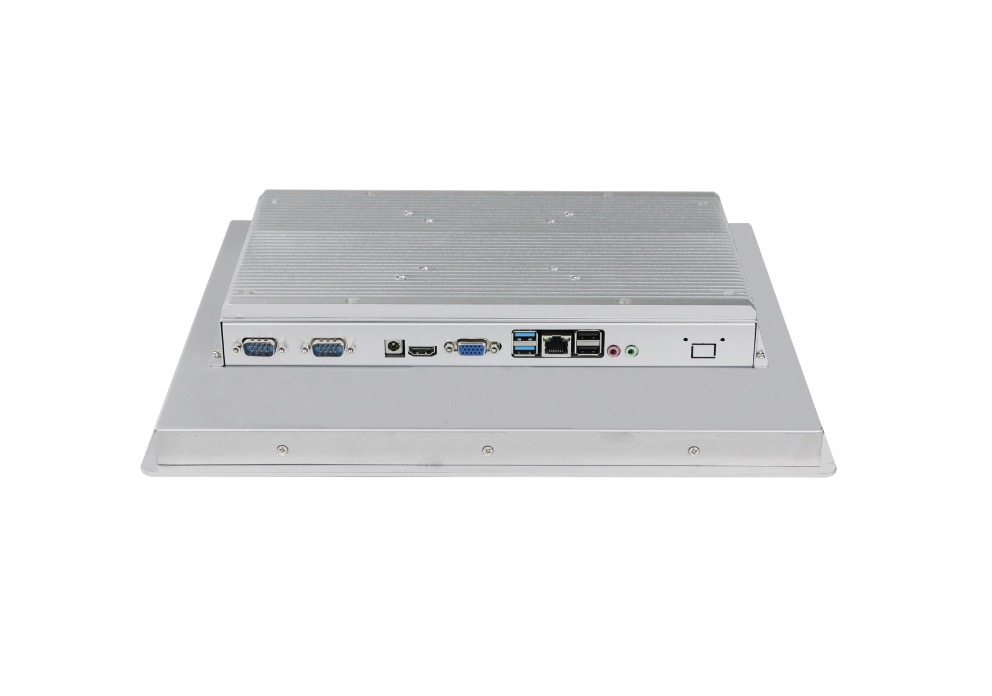

COM | 2 *RS232 (COM2 optional RS485) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

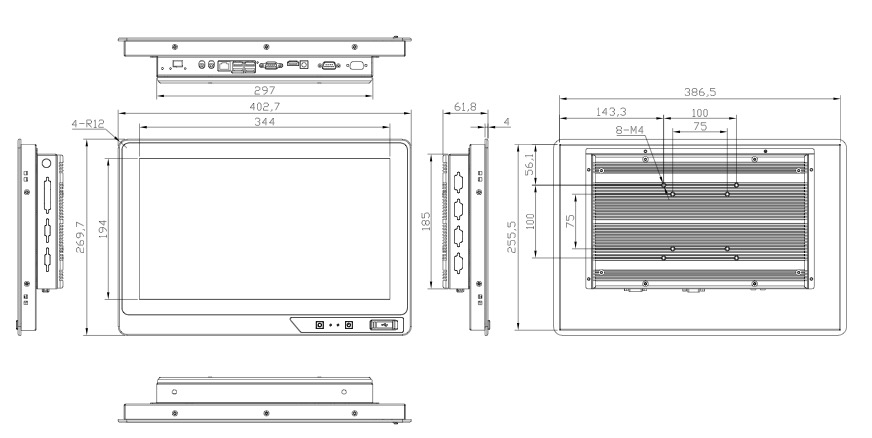

Dimensions (mm) | 402.7*269.7*61.8 |
Mounting Hole Size (mm) | 389*258 |
Gross weight (kg) | 4.84 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage
· Better visibility and more screen real estate.
· Enhanced productivity with the ability to view multiple windows simultaneously.
· Improved multimedia experience for watching videos and gaming.
· Enhanced Multitasking.
· Improved Focus and Concentration.
· Great viewing experience, bigger viewing angle, stability in brightness, contrast, and colors.
· Easier Collaboration.
· Reduced Cable Clutter.
>Product Applications
· Banking.
· Education.
· Industries.
· Entertainments.
· Hospitals.
· Data processing.
