Rackmount Industrial Computers | VOPC X86 Series
VINCANWO
| Availability: | |
|---|---|
| Quantity: | |
| SKU | VOPC-15 | VOPC-17 | VOPC-19 | VOPC-156 | VOPC-185 | VOPC-215 | VOPC-236 | VOPC-27 | VOPC-32 |
| Screen Size | 15" | 17" | 19" | 15.6" | 18.5" | 21.5" | 23.6" | 27" | 32" |
| Resolution | 1024 *768 | 1280 * 1024 | 1280 * 1024 | 1366 *768 | 1920 * 1080 | 1920 * 1080 | 1920 * 1080 | 1920 * 1080 | 1920 * 1080 |
| Viewing Angle | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 | 45/45/20/40 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 |
| Brightness | 350 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 220 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 500:1 | 1000:1 | 3000:1 | 3000:1 | 1000:1 | 1200:1 |
| Touchscreen | Capacitive | ||||||||
| Controller | USB interface | ||||||||
| Durability | ≥5M times | ||||||||
| Processor | Intel® Processors | ||||||||
| Memory | 4G/8G/16G/32G | ||||||||
| Storage | under 5th Gen.: 1* mSATA+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） up to 6th Gen.:1* M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB) | ||||||||
| Network | 1 * RTL8111 | 2 * RTL8111 | 1 * RTL8111 | 2 * RTL8111 | |||||

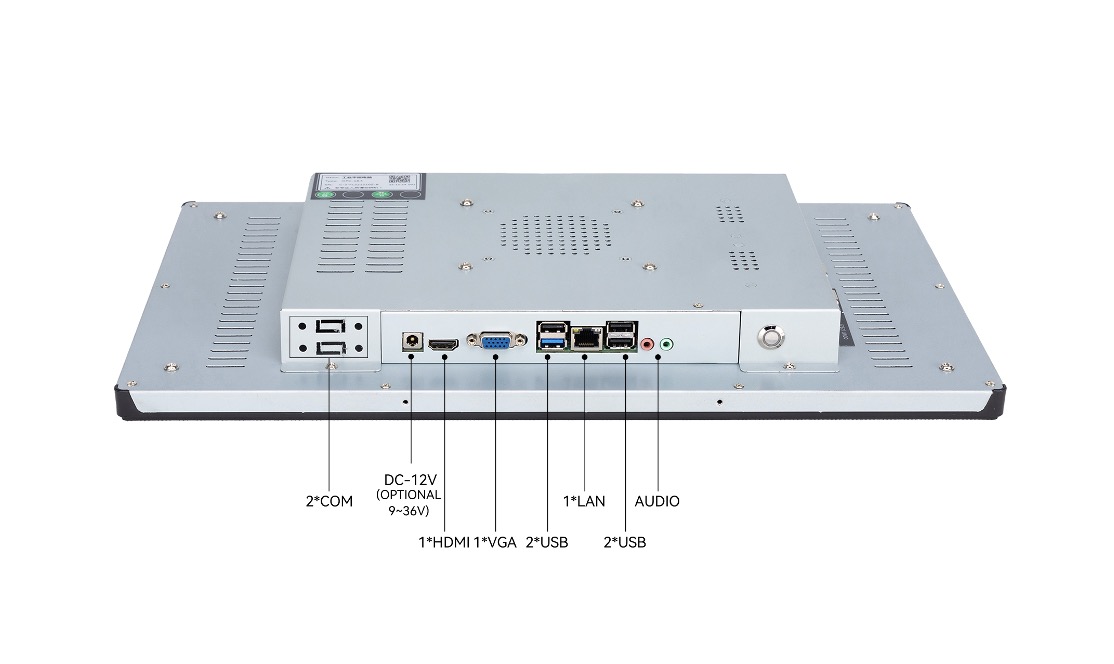

| COM | 2 * RS232 , (COM2 option RS485) | 2 * RS232 , (COM2 option RS485) expansion to 6COM | 2 * RS232 , (COM2 option RS485) | 2 * RS232 , (COM2 option RS485) expansion to 6COM | |||||
| USB | 4 * USB | ||||||||
| Display | 1 * HDMI，1 *VGA | ||||||||
| Expansion Slots | under 5th Gen.:1 * Mini PCIE Wifi&BT or 4G LTE | up to 6th Gen.:1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) | under 5th Gen.:1 * Mini PCIE Wifi&BT or 4G LTE | up to 6th Gen.:1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) | |||||
| Operating System | Windows/Linux | ||||||||
| Dimensions (mm) | 358.4 *286.7 *49.5 | 384.1 *316.2 *50.7 | 429*356.5 *49.2 | 392*242*49.5 | 457.2*281.7*49.6 | 533.6*320.9*51.3 | 572.1*345.6*51.3 | 572.1*345.6*51.3 | 770.7*465.6*57.2 |
| Mounting Hole Size (mm) | 349.4*277.2 | 381*312.9 | 425.5*350.5 | 387.2*237.2 | 453.4*277.5 | 527.9*314.9 | 567.6*341.2 | 567.6*341.2 | 765.6*460.3 |
| Gross weight (kg) | 3.70 | 5.60 | 6.20 | 3.70 | 4.10 | 5.70 | 6.00 | 9.20 | 12.50 |
| Mounting options | Embedded / Wall mount / Desktop | ||||||||
| Operating Temperature | -30 ~ +70°C | ||||||||
| Storage Temperature | -40 ~ +80°C | ||||||||
| Storage Humidity | 5 ~ 95% | ||||||||
| *Non-condensing | |||||||||
| Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) | ||||||||
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable | ||||||||
>Product Advantages:
· Space saving: Stored in one location, saving space on desks.
· Improved cooling: Designed to keep equipment cool, even in harsh environments.
· Better power management: Provide more consistent power to multiple PCs.
· Security: Securely anchored to the enclosure, which protects them from damage.
· Organized workspace: Keep cabling organized, so you only need to run a few cables to the individual desks.
· Scalability: Tailored with scalability in performance, storage, and memory capacity.
· Connectivity: Communicate with numerous networks and peripheral devices simultaneously.
· Remote manageability: Built-in systems that enable remote manageability.
· Fault detection: LED indicators and alarm notification for system fault detection.
Our Vincanwo brand VOPC X86 Rackmount Industrial Computers are ideal for industries that rely on large-scale data management and processing.
>Product Application
Thoughtfully designed for advanced data processing and longevity, Our Vincanwo brand VOPC X86 Rackmount Industrial Computers offer a flexible feature set. Ready to support the edge server needs, our VOPC X86 Rackmount Industrial Computers are an ideal choice for industrial automation, artificial intelligence, machine learning, data acquisition or content caching applications.
· Manufacturing: Manage production lines, conveyor belts, and industrial robots
· Oil and gas: Monitor pressure levels, valves, and pipelines
· Power generation: Control electrical grids, generators, and turbines
· Water treatment: Manage chemical dosing, filters, and pumps
· Aerospace: Run simulations for aircraft testing and design
· Automotive: Perform crash simulations and vehicle development
· Biomedical research: Analyze large datasets for drug discovery and genetic research
· Financial modeling: Run risk assessments and complex financial simulations
· Data centers: Provide the backbone for large-scale data storage and cloud computing
· Telecom networks: Run firewalls, routers, and network switches
· Broadcast media: Process and edit high-resolution audio and video content
· Video surveillance: Manage large systems of security cameras and record footage
>Warranty
All our products come standard with 3 years warranty.
We also offer up to 5 years extension of our product warranty at the time of sale.
Warranty starts from the time the product is shipped to you from Vincanwo Group. You do not need to register or save the receipt as long as the unit still has the serial number we can look up the warranty term and start date.
Vincanwo Group wants to be your preferred business partner. We will gladly work to help you with all sorts of computer related issues you encounter via our free technical support. If an RMA is needed, we understand the importance of getting you an accurate and long-lasting fix, and getting back up and running quickly.
We keep a wide array of parts on hand for repairs, but sometimes parts will need to be ordered and this can cause delay in repairs.
Vincanwo Group Warranty Includes:
· Repair of the system, Including labor
· Components needing replacement
· If necessary, re-installation of original OS
· Return shipment to customer
Events NOT Covered by Standard Warranty Include:
· Physical damage
· Damage caused by unauthorized repairs
· Use of product outside of its approved environment
· Exposure to direct sunlight, unless explicitly approved
· Inbound Shipping
· Software
>FAQ
How to require a quotation ?
Please send details of your requirement to us by E-mail, we will send quotation to you within 1 working day.
How to require a free sample?
Please send your sample requirement to us, and we will check and confirmed to you within 2 days. Normally we refund sample once the order quantities are in 100pcs.
What is your MOQ ?
NO MOQ request, even with your own specifications.
What is your order Lead-time?
Order Quantity less than 100pcs, and the production lead-time is 3days, surely we have great capacity to handle the large order quantities. For example: 1x40H container loads 8,000 - 10,000pcs and our production lead time normally is 15days after order deposit.
What is your export product package ? How to transport ?
Our product export is single pack. For oversea customers, we will shipping with the durable packages or pallets, or transport by train, by sea or by air, as well by DHL, UPS, etc.
What is your payment term ?
With different price & quantity of contract, We accept different payment term as below:
1, TT for samples (Quantity less than 100units).
2, 30% T/T in advance, balance T/T before shipment (Quantity less than 1000units).
3, 20% T/T in advance, balance O/A 30-60days (Quantity 1000-8000units).
What is your price term ? How to loading cargoes?
We can do price term as below:
1, EXW factory, including VAT tax, Loading cargoes in our factory
2, FOB Shenzhen or Guangzhou Port, and container loading cargoes in our factory.
3, CIF Port of delivery.
4, Door-to-door shpment.
