SKU | 12.1” Advanced Industrial Computer | VFACE-121 |
Screen Size | 12.1inch |
Resolution | 1024*768 |
Viewing Angle | 89/89/89/89 |
Brightness | 500 cd/m2 |
Contrast Ratio | 1200:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

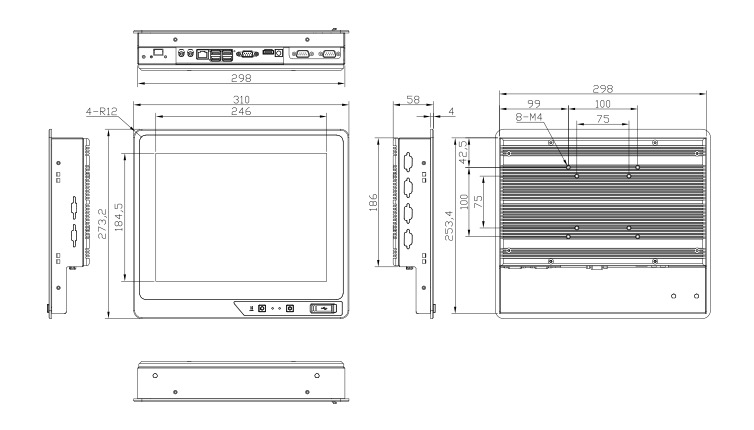

Dimensions (mm) | 310*273.1*58 |
Mounting Hole Size (mm) | 301*256 |
Gross weight (kg) | 3.52 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage
· Durability:
Designed to withstand shocks, vibrations, dust, moisture, and extreme temperatures.
· Reliability:
Built with high-quality components and are less likely to fail or malfunction.
· Long lifespan:
Built to last longer than standard computers.
· Easy maintenance:
Designed to be easily serviceable, with easy-to-access components.
· Clear display:
High-bright screens with anti-reflective coating for sunlight readability.
· Cost-effectiveness:
A lower total cost of ownership due to their durability, long lifespan, and repairability.
· Compatibility:
Using with specialized software, such as in engineering or scientific applications.
Our Vincanwo brand 12.1” Advanced Industrial Computer | VFACE-121 is specially designed to operate reliably in harsh environmental conditions. Specifically, they are built to withstand conditions in which standard consumer model PCs would either suffer performance loss or failure.
>Product Applications
Manufacturing
· Production line automation: Control robots, monitor production lines, and collect data for process optimization
· Image archiving: Store images from production lines
· Object detection: Detect and recognize objects on production lines
· Flaw detection: Inspect surfaces for flaws
Transportation
· Advanced driver assistance: Use computers to assist drivers
· Traffic monitoring: Use computers to monitor traffic
· Transportation infrastructure: Use computers to manage transportation infrastructure
Military
· Base station management: Monitor and manage base stations
· Field deployment coordination: Coordinate field deployments
· Navigation: Use computers for navigation
· Flight line maintenance: Facilitate flight line maintenance
Other applications Smart factory systems, Machine learning, Computer vision, Unmanned aerial and underwater vehicles, and Electronic toll collection.
Our Vincanwo brand 12.1” Advanced Industrial Computer | VFACE-121 is often labeled with an IP rating, which indicates how well they can withstand dirt, water, and other particles.
