All In One Industrial Fanless Touchscreen Computers | TPRO X86 Series
VINCANWO
| Availability: | |
|---|---|
| Quantity: | |
| SKU | TPRO-7 | TPRO-8 | TPRO-101 | TPRO-133 | TPRO-104 | TPRO-121 | TPRO-15 | TPRO-17 | TPRO-19 | TPRO-156 |

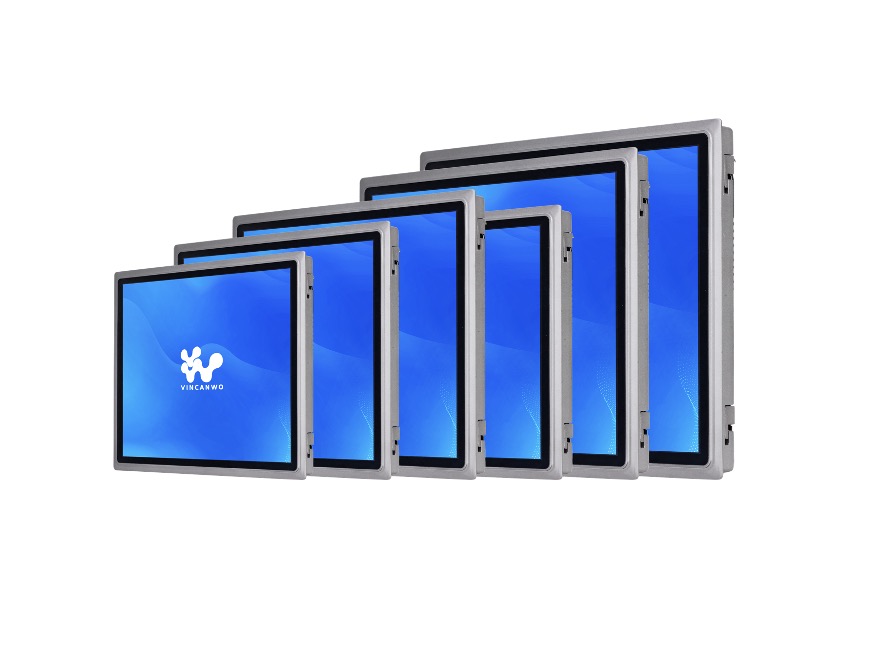

| Screen Size | 7" | 8" | 10.1" | 13.3" | 10.4" | 12.1" | 15" | 17" | 19" | 15.6" |
| Resolution | 1024 * 600 | 1024 *768 | 1280 *800 | 1920 * 1080 | 1024 *768 | 1024 *768 | 1024 *768 | 1280 * 1024 | 1280 * 1024 | 1920 * 1080 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 | 89/89/89/89 |
| Brightness | 300 cd/㎡ | 300 cd/㎡ | 400 cd/㎡ | 300 cd/㎡ | 500 cd/㎡ | 500 cd/㎡ | 350 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ |
| Contrast Ratio | 500:1 | 1000:1 | 800:1 | 800:1 | 900:1 | 1200:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Touchscreen | Capacitive | Capacitive or Resistive | ||||||||
| Controller | USB interface | |||||||||
| Durability | ≥5M times | Capacitive: ≥5M times | Resistive: ≥100,000 times | ||||||||
| Processor | Intel® Processors | |||||||||
| Memory | 4G/8G/16G/32G | |||||||||
| Storage | under 3rd Gen.: 1*MSATA up to 4th Gen.: 1*M2 | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) | up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） | ||||||||
| Network | 1 * RTL8111 | 2 * RTL8111 | 1 * RTL8111 | 2 * RTL8111 | 1 * RTL8111 | 2 * RTL8111 | |||||

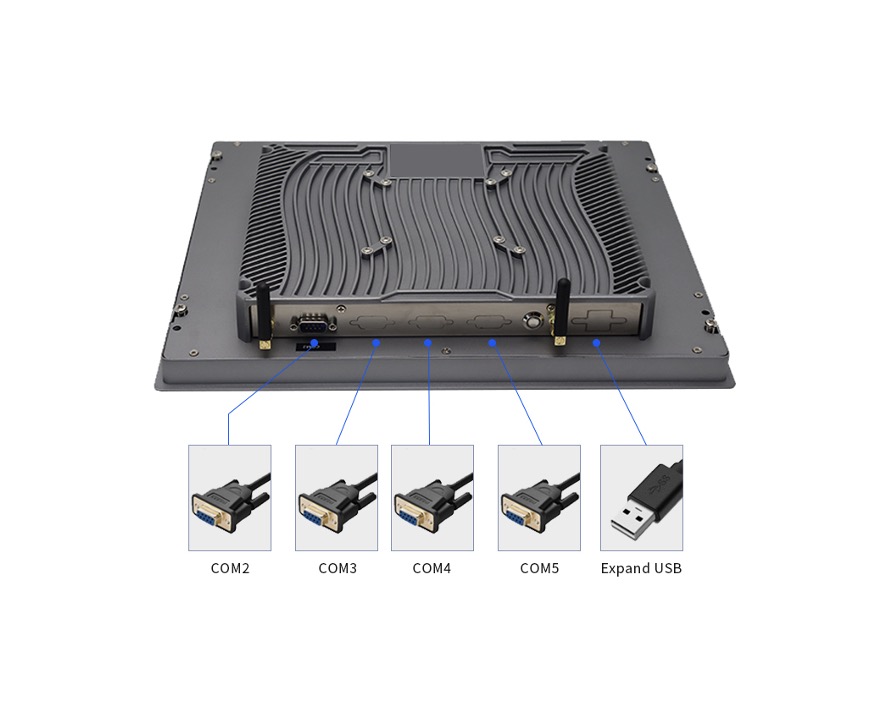

| COM | 2 * RS232 , (COM2 option RS485) | 2 * RS232 , (COM2 option RS485) expansion to 5COM | 2 * RS232, (COM2 option RS485) | 2 * RS232, (COM2 option RS485) expansion to 5COM | ||||||
| USB | 2 * USB3 . 0+ 2 * USB2 .0 | 2 * USB3 .0 | 2 * USB3 . 0+2 * USB2 .0 | 4 * USB | |||||||

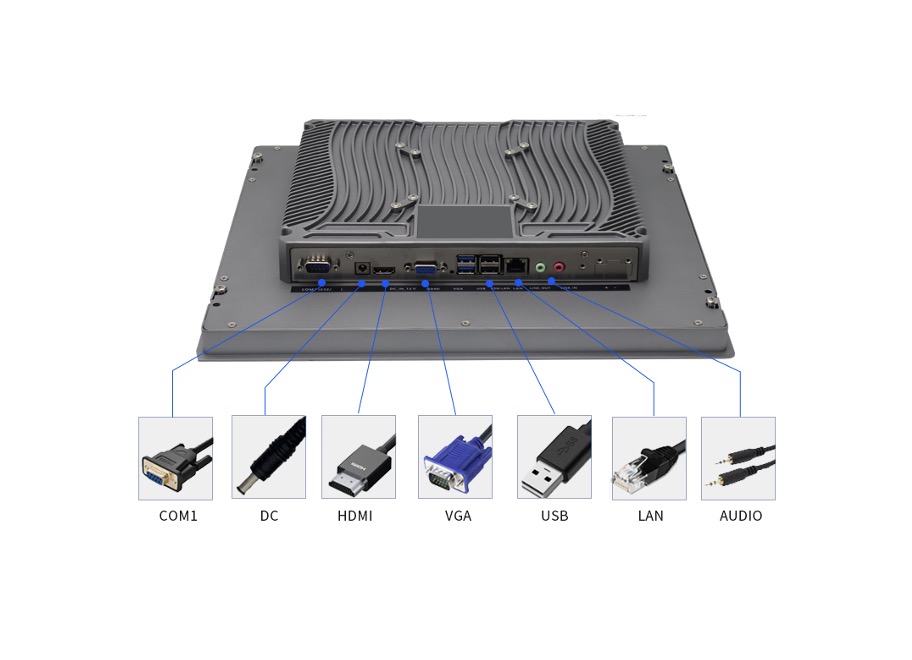

| Display | 1 * HDMI, 1 *VGA | |||||||||
| Expansion Slots | 1 * Mini PCIE Wifi&BT or 4G LTE | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE | up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) | |||||||
| Operating System | Windows/Linux | |||||||||
| Dimensions (mm) | 194 * 129.9 *52 | 234 * 187 *52 | 266. 1 * 181.9 *52 | 337 *208.6 *52 | 277.3 *224.5 *55. 8 | 311.3 *255.3 *55. 6 | 367.3 *291.3 *58.8 | 401.6 *338.2 *58.6 | 445 *374.8 *58. 6 | 412 *261 *58. 6 |
| Mounting Hole Size (mm) | 188* 124 | 228* 181 | 260* 176 | 331 .5*203 | External embedded: 270 * 218 | External embedded: 305 *248 | External embedded: 359 *283 | External embedded: 394 *324 | External embedded: 439 *359 | External embedded: 404 *253 |
| Internal embedded: 266 * 213 | Internal embedded: 298.8 *242.8 | Internal embedded: 350 *274 | Internal embedded: 383.8 *320.8 | Internal embedded: 423.8 *353.8 | Internal embedded: 397.5 *241.8 | |||||
| Gross weight (kg) | 1.80 | 2.40 | 3.00 | 3.50 | 2.75 | 3.30 | 3.75 | 5.65 | 5.70 | 3.80 |
| Mounting options | Embedded / Wall mount / Desktop | |||||||||
| Operating Temperature | -30 ~ +70°C | |||||||||
| Storage Temperature | -40 ~ +80°C | |||||||||
| Storage Humidity (Non-condensing) | 5 ~ 95% | |||||||||
| Power Input | 1*12VDC (option 9~36VDC Wide-range Power Input) | |||||||||
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable | |||||||||
>Product Advantages:
· Ease of installation: Integrated with a touchscreen and do not require external cables. This makes them a simple solution for many applications.
· Mounting options: Mounted on walls, desks, swing arms, or control consoles.
· Clean appearance: Mounted flush to a wall, which can remove clutter from your work area.
· Hardware integration: Mounted into specific hardware, which is useful for OEM/ODM projects.
· Efficiency: More efficient than traditional computers.
· Space-saving: Save space.
TPRO X86 All In One Industrial Fanless Touchscreen Computers Series are used for calculations, industrial applications, and as control systems. Help to improve communication, coordination, and data tracking and analysis.
>Product Application
TPRO X86 All In One Industrial Fanless Touchscreen Computers Series are used in a variety of applications, including manufacturing, logistics, and point-of-sale (POS) systems. Designed to be durable and withstand harsh environments.
· Manufacturing: Used in production areas, factory floors, and dusty manufacturing environments.
· Logistics: For logistics operations.
· POS systems: Used for POS and kiosk applications.
· Building automation: For building automation.
· Flight control: Used to process data and provide information to pilots.
· Aircraft maintenance: Used to track maintenance schedules and history.
· Communication: Used to manage communications between aircraft and ground crews.
>Warranty
All our products come standard with 3 years warranty.
We also offer up to 5 years extension of our product warranty at the time of sale.
Warranty starts from the time the product is shipped to you from Vincanwo Group. You do not need to register or save the receipt as long as the unit still has the serial number we can look up the warranty term and start date.
Vincanwo Group wants to be your preferred business partner. We will gladly work to help you with all sorts of computer related issues you encounter via our free technical support. If an RMA is needed, we understand the importance of getting you an accurate and long-lasting fix, and getting back up and running quickly.
We keep a wide array of parts on hand for repairs, but sometimes parts will need to be ordered and this can cause delay in repairs.
Vincanwo Group Warranty Includes:
· Repair of the system, Including labor
· Components needing replacement
· If necessary, re-installation of original OS
· Return shipment to customer
Events NOT Covered by Standard Warranty Include:
· Physical damage
· Damage caused by unauthorized repairs
· Use of product outside of its approved environment
· Exposure to direct sunlight, unless explicitly approved
· Inbound Shipping
· Software
>FAQ
How to require a quotation ?
Please send details of your requirement to us by E-mail, we will send quotation to you within 1 working day.
How to require a free sample?
Please send your sample requirement to us, and we will check and confirmed to you within 2 days. Normally we refund sample once the order quantities are in 100pcs.
What is your MOQ ?
NO MOQ request, even with your own specifications.
What is your order Lead-time?
Order Quantity less than 100pcs, and the production lead-time is 3days, surely we have great capacity to handle the large order quantities. For example: 1x40H container loads 8,000 - 10,000pcs and our production lead time normally is 15days after order deposit.
What is your export product package ? How to transport ?
Our product export is single pack. For oversea customers, we will shipping with the durable packages or pallets, or transport by train, by sea or by air, as well by DHL, UPS, etc.
What is your payment term ?
With different price & quantity of contract, We accept different payment term as below:
1, TT for samples (Quantity less than 100units).
2, 30% T/T in advance, balance T/T before shipment (Quantity less than 1000units).
3, 20% T/T in advance, balance O/A 30-60days (Quantity 1000-8000units).
What is your price term ? How to loading cargoes?
We can do price term as below:
1, EXW factory, including VAT tax, Loading cargoes in our factory
2, FOB Shenzhen or Guangzhou Port, and container loading cargoes in our factory.
3, CIF Port of delivery.
4, Door-to-door shpment.
