SKU | 21.5” Advanced Industrial Computer | VFACE-215 |
Screen Size | 21.5inch |
Resolution | 1920*1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/m2 |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |

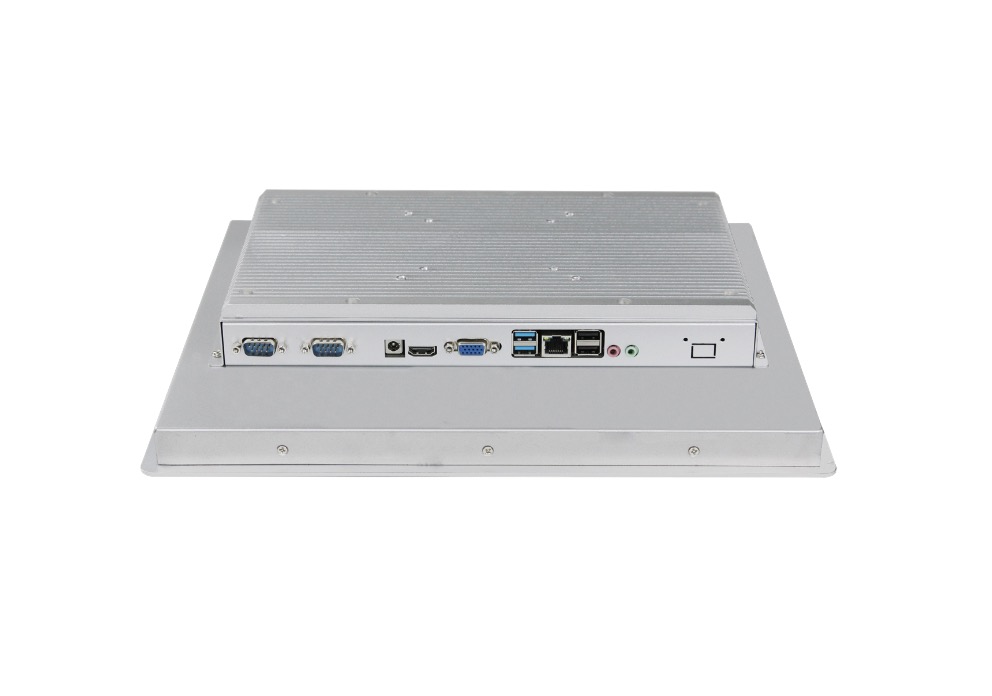

Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

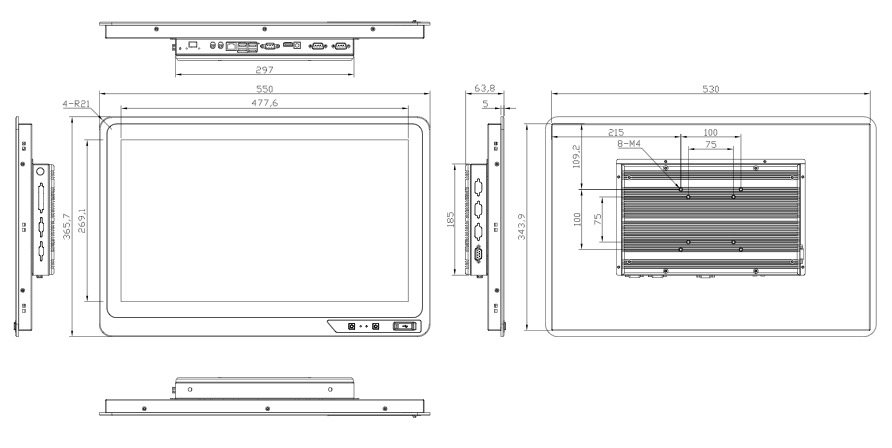

Dimensions (mm) | 550*365.7*63.8 |
Mounting Hole Size (mm) | 533*347 |
Gross weight (kg) | 8.08 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage
· Durability:
Designed to withstand harsh environments, including extreme temperatures, vibrations, dust, and moisture.
· Ruggedness:
Built to be robust and protect against shock, pressure, and other physical damage.
· Flexibility:
Can be mounted on walls, machinery, or with a mobile stand.
· Accessibility:
Easy to access for maintenance, repairs, or upgrades.
· Cost-effectiveness: Don't require an additional enclosure or panel, which reduces material and labor costs.
· Reliability:
Designed to operate reliably even in dirty or wet conditions.
· Long life:
Designed to support software and hardware upgrades, so their lifecycle is much longer than a traditional computer.
· Versatility:
Can be used in a wide range of industrial environments, including manufacturing, packaging inspection, quality control, asset tracking, and more.
>Product Applications
· Industrial automation:
Using for machine control, process control, and data visualization
· Monitoring:
Using for public security monitoring, safety monitoring in mining, and process monitoring in chemical plants
· Control:
Using for access control, automated traffic control, and supervisory control of machines
· Signage:
For digital signage and public displays
· POS systems:
Using in retail and hospitality sectors for point-of-sale systems
· Gaming:
Using in gaming machines
Features
· Durable:
Designed to withstand extreme temperatures, vibrations, shocks, and liquids
· Scalable:
Can be scaled up in power and function, and can be integrated with other platforms
· Flexible:
Can be mounted in a variety of ways, including on walls
· Customizable:
Customized with different CPUs and display sizes
· Energy efficient:
Designed to be low power consumption
