SKU | VFACE-17 |
Screen Size | 17inch |
Resolution | 1280*1024 |
Viewing Angle | 85/85/80/80 |
Brightness | 250 cd/m2 |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 2 *RTL8111 |

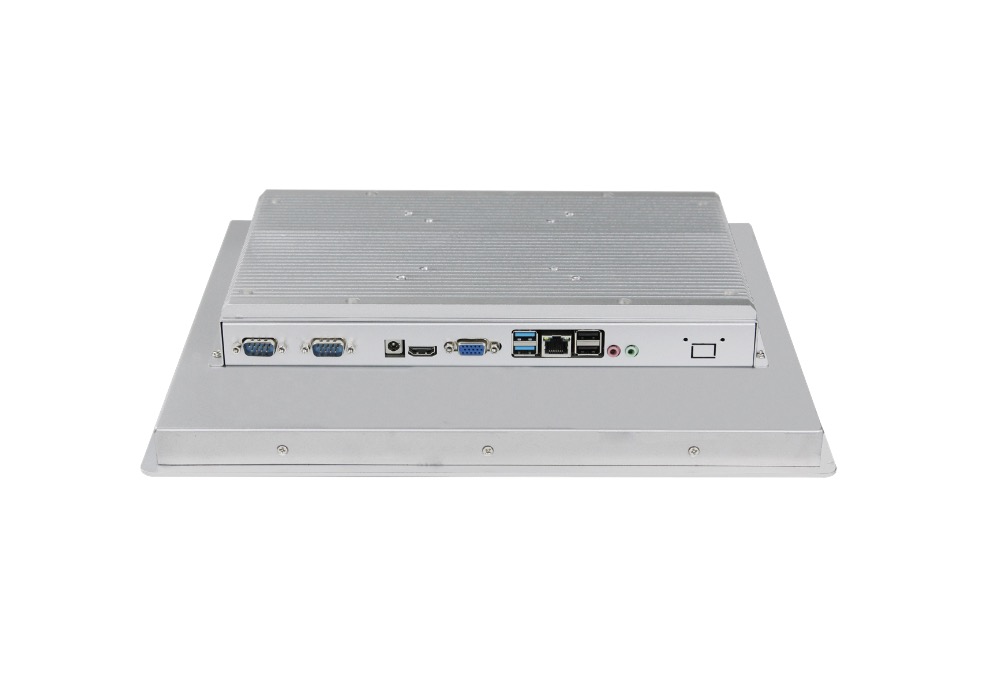

COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

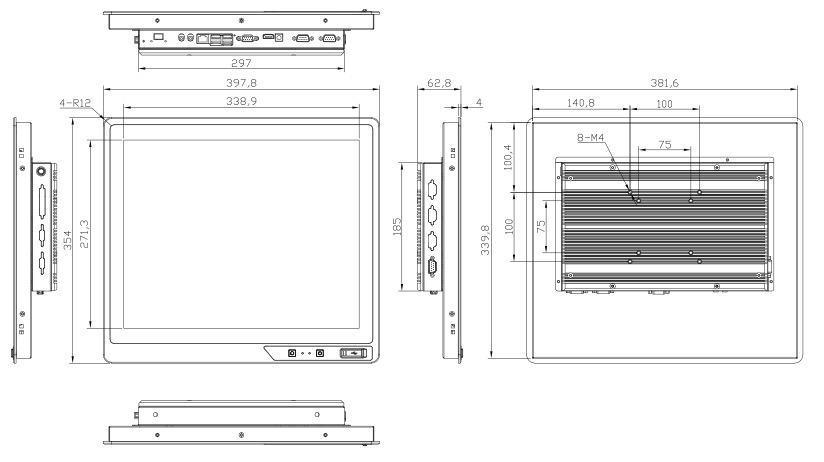

Dimensions (mm) | 397.8*354*62.4 |
Mounting Hole Size (mm) | 384*343 |
Gross weight (kg) | 6.00 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Advantages:
The VFACE-17 offers the most advantages for industrial applications:
Rugged and durable design: The VFACE-17 is built to withstand harsh industrial environments, with a rugged construction that can withstand dust, moisture, and extreme temperatures.
High-performance processor: The VFACE-17 is equipped with a powerful processor that can handle demanding industrial applications with ease, ensuring smooth and efficient operation.
Ample storage space: The VFACE-17 comes with ample storage space for storing large amounts of data and applications, allowing for efficient data management and processing.
Connectivity options: The VFACE-17 offers a variety of connectivity options, including USB, Ethernet, and serial ports, making it easy to connect to other devices and systems in an industrial setting.
Compact size: Despite its robust features, the VFACE-17 has a compact size that makes it easy to integrate into existing industrial systems without taking up too much space.
Versatile mounting options: The VFACE-17 offers versatile mounting options, allowing it to be mounted in various ways to suit different industrial applications and environments.
Overall, the VFACE-17 is a reliable and efficient industrial computer that offers the performance, durability, and connectivity needed for demanding industrial tasks.
>Applications:
The VFACE-17 industrial computer is well-suited for a variety of industrial applications, including:
Industrial automation: The VFACE-17 can be used for controlling and monitoring automated industrial processes, such as assembly lines, manufacturing equipment, and robotic systems.
Machine vision systems: The VFACE-17 can be integrated into machine vision systems for quality control, inspection, and measurement tasks in industrial settings.
SCADA systems: The VFACE-17 is ideal for supervisory control and data acquisition (SCADA) systems used in industrial facilities to monitor and control processes in real-time.
HMI (Human Machine Interface) applications: The VFACE-17 can serve as an interface between operators and industrial machinery, allowing for easy monitoring and control of processes.
Industrial IoT (Internet of Things) applications: The VFACE-17 can be used in industrial IoT applications to collect, analyze, and transmit data from sensors and devices in real-time.
Industrial control systems: The VFACE-17 can be used for controlling various industrial equipment and systems, such as pumps, motors, valves, and actuators.
Overall, the VFACE-17 is a versatile industrial computer that can be used in a wide range of industrial applications that require reliable performance, durability, and connectivity.
