SKU | 10.4” Advanced Industrial Computer | VFACE-104 |
Screen Size | 10.4inch |
Resolution | 1024*768 |
Viewing Angle | 89/89/89/89 |
Brightness | 500 cd/m2 |
Contrast Ratio | 900:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

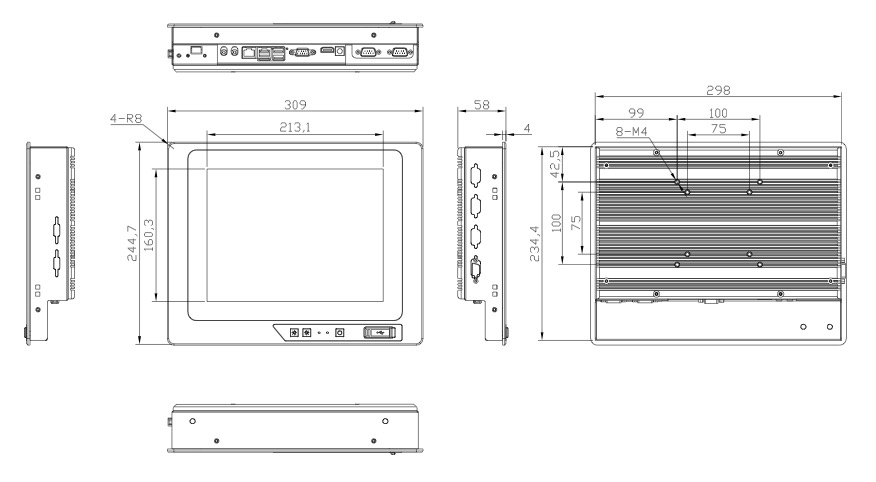

Dimensions (mm) | 309*244.7*58 |
Mounting Hole Size (mm) | 301*237 |
Gross weight (kg) | 3.54 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Advantages
Our Vincanwo Group brand 10.4” Advanced Industrial Computer | VFACE-104 technology can help companies build custom systems, access new technologies, and reduce development costs.
Access to new technology:
Gives companies access to the latest technologies.
Reduced development costs:
Reduce the risk and development costs for manufacturers.
Faster production:
Help manufacturers produce new machines faster.
Increased innovation:
Increase innovation in combining computer designs and parts.
Custom branding:
Include custom branding, imaging, and BIOS customization.
Durability:
Designed to operate continuously in adverse environments.
Reliability:
Designed to run 24/7, even in harsh environments.
Cost-effectiveness:
A long supply period, which can lead to cost savings over time.
Extended lifespan:
Function effectively for a much longer period than standard PCs.
Reduced maintenance needs:
Reduce need for maintenance and repairs.
High configurability:
Customize to suit the application's specification need.
Our Vincanwo Group brand 10.4” Advanced Industrial Computer | VFACE-104 can perform many different tasks, including factory automation, remote data collection, and surveillance. And perform many different tasks, including factory automation, remote data collection, and surveillance. ICOP's systems are highly configurable to suit your individual project needs. In addition to reliable hardware, we can provide OEM services such as custom branding, imaging, and BIOS customization.
>Applications
Our Vincanwo Group brand 10.4” Advanced Industrial Computer | VFACE-104 is used in a variety of applications, including process control, data acquisition, and monitoring. Often used in factories, production equipment, and other industrial equipment.
Process control:
Control and monitor industrial processes, such as temperature and pressure
Data acquisition:
Acquire data for monitoring and controlling systems and machines
Control systems:
Control plant floor systems and machines
Flight control:
Process data and provide information to pilots
Aircraft maintenance:
Track maintenance schedules and history
Communication:
Manage communications between aircraft and ground crews
Our Vincanwo Group brand 10.4” Advanced Industrial Computer | VFACE-104 is all generally designed to control, operate and monitor systems and machines on the plant floor; and to provide a controlled environment for the installed electronics to survive the typically rigorous conditions of the plant floor for a longer life cycle.
