17.3” Advanced Industrial Computer | VFACE-173
VINCANWO
Availability: | |
---|---|
Quantity: | |
SKU | 17.3” Advanced Industrial Computer | VFACE-173 |
Screen Size | 17.3inch |
Resolution | 1920*1080 |
Viewing Angle | 80/80/60/80 |
Brightness | 400 cd/m2 |
Contrast Ratio | 600:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB) |
Network | 1 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |
USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

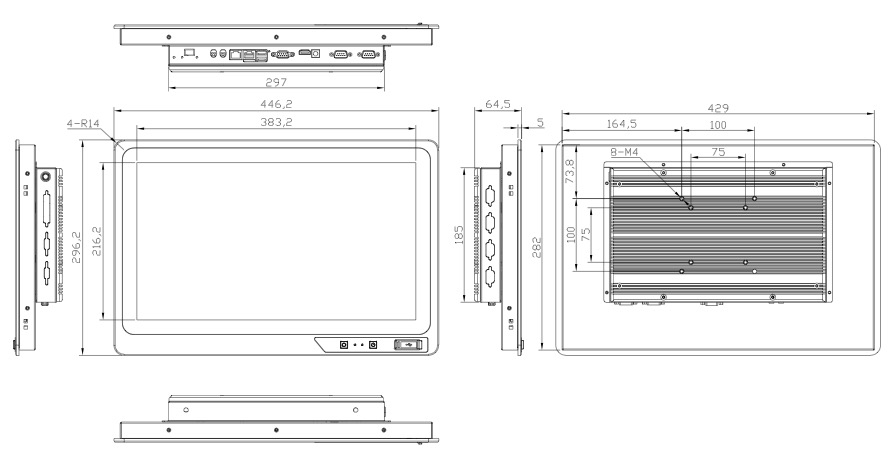

Dimensions (mm) | 446.2*296.2*64.5 |
Mounting Hole Size (mm) | 432*285 |
Gross weight (kg) | 5.68 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage
· Protection from dust and debris:
Resistant to dust and debris because they are passively cooled and have no vents.
· Protection from water:
IP65 rated front panel bezel to prevent water from entering the system.
· Protection from shock and vibration:
Withstand shock and vibration.
· Protection from harsh environments:
Withstand harsh environments, such as sandstorms, blizzards, and underwater.
· Protection from electromagnetic interference:
Withstand electromagnetic interference.
· Reduced maintenance:
Withstand harsh environments for years without maintenance.
· Reduced risk of failure:
Have fewer moving parts, which reduces the risk of failure.
· Can handle extended operating temperatures:
Handle extended operating temperatures in non-ventilated spaces.
>Product Applications
· Monitoring and surveillance:
Using for monitoring and surveillance in a variety of settings, including on-shore and off-shore.
· Process control:
Using for process control in industrial settings, such as factories.
· Navigation:
Using for navigation in maritime settings, such as shipbuilding, container handling, and transshipment.
· Data acquisition:
Using to acquire data from sensors and other devices.
· Outdoor applications:
With high-bright displays can be used in outdoor applications, such as outdoor kiosks.
· Space-constrained environments:
Using in small spaces, such as cabinets, drawers, or underneath tables.
Features
· Durability:
Designed to be durable and withstand harsh environments.
· Ingress-proof:
Designed to prevent dust, debris, and water from damaging the device.
· Compact design:
Compact and easily mounted to walls or ceilings.
