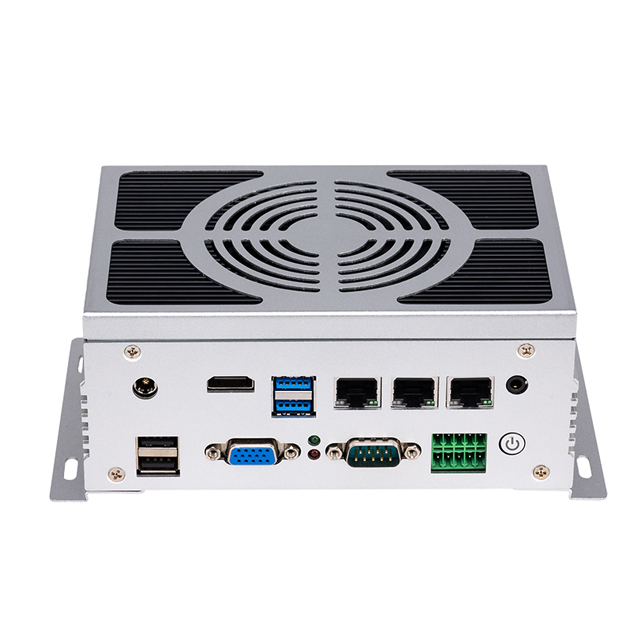

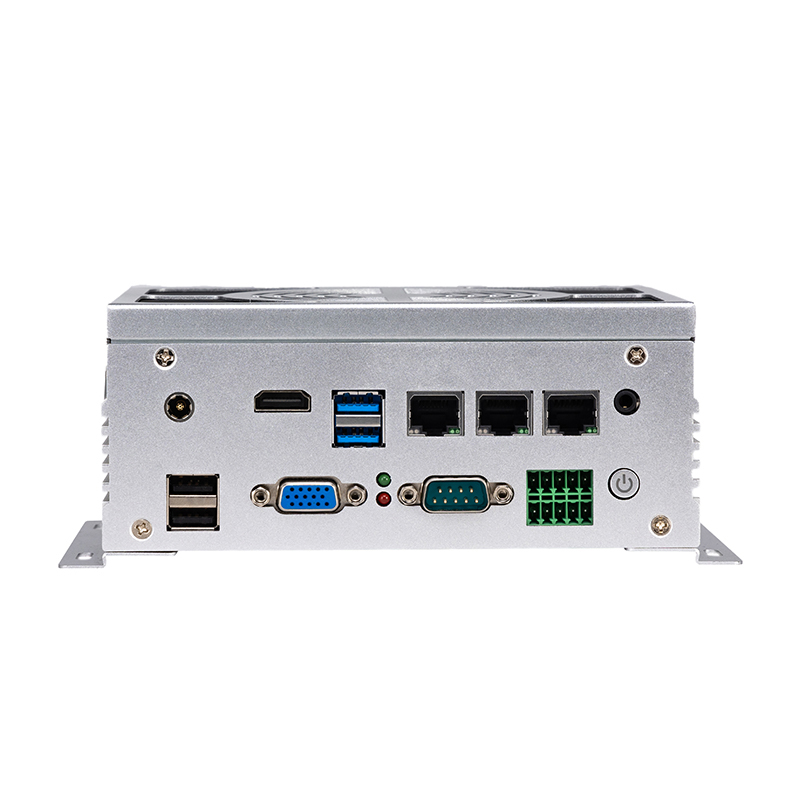

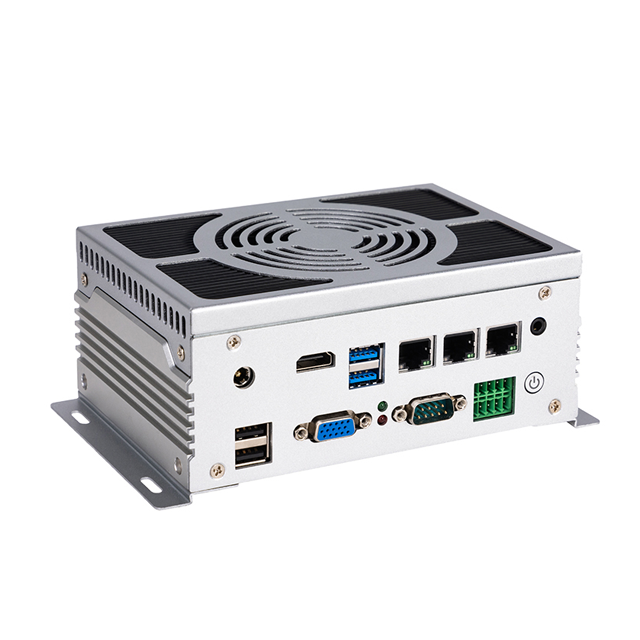

This high-performance PC is encased in a housing crafted from a combination of aluminum and steel materials, ensuring unparalleled strength and resilience. These materials serve as a protective shield, safeguarding the internal components from external factors such as impacts, vibrations, and harsh environmental conditions.
3 Different Expansions
A range of configurations, ensuring that you can find the perfect computer hardware for your specific application. Stands out with its extensive expansion capabilities, boasting up to 4x PCIe Slots. You can choose from three distinct sizing options: no expansion slots, 2 expansion slots, or 4 expansion slots, allowing you to tailor the size of the PC precisely to your needs. The expansion slot versions can support a full width PCIe-x16 card, with up to 75W power draw. This means Nvidia GPUs such as the GTX 1650 or the RTX A2000 can be utilized in this small form factor rugged enclosure.
SKU
RK35-3Li
Processor
Intel® Core™ 11th Gen 13/15/17 Processors
Memory
2*DDR4-3200MHz,U-DIMM, up to 64GB
Storage
1*M.2(NVME)
Net work
1*Intel l226+2*Intel l210
COM
6 *RS232（COM1-2 support RS422/485）
USB
2*USB 3.0, 2*USB2.0
Display
1 *HDMI, 1 *VGA
Other interfaces
1 * input x4 & output x4 GPIO, 1 *AUDIO (2in1)
Expand slot
1*M.2 Bkey optional LTE 4G/5G or Wi-Fi & Bluetooth
Operating system
Windows10/11,Linux
Power Input
DC9 ~ 36V Wide-range Power Input
Size included rack (mm)
180.4x109x70.5
Individual Gross Weight (KG)
1.35
Mounting Options
Wall-mounted / Desktop
Operating Temperature
-20 ~ +60℃
Storage Temperature
-20 ~ +70℃
Storage Humidity
*Non-condensing
5 ~ 95%
Packaging Information
1 *Master, 1 *Adapter, 1* Power Supply Cable
Durable Enclosure
This high-performance PC is encased in a housing crafted from a combination of aluminum and steel materials, ensuring unparalleled strength and resilience. These materials serve as a protective shield, safeguarding the internal components from external factors such as impacts, vibrations, and harsh environmental conditions.
3 Different Expansions
A range of configurations, ensuring that you can find the perfect computer hardware for your specific application. Stands out with its extensive expansion capabilities, boasting up to 4x PCIe Slots. You can choose from three distinct sizing options: no expansion slots, 2 expansion slots, or 4 expansion slots, allowing you to tailor the size of the PC precisely to your needs. The expansion slot versions can support a full width PCIe-x16 card, with up to 75W power draw. This means Nvidia GPUs such as the GTX 1650 or the RTX A2000 can be utilized in this small form factor rugged enclosure.
