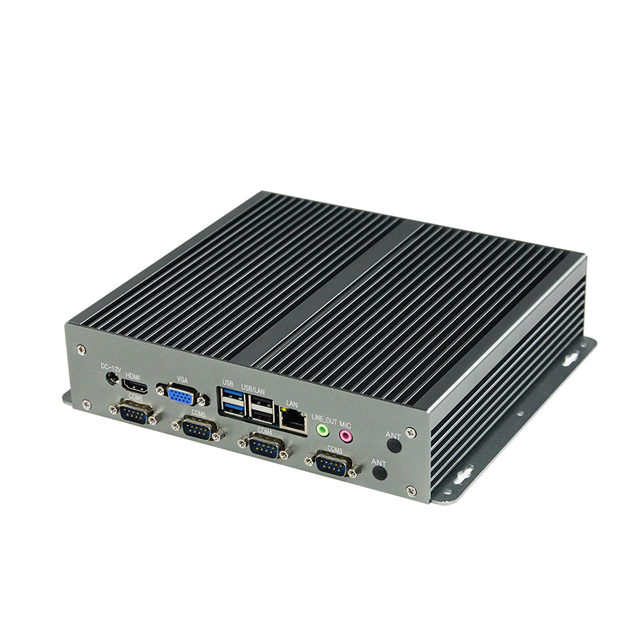

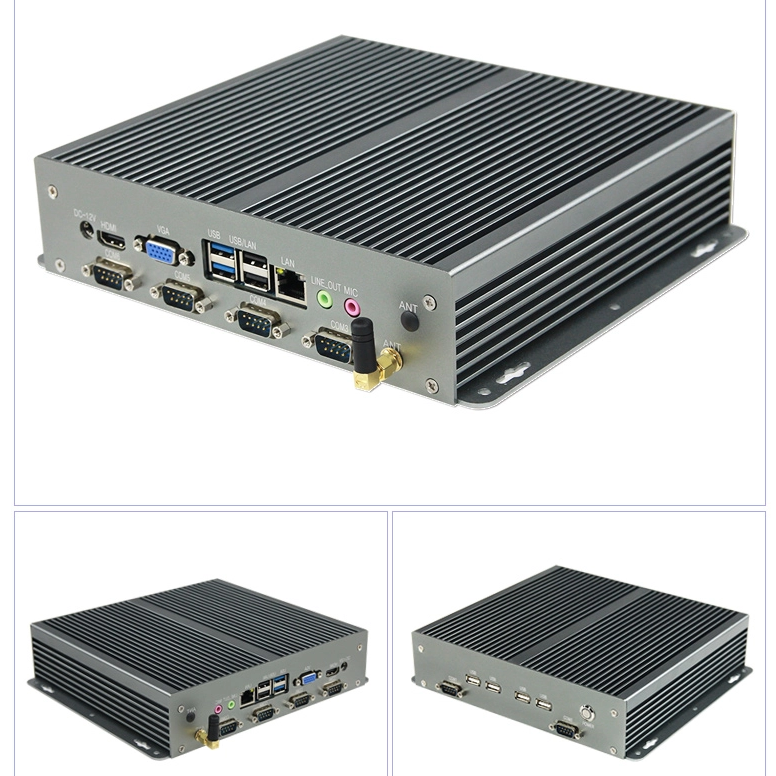

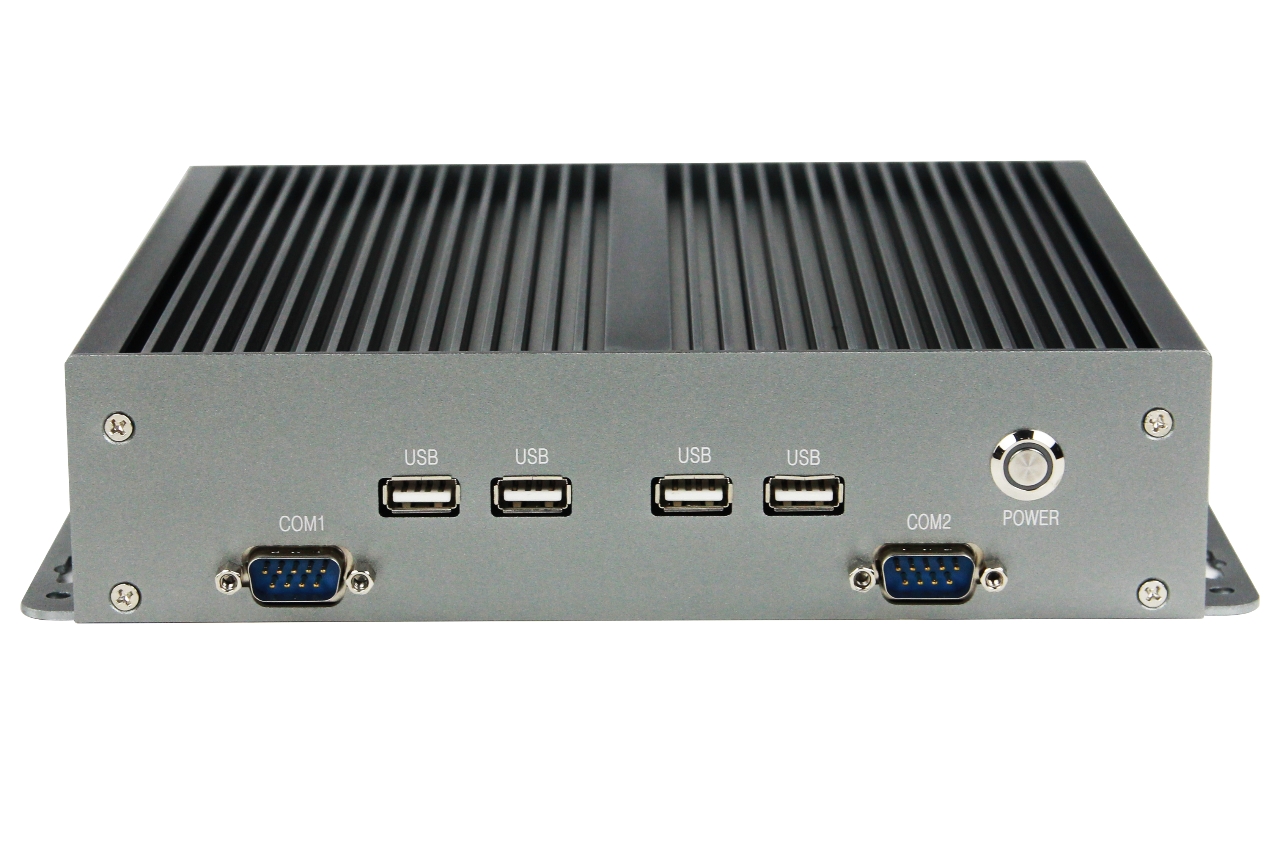

Fanless Box Computer | BPC Series made with rugged steel housing and have aluminum heatsink cooling. They run on a 7th Gen Intel Core i3/i5/i7 CPU and have various expansion options to easily customize them for your application. These mini PCs deliver maximum impact in a small form factor. Ddesigned for industrial environments, to perform tasks such as machine vision, edge computing, and quality control.
SKU
ARE-4L
Processor
Intel® Core™ 4th/5th Gen 13/15/17 Processor
Memory
1*DDR3 4G/8G
Storage
1*mSATA. 1*SATA3.0
Net work
2 *Realtek RTL8111+2*Intel l211
COM
6 *RS232（COM1-2 support RS485）
USB
2*USB 3.0, 2*USB2.0
Display
1*HDMI, 1*DP
Expand slot
1*MINI-PCIE WIFI, 1 *MINI PCIE 4G/5G
Operating system
Windows7.8.10/Linux
Power Input
DC12V
Size included rack (mm)
235x175.5x58.5
Individual Gross Weight (KG)
1.65
Mounting Options
Wall-mounted / Desktop
Operating Temperature
-20 ~ +60℃
Storage Temperature
-20 ~ +70℃
Storage Humidity *Non-condensing
5 ~ 95%
Packaging Information
1 *Master, 1 *Adapter, 1* Power Supply Cable
