SKU | 15.6” Widescreen Panel PC | VOPC-156 |
Screen Size | 15.6inch |
Resolution | 1366*768 |
Viewing Angle | 45/45/20/40 |
Brightness | 220 cd/㎡ |
Contrast Ratio | 500:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | under 5th Gen.: 1 * mSATA+1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | Under 5th Gen.: 1*Mini PCIE WiFi & BT or 4G LTE Up to 6th Gen.: 1*M.2 (1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

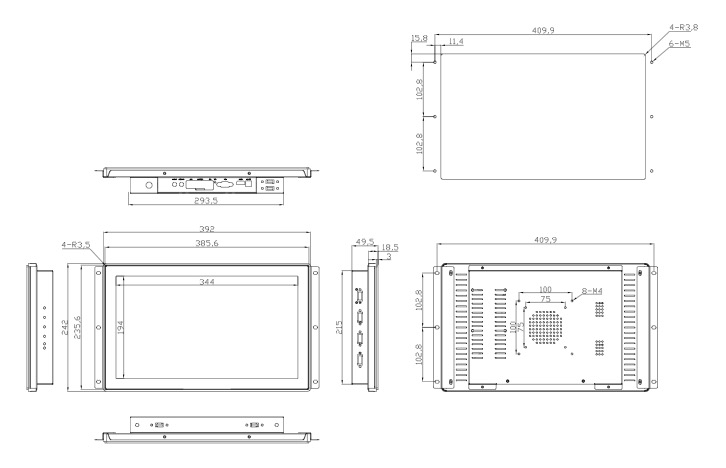

Dimensions (mm) | 392*242*49.5 |
Mounting Hole Size (mm) | 387.2*237.2 |
Gross weight (kg) | 3.70 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantage
Productivity
Multitasking:
Allow to view multiple documents, media, or games at the same time.
Reduced switching:
Open multiple windows side by side, so do not need to switch between screens.
Viewing experience
· Immersive media:
Improve your experience with movies, social media, and reading.
· Better focus:
Help you focus and concentrate.
· Reduced eyestrain:
View more content without having to constantly move the head or shift the gaze.
Other advantages
· Easier collaboration: Make it easier to collaborate with others.
· Reduced cable clutter: More desk space and less cable clutter.
And, more benefits of Our vincanwo brand 15.6” Widescreen Panel PC | VOPC-156
· Durability:
Designed to be rugged and withstand challenging conditions.
· Connectivity:
Offer a variety of connectivity options, including USB, LAN, and COM ports.
· Touchscreens:
Often have touchscreens that allow operators to easily access data.
· Fanless design:
Fanless, which can make them more suitable for harsh environments.
>Product Application
· Industrial automation:
Control and monitor production lines, machines, and other equipment.
· Human-Machine Interfaces (HMI):
As touchscreens to provide operators with easy access to data.
· Machine-to-Machine Interface (M2M):
Connect machines and other devices.
· Video surveillance:
As client stations for video surveillance systems.
· Interactive information kiosks:
To display information in public spaces.
· Digital information terminals:
To display information in public spaces.
