SKU | 15” Ratioscreen Panel PC | VOPC-15 |
Screen Size | 15inch |
Resolution | 1024*768 |
Viewing Angle | 89/89/89/89 |
Brightness | 350 cd/㎡ |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | under 5th Gen.: 1 * mSATA+1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | Under 5th Gen.: 1*Mini PCIE WiFi & BT or 4G LTE Up to 6th Gen.: 1*M.2 (1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

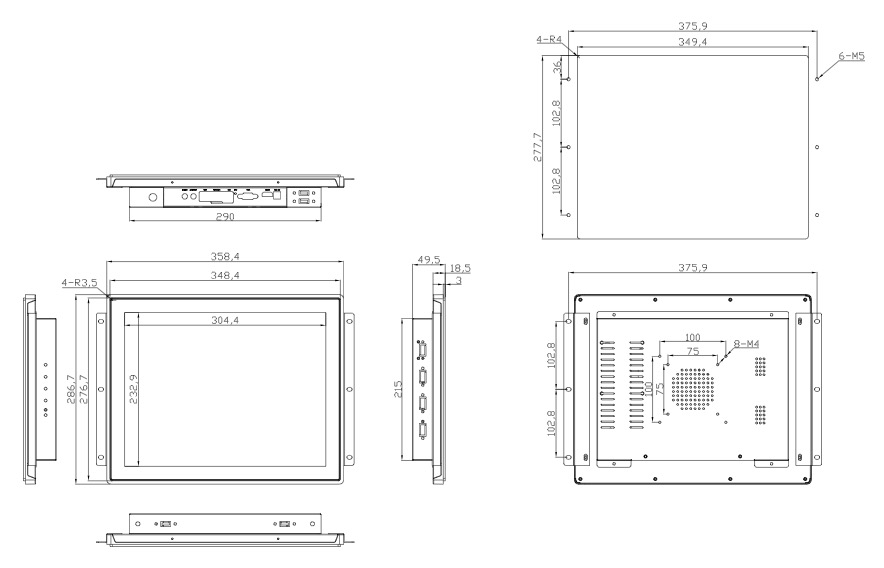

Dimensions (mm) | 358.4 *286.7 *49.5 |
Mounting Hole Size (mm) | 349.4 *277.2 |
Gross weight (kg) | 3.70 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantage:
· Intuitive:
Easy to use and operate, even for first-time users
· Space-saving:
Integrate the display and input space, making them more compact
· Versatile:
Used in many different settings, including factories, retail stores, offices, and healthcare facilities
· Durable:
Withstand harsh environments and are built to last
· Easy to clean:
Easy to clean and maintain
· Time-saving:
More efficient than traditional input methods like keyboards
Other benefits of our vincanwo brand 15” Touch Screen Panel PC | VOPC-15
· Engaging:
Interactive and draw people in
· Accurate:
More accurate than traditional input methods
· Convenient:
More convenient than traditional input methods
>Product Application:
· Industrial Automation:
Operating machinery, monitoring production processes, adjusting parameters on assembly lines, quality control checks.
· Manufacturing Floor Control:
Managing production schedules, tracking equipment status, real-time data visualization.
· Warehouse Management:
Inventory tracking, order picking, stock level monitoring.
· Point-of-Sale (POS):
Customer interaction, payment processing, product information display
· Building Automation:
HVAC control, lighting management, energy monitoring
· Medical Facilities:
Patient monitoring, medical records access, equipment control
· Transportation Systems:
Train control panels, vehicle diagnostics, information displays
· Food and Beverage Production:
Process control, sanitation monitoring, recipe management
· Retail Kiosks:
Product information, self-service ordering, customer engagement
As well, more benefits of using our vincanwo brand 15” Touch Screen Panel PC | VOPC-15 :
· Intuitive Interface:
Direct interaction with the screen simplifies operation compared to traditional mouse and keyboard.
· Space-Saving Design:
All-in-one unit eliminates the need for separate monitor and computer.
· Rugged Durability:
Built to withstand harsh environments with dustproof, waterproof, and shock-resistant features.
· Wide Operating Temperature Range:
Suitable for extreme hot or cold environments
· Customizable Functionality:
Can be tailored to specific application needs with specialized software and hardware
