Key Features:
Intel Celeron N2930 Quad Core (2M Cache, Up to 2.16GHz)
Rugged Aluminum Heatsink
Wide Range DC Power Input (9~36VDC)
Wide Operating Temperature

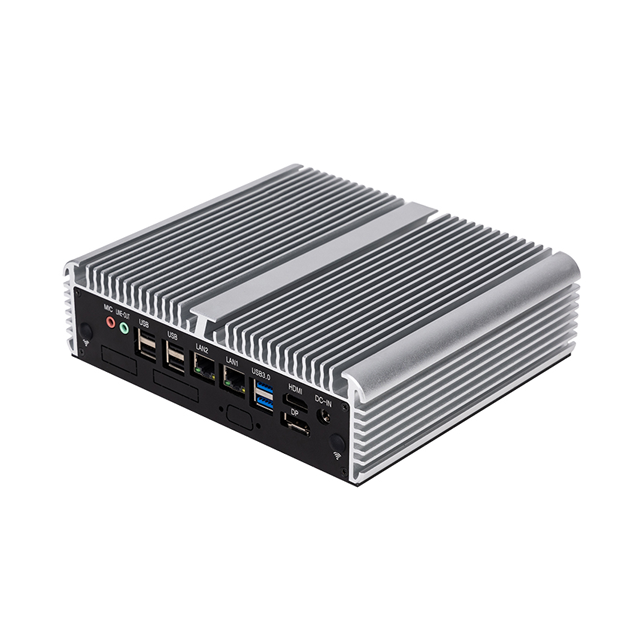

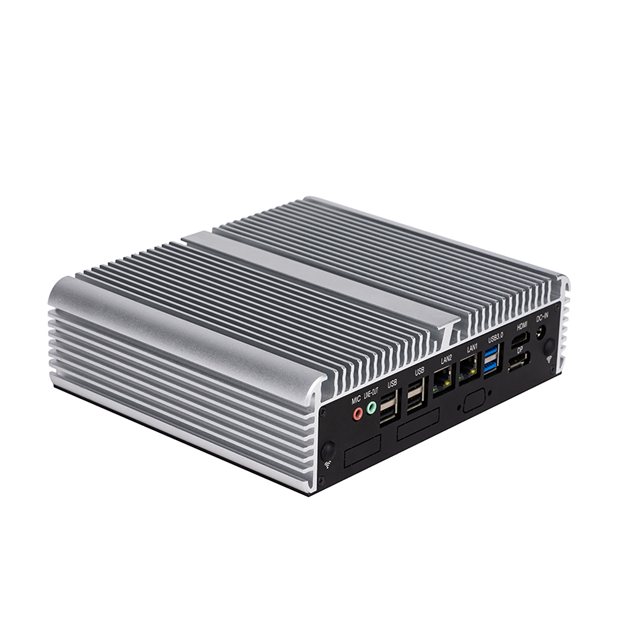

The Rugged Mini PC VRE-2L is a high-performance, energy-efficient, explosion-proof solution engineered for rigorous industrial applications, including automation, IoT, and robotics. Its rugged, compact design withstands challenging environments, while options like GPU support and multiple ports enhance its versatility. With a sealed, lightweight build suitable for both desktop and outdoor deployment, this industrial-grade mini PC ensures reliable, powerful performance across demanding use cases. Ideal for top-tier efficiency, it is a leading choice for applications requiring robust, secure computing.
The VRE-2L Fanless Box PCs run on the Intel Celeron N2930 Quad Core CPU. There are two units in this series, the VRE-2L and the VRE-2L, which can be DIN rail mounted. The two computers are mostly the same, but the DIN version has an optional GPIO, an easy-access 2.5” SATA2 HDD Bay, and all of the I/Os are on the same side. The VRE-2L has I/Os on both sides, which makes it thinner and more compact.
| SKU | VRE-2L |
| Processor | Intel® Core™ 4th/5th Gen 13/15/17 Processor |
|
| Memory | 1*DDR3 4G/8G |
| Storage | 1*mSATA. 1*SATA3.0 |
| Net work | 2 *Realtek RTL8111+2*Intel l211 |

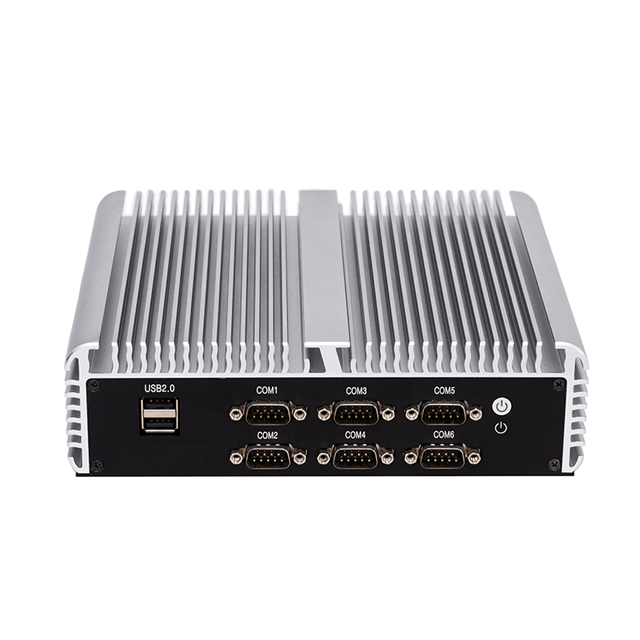

| COM | 6 *RS232（COM1-2 support RS485） |

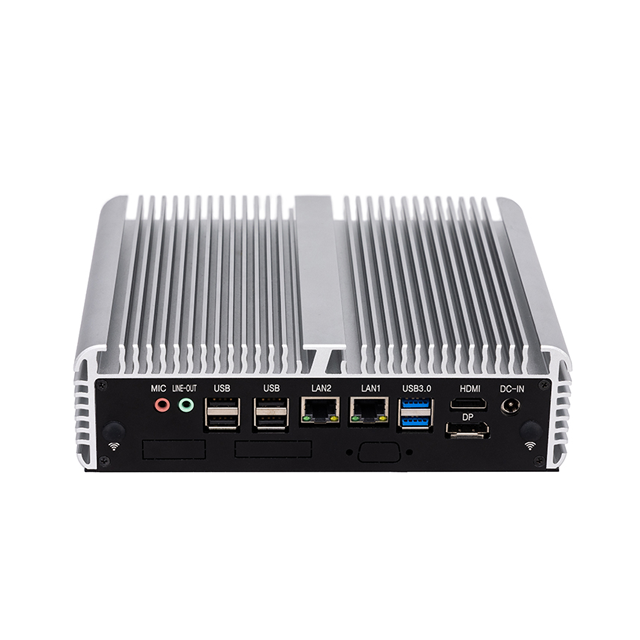

| USB | 2*USB 3.0, 2*USB2.0 |
| Display | 1*HDMI, 1*DP |
| Expand slot | 1*MINI-PCIE WIFI, 1 *MINI PCIE 4G/5G |
| Operating system | Windows7.8.10/Linux |
| Power Input | DC12V |
| Size included rack (mm) | 235x175.5x58.5 |
| Individual Gross Weight (KG) | 1.65 |
| Mounting Options | Wall-mounted / Desktop |
| Operating Temperature | -20 ~ +60℃ |
| Storage Temperature | -20 ~ +70℃ |
Storage Humidity
*Non-condensing | 5 ~ 95% |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
