| SKU | ARE-4L | |||||||
| Processor | Intel® CoreTM 4th/5th Gen I3/I5/I7 Processor | Intel® CoreTM 7thGen I3/I5/I7 Processor | Intel® CoreTM 8th/10th Gen I3/I5/I7 Processor | |||||
| Memory | 1 *DDR3 4G/8G | 1 *DDR4 8/16/32G | 2 *DDR4 8/16/32/64G | |||||
| Storage | 1 *mSATA/1*SATA (2.5” HDD capacity ≤2TB) | 1 *M.2/MSATA/TPM-4COM (2.5” HDD capacity ≤2TB) | 1 *M.2 2280 (2.5” HDD capacity ≤2TB) | |||||
| Net work | 2 *Realtek RTL8111E+2 *Intel I211 | 4 *Intel I210AT(optional 4POE) | ||||||
| COM | 6 *RS232(COM1-2 support RS485) | 2 *RS232(COM1-2 support RS485) | ||||||
| USB | 2 *USB 3.0 / 2 *USB2.0 | 4*USB3.0 | ||||||
| Display | 1*HDMI, 1*DP | 1 *HDMI | ||||||
| Expand slot | 1 *MINI-PCIE WIFI, 1 *MINI PCIE 4G/5G | 1* Mini-PCIE, support WIFI/4G module | 1*M.2 slot, support M.2 Key E 2230 WIFI module 1 *M.2 slot, support M.2 Key B 2242/4452 5G module | |||||
| Operating system | Windows/Linux | |||||||
| Power Input | DC12V | |||||||

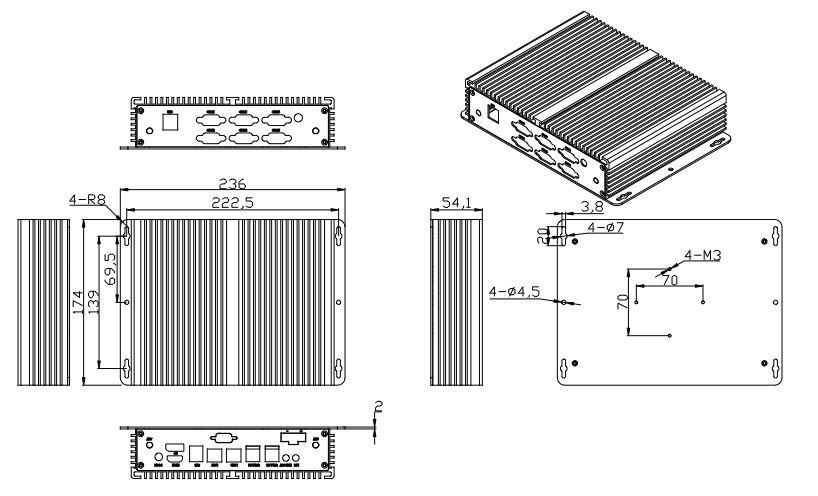

Size included rack (mm) | 235x175.5x58.5 | |||||||
| Individual Gross Weight (KG) | 1.65 | |||||||
| Mounting Options | Wall-mounted / Desktop | |||||||
| Operating Temperature | -20 ~ +60℃ | |||||||
| Storage Temperature | -20 ~ +70℃ | |||||||
Storage Humidity *Non-condensing | 5 ~ 95% | |||||||
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable | |||||||
>Advantages
Our Vincanwo Group brand Rugged embedded computer | ARE-4L has many advantages, including durability, reliability, and environmental resistance:
Durability
· Withstand extreme temperatures, shock, vibration, and humidity
· Can be sealed against water, dust, and other contaminants
· Can be used in harsh working conditions
Reliability
· Built to perform specific tasks with a focus on stability and consistency
· Can provide reliable performance over extended periods
Environmental resistance
· Can be used in extreme environments
· Can be deployed in a variety of wide temperature and harsh conditions
>Applications
Our Vincanwo Group brand Rugged embedded computer | ARE-4L is used in a variety of applications, including vehicles, data acquisition, and robotics. And, designed to operate reliably in harsh conditions.
Vehicles
Aircraft
In airplanes, Rugged embedded computer | ARE-4L can identify faults and make decisions to keep the aircrew safe
Land vehicles
Rugged embedded computer | ARE-4L can be used in land vehicles such as helicopters, drones, and ships
Data acquisition
· Mission computers: Can prepare, manage, and exploit mission data
· Data acquisition and recording: Can be used to acquire and record data
Robotics
· Factory robots: Can perform high-precision tasks in dangerous work conditions
· Industrial control systems: Can be used in robotics controllers
Other applications of our Vincanwo Group brand Rugged embedded computer | ARE-4L
· Communication gateways: Can be used to connect different systems
· Video processing: Can be used to process video
· Secure control: Can be used to control systems securely
· Computing boxes: Can be used as computing platforms
Our Vincanwo Group brand Rugged embedded computer | ARE-4L is designed to operate in extreme environments, such as those with strong vibrations, extreme temperatures, and wet or dusty conditions.
