| Quantity: | |
|---|---|
SKU | VFWS-215 |
Screen Size | 21.5” |
Resolution | 1920x1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive |
Controller | USB interface |
Durability | ≥ 5M times |
Processor Family | Intel® Processors |
Memory Type | Under 5th Generation: DDR3, 4G, 8G More than 6th Generation: DDR4, 4G, 8G, 16G, 32G |
Storage Type | Under 5th Generation: 1x mSATA, 1x SATA (2.5” Mechanical hard disk capacity: ≤2TB) More than 6th Generation: 1x M.2 / 1x SATA (2.5” Mechanical hard disk capacity: ≤2TB) |
Ethernet / LAN | 2x RTL8111 |
Serial / Com | 2x RS232 (COM 2 option RS485, expansion to 5COM) |
USB | 4x USB |
Video Outputs | 1x HDMI, 1x VGA |
Expansion Slots | Under 5th Generation:1x Mini PCIE WiFi & Bluetooth or 4G LTE More than 6th Generation:1x M.2 (KEYE WiFi & Bluetooth 2230), 1x M.2 (KEYE B4G/5G LTE 3052) |
Operating Systems | Windows, Linux |

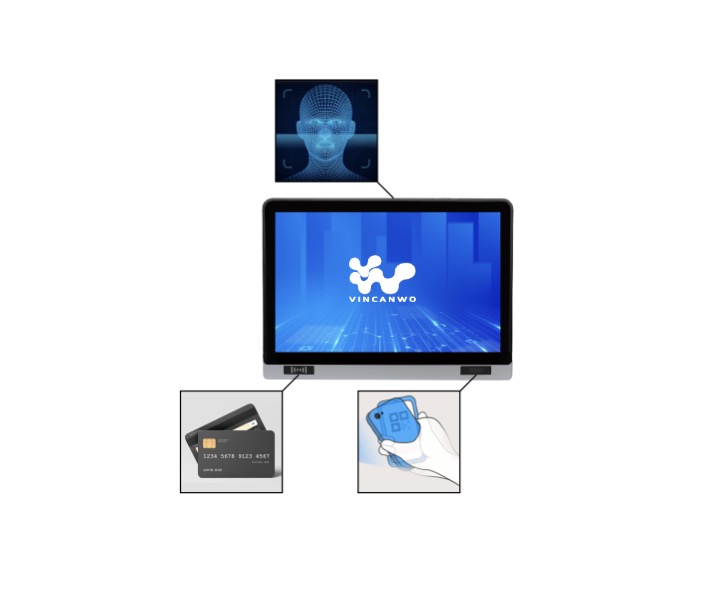

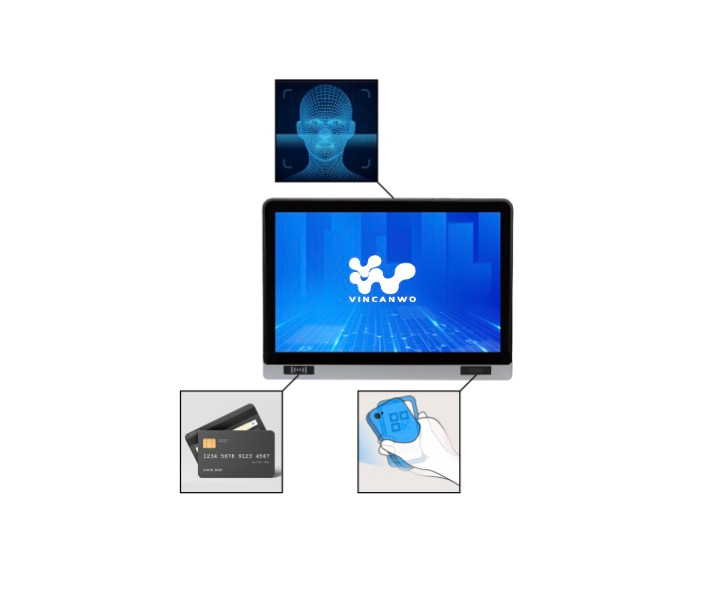

Built-in RFID Reader | Front IC/ID Cards, Camera, QR Scanner |

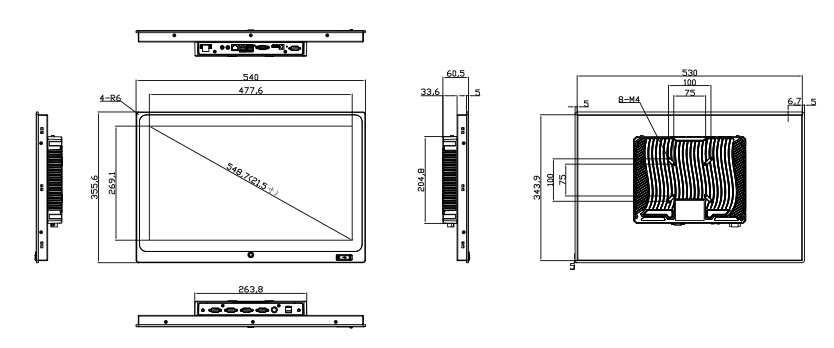

Dimension | 534 .3x362.3x53.5mm |
Mounting Hole Size | 529x357mm |
Gross Weight | 5.70kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Advantages
RFID Reader Advantages:
Automated Inventory Tracking:
RFID tags can be read from a distance, enabling real-time inventory tracking and reducing the need for manual scanning.
Increased Accuracy:
RFID systems can identify individual items, leading to more accurate inventory management and reducing errors.
Faster Processing:
RFID readers can scan multiple tags simultaneously, accelerating processes like receiving, shipping, and order fulfillment.
Enhanced Security:
RFID tags can be encrypted, providing a higher level of security for sensitive data.
Real-Time Data:
RFID technology allows for real-time data updates, providing businesses with up-to-date information on inventory levels and asset locations.
Improved Asset Tracking:
RFID tags can be attached to assets, enabling businesses to track their location and usage, reducing the risk of loss or misuse.
Reduced Labor Costs:
Automating processes with RFID can reduce the need for manual labor, saving time and money.
QR Code Reader Advantages:
Easy Access to Information:
QR codes can link to websites, documents, and other digital content, providing users with easy access to information.
Streamlined Processes:
QR codes can be used to automate various processes, such as access control, check-in, and payment.
Enhanced Customer Experience:
QR codes can provide customers with quick and easy access to information and services, improving their overall experience.
Cost-Effective Solution:
QR codes are a relatively inexpensive and easy-to-implement technology.
Versatile Applications:
QR codes can be used in a wide variety of applications, including marketing, access control, and inventory management.
Mobile-Friendly:
QR codes are easily scanned using smartphones and other mobile devices, making them a convenient and accessible technology.
Improved Data Capture:
QR codes can be used to capture data quickly and accurately, reducing the risk of errors and improving efficiency.
>Applications
Our Vincanwo Group Brand 21.5" Widescreen All In One PC built in FRID Reader and QR Scanner | VFWS-215 finds applications in various sectors, including access control, asset tracking, inventory management, and logistics, enabling efficient data capture and streamlined processes.
1. Access Control & Security:
Visitor Management:
Used in business office buildings, scenic areas, communities, and administrative halls to manage visitor entry and exit efficiently.
Access Control Systems:
Facilitates secure access to restricted areas, allowing authorized personnel entry via RFID cards or QR codes.
Smart Homes:
Can integrate with smart home systems for enhanced security and convenience.
2. Asset Tracking & Management:
Inventory Management:
Used for tracking and managing assets like equipment, tools, and supplies in warehouses, retail stores, and other businesses.
Logistics & Supply Chain:
Enables real-time tracking of goods from production to distribution, improving supply chain visibility and efficiency.
Healthcare:
Used for patient tracking, medication management, and inventory control in hospitals and healthcare facilities.
3. Retail & Point of Sale (POS):
· Point of Sale (POS) Checkout: Can be used for quick and accurate checkout, especially in retail environments.
· Inventory Control: Helps retailers manage inventory levels and prevent stockouts.
· Loyalty Programs: Facilitates easy integration with loyalty programs, allowing customers to access rewards and discounts.
4. Other Applications:
· Airline Baggage Tagging: Used for tracking luggage during travel.
· Lab Sample Tracking: Helps track and manage lab samples efficiently.
· Coupons and Loyalty: Used for managing coupons and loyalty programs.
· Smart Lockers: Used for managing smart lockers in various applications.
· Kiosks: Used in kiosks for various purposes, including self-service check-in and information access.
