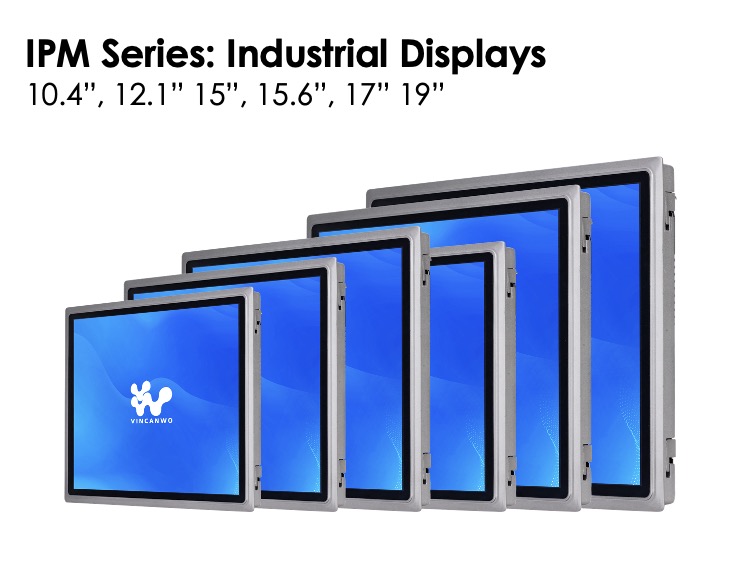

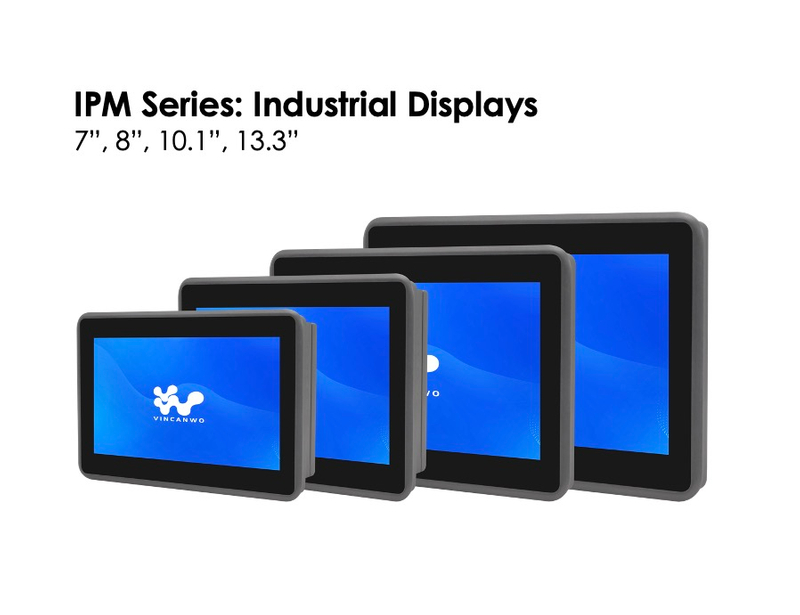

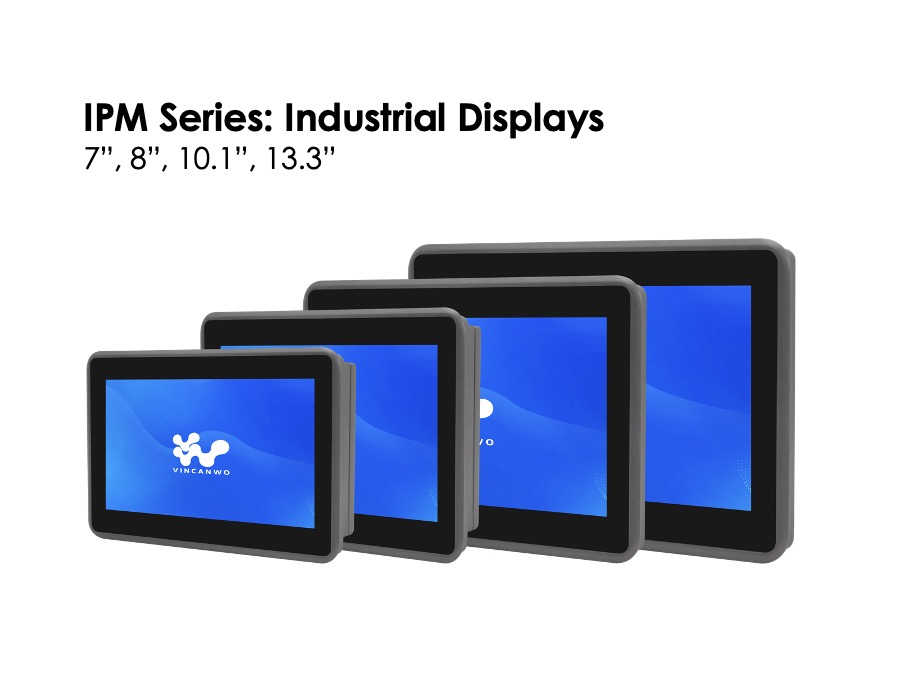

Industrial Displays | IPM Series
VINCANWO
| Availability: | |
|---|---|
| Quantity: | |
| SKU | IPM-7 | IPM-8 | IPM-101 | IPM-104 | IPM-121 | IPM-133 | IPM-15 | IPM-15.6 | IPM-17 | IPM-19 |
| Screen Size | 7" | 8" | 10.1" | 10.4" | 12.1" | 13.3" | 15" | 15.6" | 17" | 19" |
| Resolution | 1024x600 | 1024x768 | 1280x800 | 1024x768 | 1024x768 | 1920x1080 | 1024x768 | 1920x1080 | 1280x1024 | 1280x1024 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 89/89/89/89 | 89/89/89/89 | 85/85/85/85 | 89/89/89/89 | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 |
| Brightness | 300 cd/㎡ | 300 cd/㎡ | 400 cd/㎡ | 500 cd/㎡ | 500 cd/㎡ | 300 cd/㎡ | 350 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ |
| Touch Screen | Capacitive | Capacitive | Capacitive, Resistive | Capacitive | Capacitive, Resistive | |||||
| Controller | USB Interface | |||||||||
| Durability | ≥ 5M times | Capacitive ≥ 5M times, Resistive ≥ 100,000 times | ≥ 5M times | Capacitive ≥ 5M times, Resistive ≥ 100,000 times | ||||||

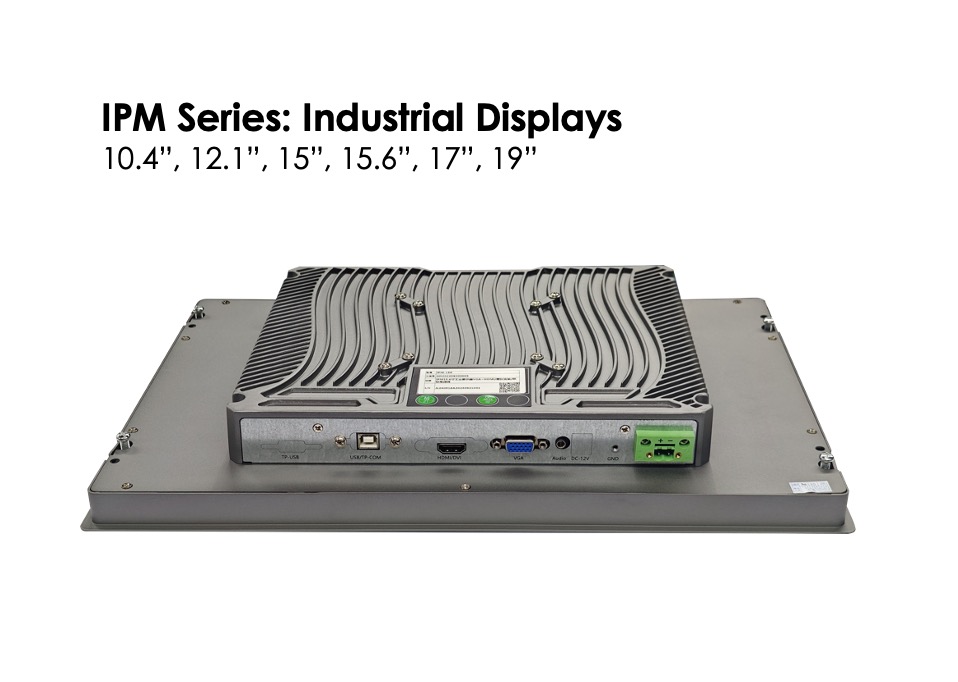

| USB | 1x USB cable for touchscreen connection | |||||||||
| Display | 1x HDMI, 1x VGA | |||||||||
| Dimension | 194x129.9x52mm | 234x187x52mm | 266.1x181.9x52mm | 277.3x224.5x55.8mm | 311.3x255.3x55.6mm | 337x208.6x52mm | 367.3x291.3x58.8mm | 412x261x58.6mm | 401.6x338.2x58.6mm | 445x374.8x58.6mm |
| Mounting Hole Size | 188x124mm | 228x181mm | 260x176mm | External embedded size: 305x248mm | External embedded size: 305x248mm | 331.5x203mm | External embedded size: 359x283mm | External embedded size: 404x253mm | External embedded size: 394x324mm | External embedded size: 439x359mm |
| Internal embedded size: 298.8x242.8mm | Internal embedded size: 298.8x242.8mm | Internal embedded size: 350x274mm | Internal embedded size: 397.5x241.8mm | Internal embedded size: 383.8x320.8mm | Internal embedded size: 423.8x353.8mm | |||||
| Gross Weight | 1.80kg | 2.40kg | 3.00kg | 2.75kg | 3.30kg | 3.50kg | 3.75kg | 3.80kg | 5.65kg | 5.70kg |
| Mounting Option | Embedded, Wall Mount, Desktop | |||||||||
| Operating Temperature | -30 ~ 70℃ | -30 ~ 70℃ | -30 ~ 70℃ | -30 ~ 70℃ | -30 ~ 70℃ | -30 ~ 70℃ | -30 ~ 70℃ | -30 ~ 70℃ | -30 ~ 70℃ | -30 ~ 70℃ |
| Storage Temperature | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ | -40 ~ 80℃ |
| Humidity Range Non-condending | 5% - 95% | 5% - 95% | 5% - 95% | 5% - 95% | 5% - 95% | 5% - 95% | 5% - 95% | 5% - 95% | 5% - 95% | 5% - 95% |
| Power | 12VDC (3A) <Option Wide-range Power Input 9 - 36VDC) | |||||||||
>Product Advantages:
Durability:
Built to withstand extreme temperatures, vibrations, dust, and impacts, making them suitable for demanding industrial environments.
High Visibility:
High brightness levels and clear visuals ensure information is easily readable even in bright light conditions.
Customizable Interfaces:
Ability to tailor the display layout and data presentation to specific industrial needs and workflows.
Touchscreen Functionality:
Intuitive interaction with machines and processes through touch input, even with gloved hands.
Real-time Data Display:
Capability to present live data from sensors and machines, enabling immediate decision-making.
Alarm and Alert Systems:
Visual and audible alerts for critical events to prevent errors and improve safety.
Data Analysis and Visualization:
Ability to display complex data in user-friendly graphs and charts for better understanding.
Automatic Brightness Adjustment:
Adjusts screen brightness based on ambient light to reduce eye strain.
Wide Viewing Angles:
Clear visibility from various viewing positions on the shop floor.
Reliable Operation:
Designed for continuous operation in demanding conditions, minimizing downtime.
Our Vincanwo Group brand Industrial Displays | IPM Series offer enhanced durability to withstand harsh environments, high-definition visuals for clear information presentation, customizable interfaces for specific workflows, touch-screen functionality for intuitive operation, ability to display real-time data, and automatic brightness adjustments to reduce eye fatigue, ultimately improving productivity and operational efficiency in industrial settings.
>Product Application
Machine control panels:
Displaying operating parameters, status indicators, and error messages on industrial machinery like CNC machines, robots, and packaging equipment.
Process monitoring systems:
Visualizing real-time data on production lines like temperature, pressure, flow rates, and quality metrics in chemical plants, refineries, and power plants.
Medical devices:
Presenting patient data, vital signs, and imaging information on medical equipment like ventilators, patient monitors, and surgical consoles.
Transportation displays:
Showing vehicle diagnostics, navigation information, and route details in trains, buses, and industrial vehicles.
Energy management systems:
Displaying power consumption, grid status, and energy usage data in power plants and utility control centers.
Environmental monitoring stations:
Presenting air quality, water quality, and weather data in outdoor monitoring systems.
Military applications:
Providing situational awareness, mission critical data, and weapon system status on military vehicles and command centers.
Key features of Our Vincanwo Group brand Industrial Displays | IPM Series that enable these applications:
· High brightness: Ensuring visibility in bright light conditions like direct sunlight.
· Wide operating temperature range: Functioning properly in extreme hot and cold environments
· Rugged design: Withstanding vibrations, shocks, and dust in harsh industrial settings
· Customizable interfaces: Adapting to specific application needs with tailored layouts and data visualization
· Long lifespan: Providing reliable operation for extended periods in demanding environments
>Warranty
All our products come standard with 3 years warranty.
We also offer up to 5 years extension of our product warranty at the time of sale.
Warranty starts from the time the product is shipped to you from Vincanwo Group. You do not need to register or save the receipt as long as the unit still has the serial number we can look up the warranty term and start date.
Vincanwo Group wants to be your preferred business partner. We will gladly work to help you with all sorts of computer related issues you encounter via our free technical support. If an RMA is needed, we understand the importance of getting you an accurate and long-lasting fix, and getting back up and running quickly.
We keep a wide array of parts on hand for repairs, but sometimes parts will need to be ordered and this can cause delay in repairs.
Vincanwo Group Warranty Includes:
· Repair of the system, Including labor
· Components needing replacement
· If necessary, re-installation of original OS
· Return shipment to customer
Events NOT Covered by Standard Warranty Include:
· Physical damage
· Damage caused by unauthorized repairs
· Use of product outside of its approved environment
· Exposure to direct sunlight, unless explicitly approved
· Inbound Shipping
· Software
>FAQ
How to require a quotation ?
Please send details of your requirement to us by E-mail, we will send quotation to you within 1 working day.
How to require a free sample?
Please send your sample requirement to us, and we will check and confirmed to you within 2 days. Normally we refund sample once the order quantities are in 100pcs.
What is your MOQ ?
NO MOQ request, even with your own specifications.
What is your order Lead-time?
Order Quantity less than 100pcs, and the production lead-time is 3days, surely we have great capacity to handle the large order quantities. For example: 1x40H container loads 8,000 - 10,000pcs and our production lead time normally is 15days after order deposit.
What is your export product package ? How to transport ?
Our product export is single pack. For oversea customers, we will shipping with the durable packages or pallets, or transport by train, by sea or by air, as well by DHL, UPS, etc.
What is your payment term ?
With different price & quantity of contract, We accept different payment term as below:
1, TT for samples (Quantity less than 100units).
2, 30% T/T in advance, balance T/T before shipment (Quantity less than 1000units).
3, 20% T/T in advance, balance O/A 30-60days (Quantity 1000-8000units).
What is your price term ? How to loading cargoes?
We can do price term as below:
1, EXW factory, including VAT tax, Loading cargoes in our factory
2, FOB Shenzhen or Guangzhou Port, and container loading cargoes in our factory.
3, CIF Port of delivery.
4, Door-to-door shpment.
