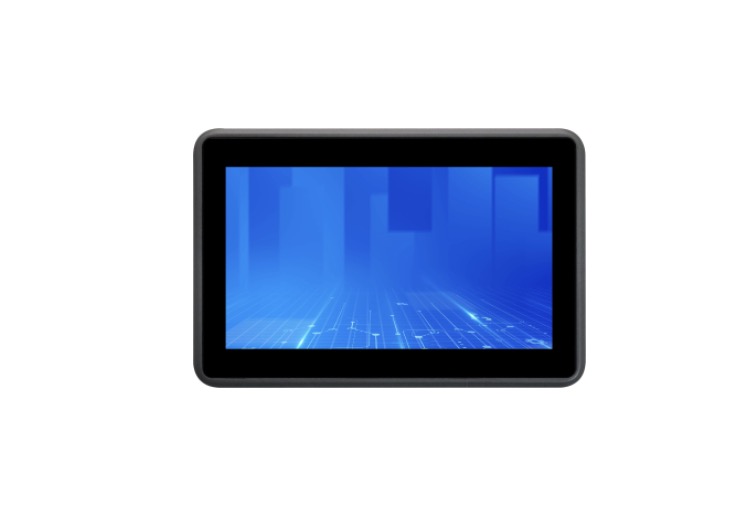

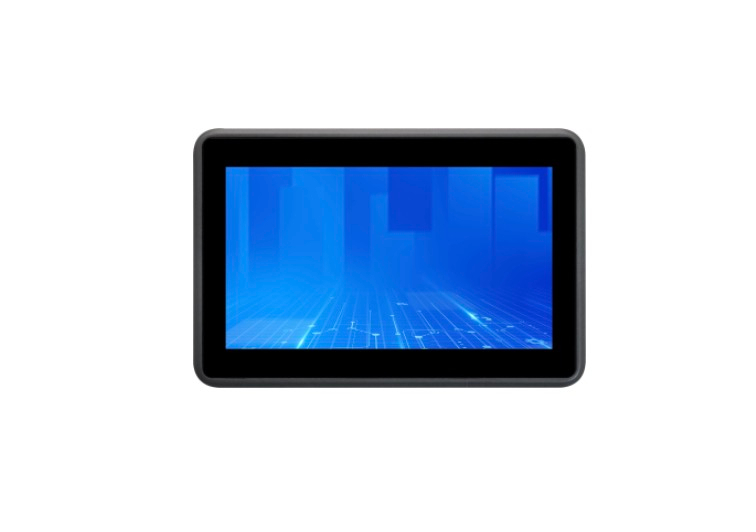

SKU | 8" High-brightness Industrial Display | IPM-8 |
Screen Size | 8inch |
Resolution | 1024*768 |
Viewing Angle | 85/85/85/85 |
Brightness | 300 cd/m2 |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
USB | 1 *USB (For touchscreen cable) |
Display | 1 *HDMI, 1 *VGA |

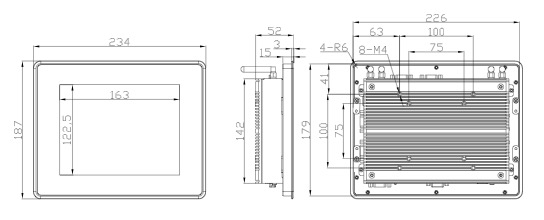

Dimensions (mm) | 234*187*52 |
Recommended size of holes openning (mm) | 288*181 |
Gross weight (kg) | 2.40kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +60°C |
Storage Temperature | -40 ~ +70°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage:
1,Enhance visibility: Provide clear display effects in strong lighting environments, ensuring that operators can clearly see the information on the screen even under direct sunlight or other strong light conditions. This is particularly important for outdoor applications or industrial environments with large changes in lighting.
2,Enhanced Contrast: Typically come with higher contrast, which means darker black, brighter white, and more vivid images. This helps improve the recognition of information, especially when displaying charts, data, and text, providing a better reading experience.
3,Wide perspective: Having a wider perspective means that the quality and color of the image will not significantly change when viewed from different angles on the screen. This is very advantageous for industrial applications where multiple people collaborate or require monitoring screens from different locations.
4,Durability and reliability: Adopting LCD backlight technology not only improves brightness, but also enhances the durability and reliability of the screen. LED backlight has a long lifespan, is not prone to screen burn-in, and is suitable for industrial environments that operate continuously for long periods of time
5,Energy saving and environmental protection: Although high brightness screens may be associated with high energy consumption, in reality, modern high brightness screens use energy-saving technology that can effectively reduce power consumption while maintaining high brightness. This not only saves energy costs, but also helps reduce carbon footprint, in line with the concept of green environmental protection.
6,Fast response time: Typically have fast response times, ensuring continuity and smoothness of images.
7, Seismic and electromagnetic interference resistance: The ability to resist seismic and electromagnetic interference, and to operate stably in harsh industrial environments.
8, Wide temperature operating range: Normal operation within a wide temperature range, typically including low temperatures up to -30 ° C and high temperatures up to 80 ° C (or higher), ensuring stability and reliability under different environmental conditions.
9, High resolution: High resolution display that can present delicate and clear images and text.
>Product Application
1,Industrial automation control: In CNC machine tools, robot control, assembly line monitoring, production scheduling, and remote monitoring, high brightness industrial displays are used to display operating interfaces, monitor production processes, adjust parameters, and achieve remote control, helping operators to discover and solve problems in a timely manner.
2, Security monitoring: In video surveillance systems, high brightness industrial displays are used to display real-time video images from surveillance cameras, supporting multi-channel video input and switching, making it convenient for users to conduct real-time monitoring and video playback.
3, Transportation: In the traffic command center, high brightness industrial displays are used to display information such as traffic flow and real-time road conditions, helping management personnel make reasonable scheduling decisions; Provide accurate traffic information in public transportation information display to facilitate passengers in planning their travel routes.
4, Medical equipment: Used in X-ray machines, ultrasound diagnostic equipment, and other devices to display patient imaging data and equipment status information; During the surgical process, provide high-definition surgical images and navigation information to assist doctors in precise operations.
5, Outdoor applications: Suitable for outdoor billboards and information release screens due to their high brightness and wide viewing angle characteristics; Used in environmental monitoring stations and other places to display real-time environmental data, such as temperature, humidity, air quality and more.
6, Communication and Energy: Used in communication base stations, substations, and other places to display equipment status, monitoring data, and alarm information.
7, Aerospace: In the aerospace field, high brightness industrial displays are used for monitoring, navigation, and display systems of aircraft.
>Warranty
All our products come standard with 3 years warranty.
We also offer up to 5 years extension of our product warranty at the time of sale.
Warranty starts from the time the product is shipped to you from Vincanwo Group. You do not need to register or save the receipt as long as the unit still has the serial number we can look up the warranty term and start date.
Vincanwo Group wants to be your preferred business partner. We will gladly work to help you with all sorts of computer related issues you encounter via our free technical support. If an RMA is needed, we understand the importance of getting you an accurate and long-lasting fix, and getting back up and running quickly.
We keep a wide array of parts on hand for repairs, but sometimes parts will need to be ordered and this can cause delay in repairs.
Vincanwo Group Warranty Includes:
· Repair of the system, Including labor
· Components needing replacement
· If necessary, re-installation of original OS
· Return shipment to customer
Events NOT Covered by Standard Warranty Include:
· Physical damage
· Damage caused by unauthorized repairs
· Use of product outside of its approved environment
· Exposure to direct sunlight, unless explicitly approved
· Inbound Shipping
· Software
>FAQ
How to require a quotation ?
Please send details of your requirement to us by E-mail, we will send quotation to you within 1 working day.
How to require a free sample?
Please send your sample requirement to us, and we will check and confirmed to you within 2 days. Normally we refund sample once the order quantities are in 100pcs.
What is your MOQ ?
NO MOQ request, even with your own specifications.
What is your order Lead-time?
Order Quantity less than 100pcs, and the production lead-time is 3days, surely we have great capacity to handle the large order quantities. For example: 1x40H container loads 8,000 - 10,000pcs and our production lead time normally is 15days after order deposit.
What is your export product package ? How to transport ?
Our product export is single pack. For oversea customers, we will shipping with the durable packages or pallets, or transport by train, by sea or by air, as well by DHL, UPS, etc.
What is your payment term ?
With different price & quantity of contract, We accept different payment term as below:
1, TT for samples (Quantity less than 100units).
2, 30% T/T in advance, balance T/T before shipment (Quantity less than 1000units).
3, 20% T/T in advance, balance O/A 30-60days (Quantity 1000-8000units).
What is your price term ? How to loading cargoes?
We can do price term as below:
1, EXW factory, including VAT tax, Loading cargoes in our factory
2, FOB Shenzhen or Guangzhou Port, and container loading cargoes in our factory.
3, CIF Port of delivery.
4, DAP place of delivery.
