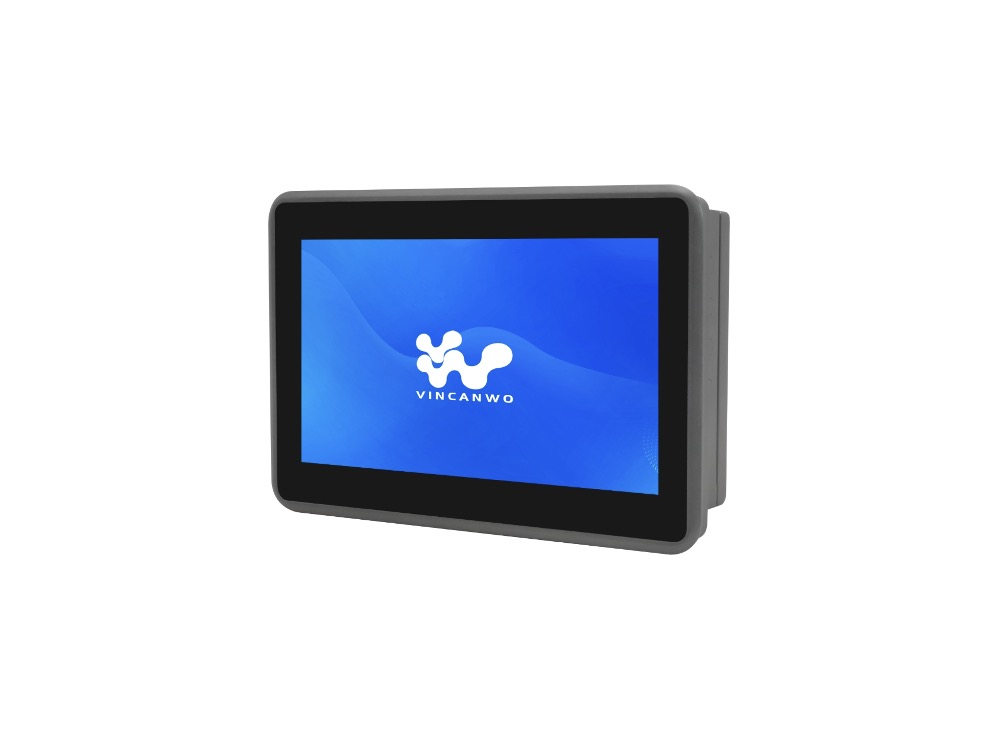

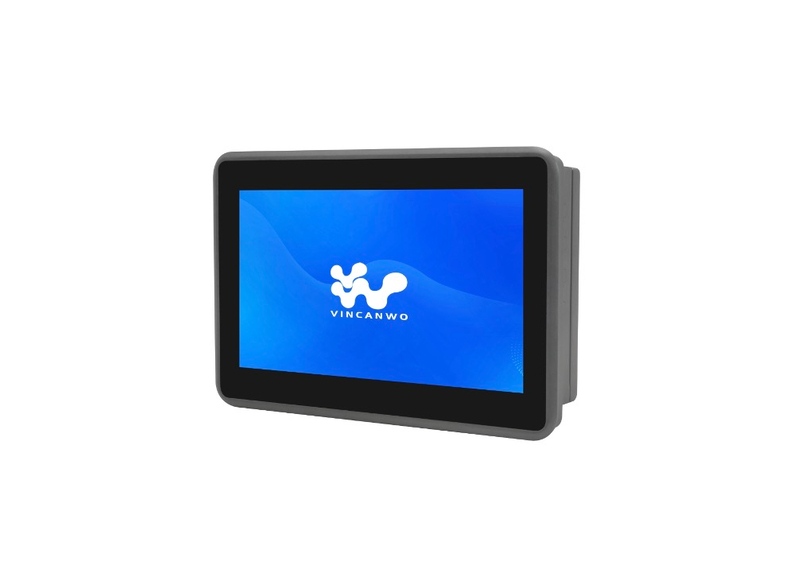

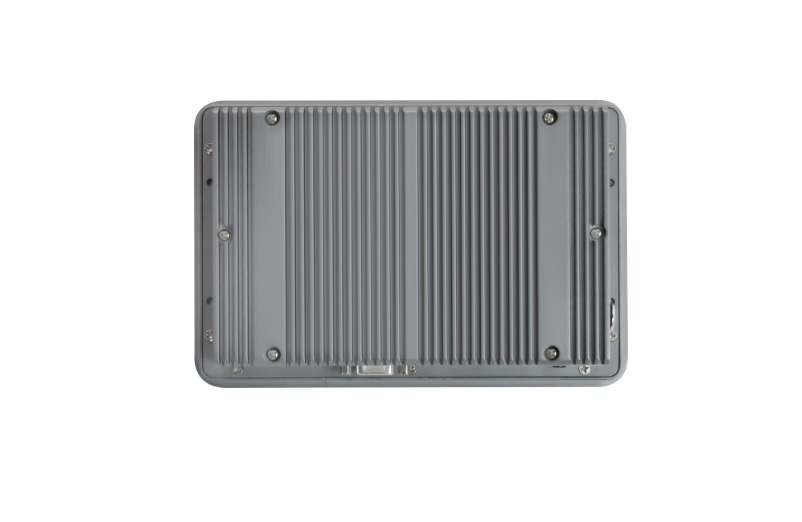

SKU | 10.1" industrial display IPM-101 |
Screen Size | 10.1inch |
Resolution | 1280*800 |
Viewing Angle | 85/85/85/85 |
Brightness | 400 cd/m2 |
Contrast Ratio | 800:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
USB | 1 *USB (For touchscreen cable) |
Display | 1 *HDMI, 1 *VGA |

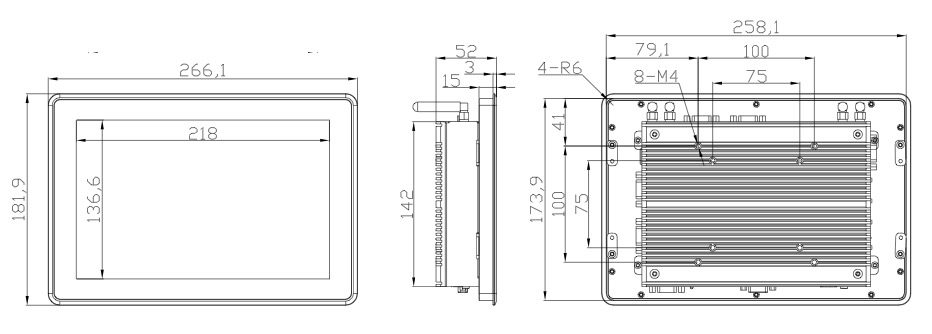

Dimensions (mm) | 266.1*181.9*52 |
Recommended size of holes openning (mm) | 260*176 |
Gross weight (kg) | 3.00kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +60°C |
Storage Temperature | -40 ~ +70°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage:
1,High quality and durability:
Using high-quality materials and manufacturing processes, it can withstand harsh industrial environments and has a long service life. Its shell design is sturdy, with a high level of dust and water resistance. Some products have a dust resistance level of up to IP68 and a shock resistance level of up to level 1, which can adapt to harsh industrial environments.
2, Professional performance and stability:
Normal operation in extreme environments such as high and low temperatures, with a typical operating temperature range of -40 to 85 degrees Celsius. High resolution and precise color ensure the authenticity of monitoring data. Professional level power management and heat dissipation design ensure stable performance output even in long-term continuous operation, reducing failure rates.
3, Wide temperature working range:
Normal operation within the temperature range of - 200 ° C to + 70 ° C ensures continuous and efficient operation in various extreme environments, ensuring uninterrupted operation of the production line.
4, High brightness and high pixel display:
Equipped with a high brightness and high contrast display panel to ensure optimal display performance in strong or low light environments. High resolution supports high-definition or even ultra high definition resolution, ensuring clear and delicate images.
5, Suitable for a wide range of application scenarios:
Widely used in real-time monitoring of production lines, warehouse management, logistics tracking, equipment fault diagnosis, and production data visualization. In intelligent production lines, industrial displays play the role of an "information hub", providing real-time feedback on production data and fault warning information, helping operators adjust and schedule in a timely manner, and ensuring efficient operation of the production line.
>Product Application
1, Factory automation control:
In scenarios such as CNC machine tools, robots, assembly lines, etc., industrial displays are used to display operating interfaces, monitor production processes, adjust parameters, and achieve remote control. By displaying the real-time operation status and equipment parameters of the production line, it helps operators to discover and solve problems in a timely manner.
2, Security monitoring:
Used to display real-time video images from surveillance cameras, supporting multi-channel video input and switching, making it convenient for users to conduct real-time monitoring and video playback. In addition, it also supports automatic video analysis function, which can automatically detect abnormal situations and issue alerts, improving the efficiency and accuracy of security monitoring.
3, Transportation:
Industrial displays are used in traffic command centers, public transportation information displays, and other places to display traffic flow, real-time road conditions, and other information, helping management personnel make reasonable scheduling decisions. In addition, industrial displays are often used in airport baggage handling systems, security check areas, etc. to display information screens.
4, Medical equipment:
In medical devices such as X-ray machines and ultrasound diagnostic equipment, industrial displays are used to display patient imaging data and equipment status information. During the surgical process, industrial displays provide high-definition surgical images and navigation information to assist doctors in precise operations.
5, Outdoor applications:
Due to its high brightness and wide viewing angle characteristics, it is suitable for outdoor billboards and information release screens. In addition, industrial displays are used in environmental monitoring stations and other places to display real-time environmental data, such as temperature, humidity, air quality, and more.
6,Communication and Energy:
Used in communication base stations, substations, and other places to display equipment status, monitoring data, and alarm information. In power plants, industrial displays are used to monitor power output, system operation status, and more.
7, Aerospace:
In the aerospace field, used for aircraft monitoring, navigation, and display systems to meet high reliability and performance requirements.
