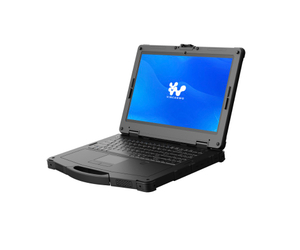

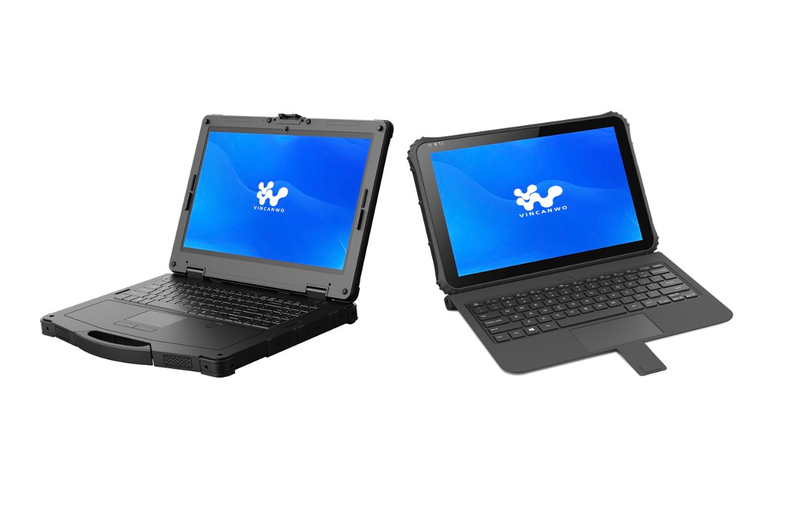

Rugged Notebooks X86 Series | I22J, Q225M, X24T, X15T
VINCANWO
Availability: | |
---|---|
Quantity: | |

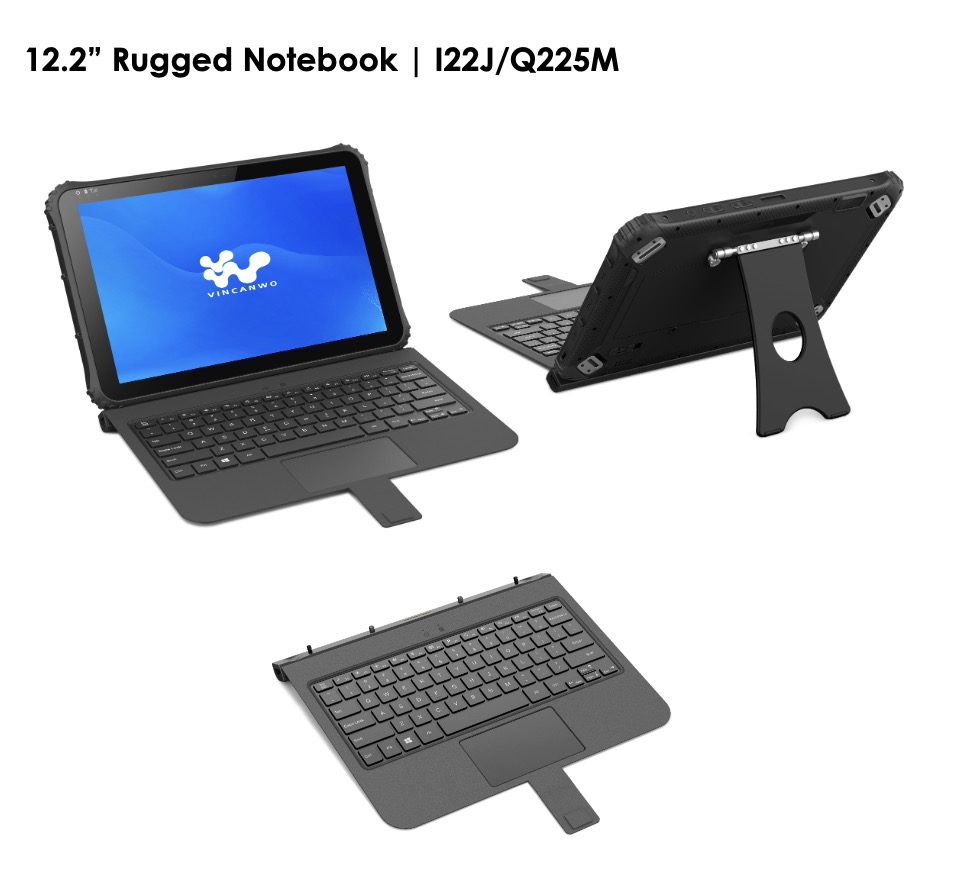

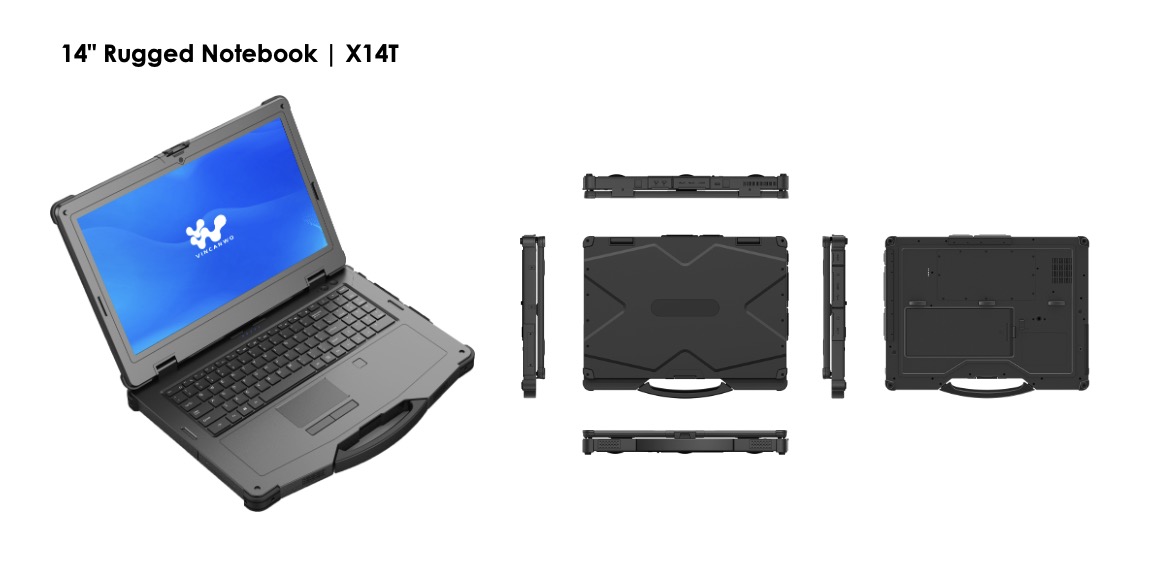

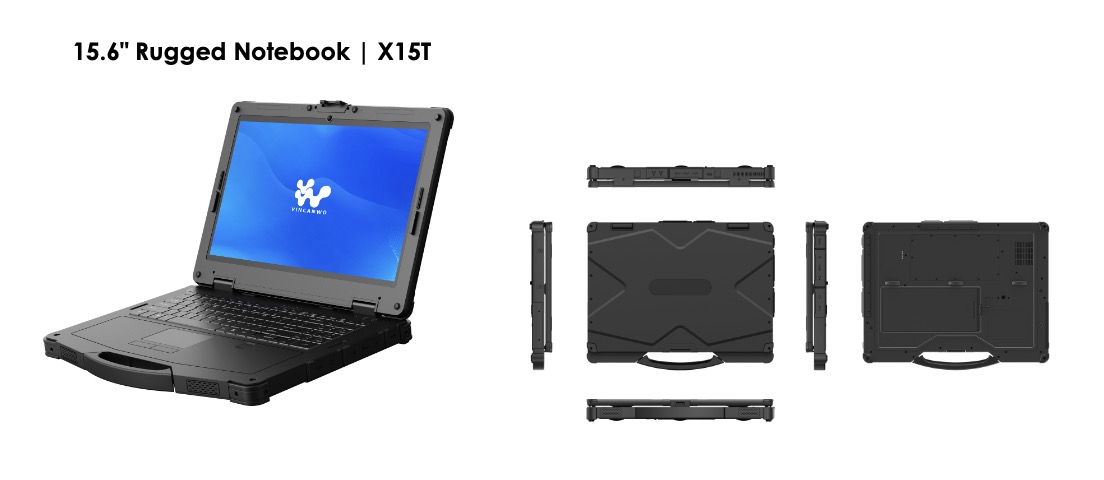

SKU | I22J/Q225M Rugged Notebook | X14T Rugged Notebook | X15T Rugged Notebook |
Size | 12.2” | 14" | 15.6” |
Dimension (mm) | 319.6x216x24.3 | 363.2x287.4x42.1 | 407x305.8x45.5 |
Weight (g) | 1500g | 2850g | 3300g |
Device Color | Black | Black | Black |
LCD | 12.2'' IPS 16:10, 1920*1200 280 nits (Q225M) 650 nits/280 nits (I22J) | 14” FHD 16:9, 1920*1080, 1000nits | 15.6'' FHD 16:9, 1920*1080,750nits |
Touch Panel | Optional 10 points capacitive, G+G, Corning Gorilla Glass | Optional 10 points capacitive, G+G, Corning Gorilla Glass | Optional 10 point capacitive, G+G |
Camera | Front 5.0MP, Rear 8.0MP (EM-I22J) Front 5.0MP, Rear 13.0MP(EM-Q225M) | Front 2.0MP | Front 2.0MP |
Performance Parameter | I22J: Intel Celeron N5100 CPU OS: Windows 11 RAM: 8GB/4GB/16GB ROM: 128GB/64GB/256GB/512GB Q225M: ARM OCTA Core CPU OS: Android 11 RAM: 8GB ROM: 128GB | Intel Core™ i5-1135G7/I7-1165G7 CPU OS: Windows 11/10 RAM: 16GB ROM: 256GB/512GB/1TB | Intel i5-1135G7/I7-1165G7 CPU OS: Windows 11/10 RAM: 16GB ROM: 256GB/512GB/1TB |
I/O | TF Card x 1, SIM Card x 1 USB2.0 x 1, USB3.0 x 2 (I22J) USB2.0 x 2, USB3.0 x 1 (Q225M) Type-C x 1, HDMI x 1 DB9 x 2, RJ45 x 1, 12pin Pogo Pin x 1 Φ3.5mm standard earphone jack x 1 Φ3.5mm Power connector x1 (Q225M) Φ4mm Power connector x 1 (I22J) | SD Card x 1, SIM Card x 1 USB2.0 x 1, USB3.0 x 3, HDMI x 1 DB9 (RS232) x 1, RJ45 x 2 Φ3.5mm standard earphone jack x 1 POGO 5pin x 1, DC 19V 3.42A Power connector x 1 Passenger transfer card PCIE X4 solt or HDD x 1 (Optional) Anti theft lock hole x 1, Heat dissipation air outlet (right) x 1 | SD Card x 1, SIM Card x 1 USB2.0 x 1, USB3.0 x 3, HDMI x 1 DB9 (RS232) x 1, RJ45 x 2 Φ3.5mm standard earphone jack x 1 POGO 5pin x 1, DC 19V 3.42A Power connector x 1 Passenger transfer card PCIE X4 solt or HDD x 1 (Optional) Anti theft lock hole x 1, Heat dissipation air outlet (right) x 1 |
Power | AC100V ~ 240V, 50Hz/60Hz, DC 19V/3.42A (I22J) DC 5V/4A (Q22M)(Q225M) | AC100V ~ 240V, 50Hz/60Hz, DC 19V/3.42A/65W | AC100V ~ 240V, 50Hz/60Hz, DC 19V/3.42A |
Capacity | 7.4V/6300mAh+1000mAh (I22J) 3.7V/12600mAh (Q225M) | 7.4V/1750mAh+7.4V/6300mAh | 7.4V/1750mAh+7.4V/6300mAh |
Type | Removable polymer lithium battery | Double Lithium-ion polymer battery | Double Lithium-ion polymer battery |
Endurance | 8.5hrs+1hrs (I22J) 7hrs (Q225M) | 8.5hrs+30min | 8.5hrs (EM-X15U), 7+0.5hrs (EM-X15T) |
GNSS | GPS+Glonass (I22J/Q225M) GPS+Glonass+Beidou | Support GPS, Optional GPS+Beidou | Support GPS, Optional GPS+Beidou |
WiFi | 2.4G+5.8G, WIFI 802.11(a/b/g/n/ac) (I22J) 2.4G+5G, WIFI 802.11(a/b/g/n/ac) (Q225M) | WiFi 6, 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax | 2.4G+5.8G, WIFI 802.11(a/b/g/n/ac) (EM-X15U) WiFi 6, 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax (EM-X15T) |
Bluetooth | BT 5.0 (I22J) BT 4.2 (Q22M) BT 5.1(Q225M), Transmission distance: 10m | BT 5.1 Transmission distance: 10m | BT 4.2, BT 5.1 Transmission distance: 10m |
2G/3G/4G/5G (Optional) | I22J: LTE-FDD: B1/B3/B5/B7/B8/B20, LTE-TDD: B40, WCDMA: B1/B5/B8, GSM: 900/1800, (5G optional) SA&NSA:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 5G SA&NSA: LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE-TDD:B34/B38/B39/B40/B41/B42, WCDMA:B1/B5/B8 5G SA&NSA: LTE-FDD:B1/B3/B5/B8/B28, LTE-TDD:B34/B38/B39/B40/B41, WCDMA:B1/B8, N1/N28/N41/N78/N79 Q22M: WCDMA B1/B5/B8,GMS B3/B5/B8,TDD-LTE B38/B40/B41 FDD-LTE B1/B3/B5/B7/B8/B20 Q225M: 3G WCDMA B1/B5/B8 4G TDD-LTE B34/B38/B39/B40/B41,FDD-LTE: B1/B3/B5/B8 5G NR N1/B28/B41/B78/B79 | LTE-FDD B1/3/5/7/8/20,LTE-TDD B40, WCDMA B1/5/8,GSM 900/1800 5G NR n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/ n66/n71/n77/n78/n79 LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD B34/B38/B39/B40/B41/B42/B43/B48 LAA B46,WCDMA B1/B2/B3/B4/B5/B6/B8/B19 | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD: B40, WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8 EM-X15T LTE-FDD B1/3/5/7/8/20 ,LTE-TDD B40 WCDMA B1/5/8,GSM 900/1800 5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/ n66/n71/n77/n78/n79, LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66/B71, LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48, LAA: B46, WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 |
NFC | Optional, 13.56MHz, Card reading distance: 4cm Support ISO/IEC 14443A/B/15693/18092/mifare (I22J) Built-in, 13.56MHz, Card reading distance: 4cm | Optional, 13.56MHz, Support ISO/IEC 14443A/B/15693/18092/mifare protocols Card reading distance: 4cm | Optional, 13.56MHz, Support ISO/IEC 14443A/B/15693/18092/mifare protocols Card reading distance: 4cm |
Fingerprint | / | SPI fingerprint (Power on login) | SPI fingerprint (Power on login) |
1D | Optional, Optical resolution: 5mil/scan speed: 50 times/s | / | / |
2D | Optional, Optical resolution: 5mil/scan speed: 50 times/s | / | / |
IP Grade | IP65 | IP65 | IP65 |
Operating Temperature | -30 ~ +70°C | -30 ~ +70°C | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C | -40 ~ +80°C | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% | 5 ~ 95% | 5 ~ 95% |
>Product Advantages:
· Extreme durability: Reinforced chassis, sealed ports, and protective casing enable them to operate reliably in dusty, wet, or rough conditions, unlike regular laptops.
· Weather resistance: Can withstand rain, snow, humidity, and strong winds without damage.
· Shock resistance: Built to handle drops, bumps, and vibrations with minimal impact on functionality
· Extended battery life: Often feature longer battery life to support extended field operations
· Reliable performance: Designed to maintain functionality even in extreme conditions, ensuring consistent performance in challenging environments
· Specialized features: Include features like glove-compatible touchscreens, brighter displays for outdoor visibility, and specialized mounting options
· Longer lifespan: Due to the robust construction, rugged notebooks typically last longer than standard laptops
Our Vincanwo Group brand Rugged Notebooks X86 Series | I22J, Q225M, X24T, X15T , also called rugged laptops, offer significant advantages in durability, allowing them to withstand harsh environments like extreme temperatures, dust, water, and physical impacts, making them ideal for use in construction, military, field research.
>Product Application
Our Vincanwo Group brand Rugged Notebooks X86 Series | I22J, Q225M, X24T, X15T are used in many industries and outdoor activities because of withstand harsh conditions.
Industries
· Construction: Used to manage project plans and access blueprints
· Field service: Used to access technical manuals, update work orders, and communicate with teams
· Military: Used for military operations
· Oil, gas, and mining: Used for project management, communication, inventory and safety management, and data analysis
Outdoor activities
Hiking: Used for hiking and camping because they are water-resistant, shockproof, and dustproof
>Warranty
All our products come standard with 3 years warranty.
We also offer up to 5 years extension of our product warranty at the time of sale.
Warranty starts from the time the product is shipped to you from Vincanwo Group. You do not need to register or save the receipt as long as the unit still has the serial number we can look up the warranty term and start date.
Vincanwo Group wants to be your preferred business partner. We will gladly work to help you with all sorts of computer related issues you encounter via our free technical support. If an RMA is needed, we understand the importance of getting you an accurate and long-lasting fix, and getting back up and running quickly.
We keep a wide array of parts on hand for repairs, but sometimes parts will need to be ordered and this can cause delay in repairs.
Vincanwo Group Warranty Includes:
· Repair of the system, Including labor
· Components needing replacement
· If necessary, re-installation of original OS
· Return shipment to customer
Events NOT Covered by Standard Warranty Include:
· Physical damage
· Damage caused by unauthorized repairs
· Use of product outside of its approved environment
· Exposure to direct sunlight, unless explicitly approved
· Inbound Shipping
· Software
>FAQ
How to require a quotation ?
Please send details of your requirement to us by E-mail, we will send quotation to you within 1 working day.
How to require a free sample?
Please send your sample requirement to us, and we will check and confirmed to you within 2 days. Normally we refund sample once the order quantities are in 100pcs.
What is your MOQ ?
NO MOQ request, even with your own specifications.
What is your order Lead-time?
Order Quantity less than 100pcs, and the production lead-time is 3days, surely we have great capacity to handle the large order quantities. For example: 1x40H container loads 8,000 - 10,000pcs and our production lead time normally is 15days after order deposit.
What is your export product package ? How to transport ?
Our product export is single pack. For oversea customers, we will shipping with the durable packages or pallets, or transport by train, by sea or by air, as well by DHL, UPS, etc.
What is your payment term ?
With different price & quantity of contract, We accept different payment term as below:
1, TT for samples (Quantity less than 100units).
2, 30% T/T in advance, balance T/T before shipment (Quantity less than 1000units).
3, 20% T/T in advance, balance O/A 30-60days (Quantity 1000-8000units).
What is your price term ? How to loading cargoes?
We can do price term as below:
1, EXW factory, including VAT tax, Loading cargoes in our factory
2, FOB Shenzhen or Guangzhou Port, and container loading cargoes in our factory.
3, CIF Port of delivery.
4, Door-to-door shpment.
