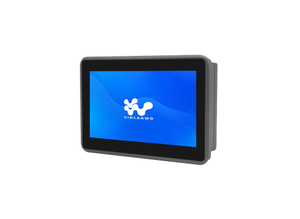

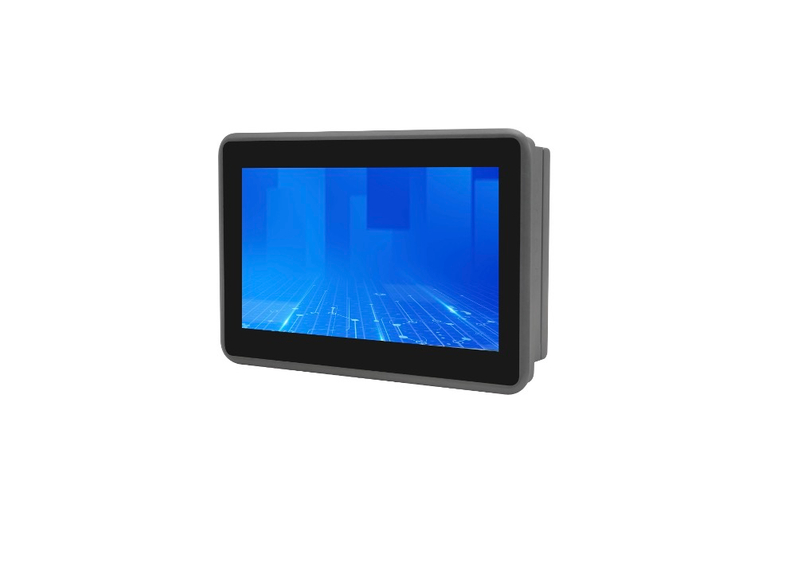

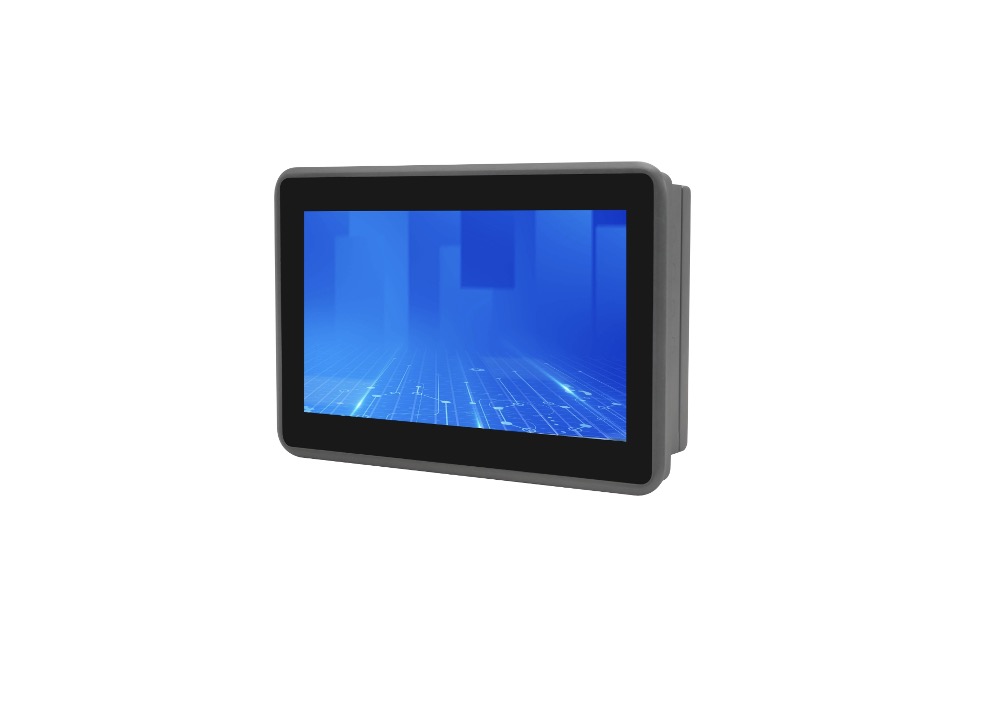

SKU | 13.3" industrial display with setpoint IPM-133 |
Screen Size | 13.3inch |
Resolution | 1920*1080 |
Viewing Angle | 85/85/85/85 |
Brightness | 300 cd/m2 |
Contrast Ratio | 800:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
USB | 1 *USB (For touchscreen cable) |
Display | 1 *HDMI, 1 *VGA |

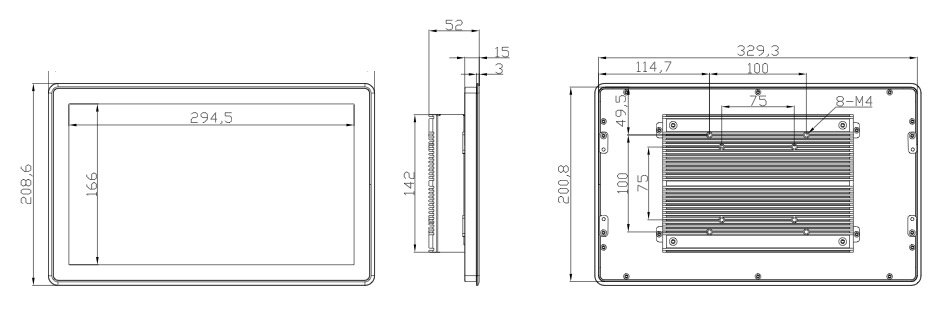

Dimensions (mm) | 337*208.6*52 |
Recommended size of holes openning (mm) | 331.5*203 |
Gross weight (kg) | 3.50kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +60°C |
Storage Temperature | -40 ~ +70°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage:
1,High quality and durability:
Using high-quality materials and manufacturing processes, it can withstand harsh industrial environments and has a long service life. Its shell design is sturdy, with a high level of dust and water resistance. Some products have a dust resistance level of IP65 and a shock resistance level of 1, which can adapt to harsh industrial environments.
2,Professional performance and stability:
Normal operation in extreme environments such as high and low temperatures, with a typical operating temperature range of -40 to +85 degrees Celsius. High resolution and precise color ensure the authenticity of monitoring data, whether it is complex process flow diagrams or fine image processing, they can be perfectly displayed.
3,Flexible installation and interface:
Supports multiple installation methods, such as wall mounting, brackets, etc., making it easy to deploy flexibly according to different work scenarios. At the same time, it supports multiple signal interfaces such as VGA, RGB, DVI, HDMI, etc., making it easy to connect different signal sources and meet diverse application needs.
4,Advanced features and intelligence:
Equipped with electrical measurement function, capable of real-time monitoring of electrical parameters such as voltage and current, providing safety assurance for industrial production. In addition, it supports GPIO (General Purpose Input/Output) control, which can be linked with other devices for intelligent management of automated production lines. Integrated touch screen technology, supporting multiple touch screen gesture operations, making operations more convenient and efficient
5,Network communication function:
Supports network communication function, realizes remote monitoring, data transmission and remote management, and creates an efficient information management system for enterprises.
>Product Application
1,Industrial automation control:
Used in CNC machine tools and robot control to display operating interfaces, monitor production processes, adjust parameters, and achieve remote control. Assembly line monitoring helps operators discover and solve problems in a timely manner by displaying the operating status and equipment parameters of the production line in real time.
2,Security monitoring:
Used to display real-time video images from surveillance cameras, supporting multi-channel video input and switching, making it convenient for users to conduct real-time monitoring and video playback. In addition, it also supports automatic video analysis function, which can automatically detect abnormal situations and issue alerts, improving the efficiency and accuracy of security monitoring.
3,Transportation:
In the traffic command center, it is used to display information such as traffic flow and real-time road conditions, helping traffic management personnel make reasonable scheduling decisions. In terms of public transportation information display, providing accurate traffic information facilitates passengers in planning their travel routes.
4,Communication and Energy: Used in communication base stations, substations, and other places to display equipment status, monitoring data, and alarm information. In the aerospace field, it is used for monitoring, navigation, and display systems of aircraft.
5,Mechanical equipment and instruments:
Embedded into mechanical equipment and instruments as a display and operation interface, providing intuitive device status display and parameter setting functions.
6,Transportation and Logistics:
In the field of transportation and logistics, it is used to display traffic information, logistics data, cargo status, etc., to assist management personnel in scheduling and monitoring.
7,Energy and power industry:
Used to display information such as power parameters, grid status, equipment status, etc., supporting remote monitoring and fault alarm.
8,Environmental Monitoring and Meteorological Station:
Used in environmental monitoring and meteorological stations to display environmental parameters, meteorological data, and other information, supporting real-time data updates and remote monitoring.
9,Food processing and pharmaceuticals:
In the food processing and pharmaceutical industries, it is used to display production processes, quality control parameters, and other information to ensure that products meet hygiene and safety standards.
10,Other industrial environments:
In addition, it is also suitable for industrial environments such as petroleum, chemical, metallurgical, mining, etc., used to display various industrial parameters and equipment status, improve production efficiency and safety.
