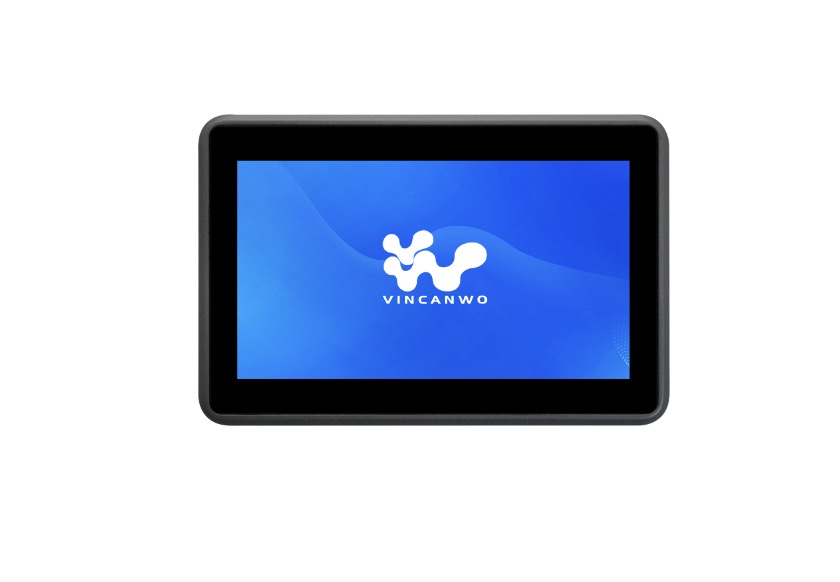

SKU | 7"Compact Industrial Display IPM-7 |
Screen Size | 7inch |
Resolution | 1024*600 |
Viewing Angle | 85/85/85/85 |
Brightness | 300 cd/m2 |
Contrast Ratio | 500:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
USB | 1 *USB (For touchscreen cable) |

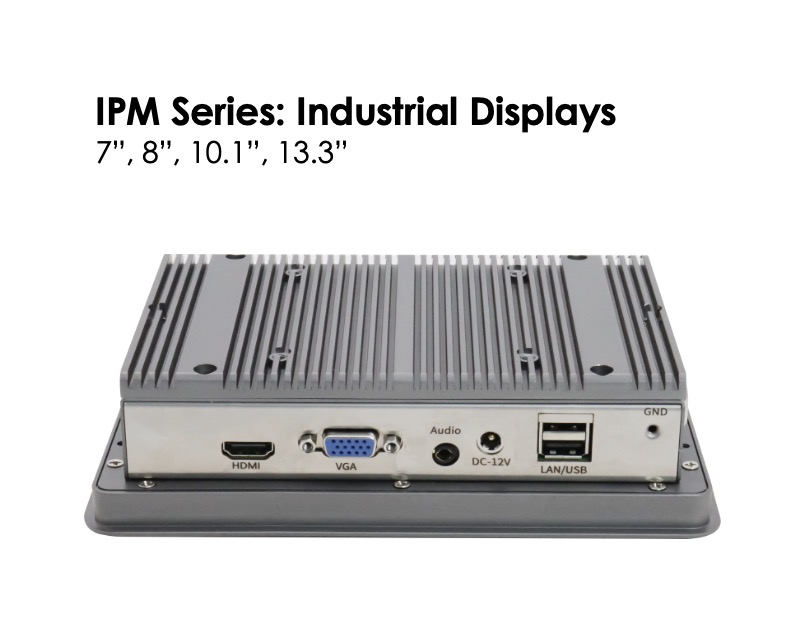

Display | 1 *HDMI, 1 *VGA |

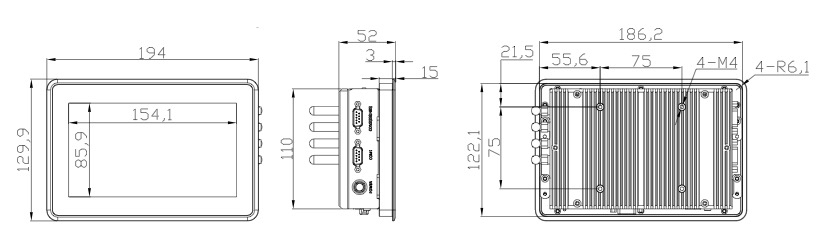

Dimensions (mm) | 194*129.9*52 |
Recommended size of holes openning (mm) | 188*124 |
Gross weight (kg) | 1.8kg |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +60°C |
Storage Temperature | -40 ~ +70°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Product Advantage:
1, High resolution and clarity: typically have high resolution and can display various information clearly and accurately, making our 7"Compact Industrial Display IPM-7 suitable for use in space constrained environments.
2, Strong durability: Due to the complex and ever-changing industrial environment, compact industrial displays require excellent durability to cope with harsh working conditions.
3, High brightness and wide viewing angle: In order to cope with complex lighting environments, compact industrial displays usually adopt high brightness backlight design, combined with wide viewing angle panels, to ensure clear viewing of screen content from all angles and reduce visual fatigue.
4, Wide temperature operating range: Capable of stable operation within a wide temperature range of -30 ° C to+70 ° C, unaffected by changes in ambient temperature, ensuring 7*24 hour uninterrupted operation of the production line.
5, Multiple installation methods: Supports various installation methods such as wall mounted and bracket mounted, making it easy to flexibly deploy according to different work scenarios and improving the utilization of workspace.
6, Multiple signal interfaces: Supports VGA, HDMI, DVI and other signal interfaces, making it easy to connect different signal sources and meet diverse application needs.
7, High precision touch experience: adopting advanced capacitive or resistive touch screen technology, supporting multi touch, fast response speed, accurate positioning, and ensuring smooth operation experience even in harsh industrial environments.
>Product Application
1, Automated production line control: as the core of human-computer interaction, real-time monitoring of production status, adjustment of parameter settings, ensuring precise control of production processes, and improving production efficiency.
2, Medical equipment display: In the medical field, compact industrial displays are widely used in various portable medical devices and instruments, providing real-time and accurate data support for medical staff.
3, Traffic monitoring and scheduling: In the traffic monitoring system, compact industrial displays integrate functions such as video surveillance, map navigation, and information scheduling to ensure the smooth operation of the transportation system.
>Warranty
All our products come standard with 3 years warranty.
We also offer up to 5 years extension of our product warranty at the time of sale.
Warranty starts from the time the product is shipped to you from Vincanwo Group. You do not need to register or save the receipt as long as the unit still has the serial number we can look up the warranty term and start date.
Vincanwo Group wants to be your preferred business partner. We will gladly work to help you with all sorts of computer related issues you encounter via our free technical support. If an RMA is needed, we understand the importance of getting you an accurate and long-lasting fix, and getting back up and running quickly.
We keep a wide array of parts on hand for repairs, but sometimes parts will need to be ordered and this can cause delay in repairs.
Vincanwo Group Warranty Includes:
· Repair of the system, Including labor
· Components needing replacement
· If necessary, re-installation of original OS
· Return shipment to customer
Events NOT Covered by Standard Warranty Include:
· Physical damage
· Damage caused by unauthorized repairs
· Use of product outside of its approved environment
· Exposure to direct sunlight, unless explicitly approved
· Inbound Shipping
· Software
>FAQ
How to require a quotation ?
Please send details of your requirement to us by E-mail, we will send quotation to you within 1 working day.
How to require a free sample?
Please send your sample requirement to us, and we will check and confirmed to you within 2 days. Normally we refund sample once the order quantities are in 100pcs.
What is your MOQ ?
NO MOQ request, even with your own specifications.
What is your order Lead-time?
Order Quantity less than 100pcs, and the production lead-time is 3days, surely we have great capacity to handle the large order quantities. For example: 1x40H container loads 8,000 - 10,000pcs and our production lead time normally is 15days after order deposit.
What is your export product package ? How to transport ?
Our product export is single pack. For oversea customers, we will shipping with the durable packages or pallets, or transport by train, by sea or by air, as well by DHL, UPS, etc.
What is your payment term ?
With different price & quantity of contract, We accept different payment term as below:
1, TT for samples (Quantity less than 100units).
2, 30% T/T in advance, balance T/T before shipment (Quantity less than 1000units).
3, 20% T/T in advance, balance O/A 30-60days (Quantity 1000-8000units).
What is your price term ? How to loading cargoes?
We can do price term as below:
1, EXW factory, including VAT tax, Loading cargoes in our factory
2, FOB Shenzhen or Guangzhou Port, and container loading cargoes in our factory.
3, CIF Port of delivery.
4, DAP place of delivery.
