| SKU | IPM-104 |
| Screen Size | 10.4" |
| Resolution | 1024*768 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 500 cd/m2 |
| Contrast Ratio | 900:1 |
| Touch Screen | Capacitive, Resistive |
| Controller | USB interface |
| Durability | Cpacitive: ≥ 5M times / Resistive: ≥ 100,000 times |
| USB | 1 *USB (For touchscreen cable) |
| Display | 1 *HDMI, 1*VGA |

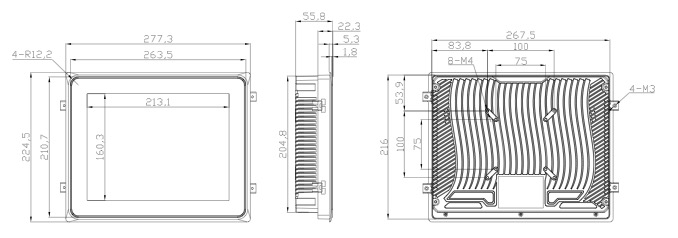

| Dimensions (mm) | 277.3*224.5*55.8 |
| Hole Sizes (mm) | External: 270*218 |
| Internal: 266*213 | |
Individual Gross Weight (KG) | 2.25 |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30 ~ +60℃ |
| Storage Temperature | -40 ~ +70℃ |
Storage Humidity *Non-condensing | 5 ~ 95% |
| Power Input | DC 12V (3A) |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Touch Screen Cable, 1 *VGA cable, 1 *Manual, 1 *Warranty Card |
IPM-104 10.4" Fanless Industrial Display has many advantages, including:
Durability:
Designed to be reliable and durable, minimizing mechanical failures and extending their lifespan. They can withstand shock and vibration and are resistant to dust and debris.
Compact size:
Can be integrated into small spaces without sacrificing performance.
Energy efficiency:
More energy efficient than traditional fan-cooled systems because they use passive cooling instead of fans.
Quiet operation:
Run silently because they don't have moving parts.
Ingress protection:
Meet different levels of ingress protection to protect internal components from dust, debris, and potentially water.
Ease of integration:
Easy to integrate into industrial automation.
Sustainability:
Help businesses achieve sustainability goals.
IPM-104 10.4" Fanless Industrial Display works by using heat sinks to transfer heat away from internal components to the computer's aluminum body.
