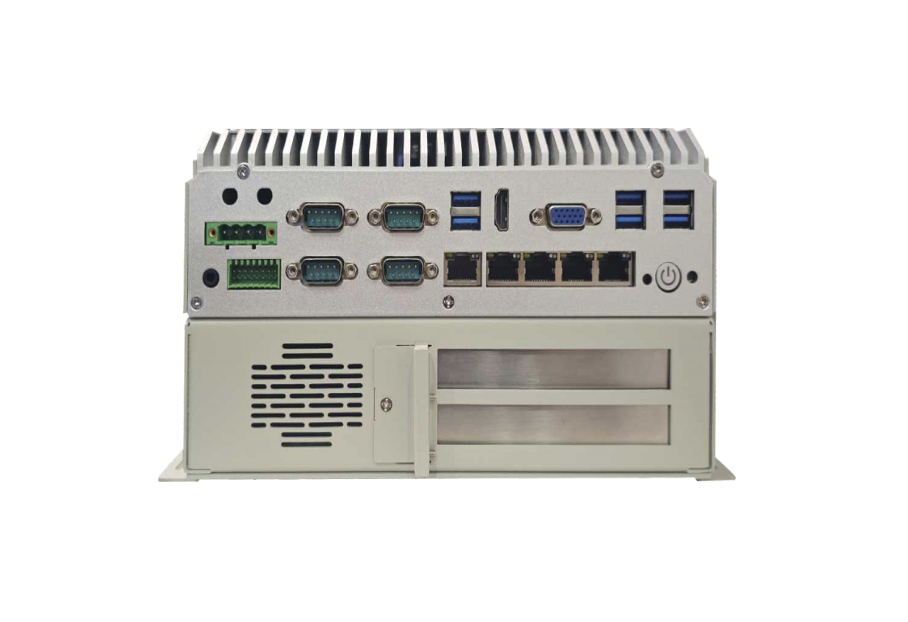

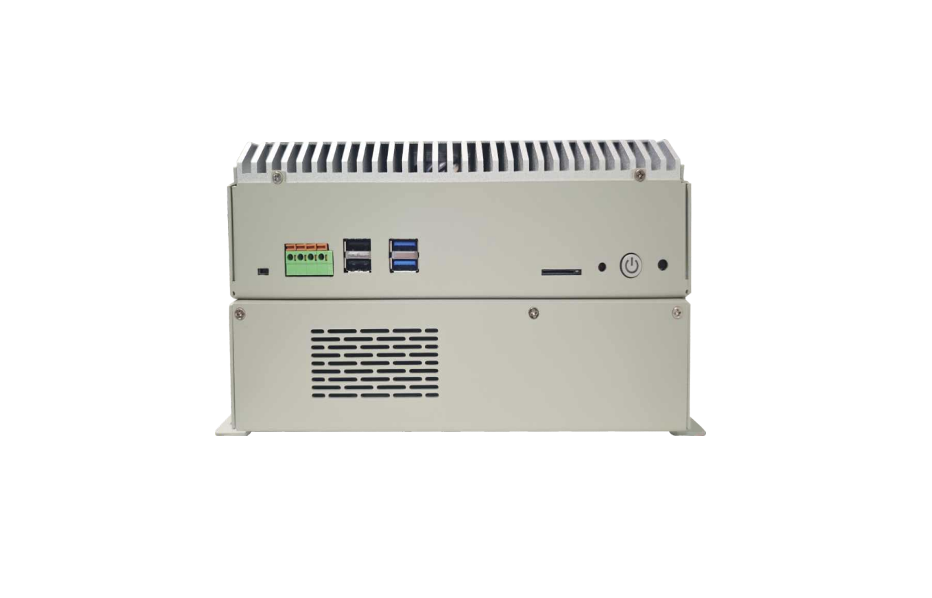

Rugged Edge Platform Computer | FPC
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
Model | Rugged Edge AI Platform Computer | FPC |
Primary Components | |
Processor Family | Intel Core I series 13th Generation Raptor Lake |
Processor Model | Core i3-13100TE Optional, Core i5-13500TE Optional, Core i7- 13700TE Optional, or 14th Generation |
Processor Speed | Up to 4.8 Ghz |
Memory Type | 2x DDR5 SO-DIMM |
Memory Support | 8GB, 16GB, 32GB, 64GB |
Storage Type | 1x M.2 NVME SSD Slot (2242/2280), 2x 2.5" SATA Drive Bay for SSD/HDD (easily accessible) |
Storage Support | Accessible Bays Support RAID 0/1, M.2 and 2.5": 256GB - 1TB |
External I/O Ports | |
USB | 4x USB 3.2 |
Serial / Com | 4x COM |
Serial Protocol Detail | RS-232 Defualt/RS-422/RS-485 |
Ethernet / LAN | 2x RJ45 2.5 GbE LAN |
Video Outputs | 1x DisplayPort, supports DP++, 1x HDMI |
Other Ports | Optional 2x additional 2.5Gbe LAN, 2 additional USB 3.2, 8-bit GPIO |
Audio Ports | 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack |
Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power | |
Input Voltage Range | 9-32V DC |
Standard Power Adapter | 300W No Expansion slot-NO PCIe, Expansion slot 2x PCIe and 4x PCIe use 450W |
Operating Systems | |
Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro |
Linux | Linux Ubuntu 22.04 or above (Contact your sales rep for more information) |
Compatibility | |
Security Hardware | Supports Intel Vpro i5/i7, TPM 2.0 |
Expansion Slots | |
Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option) |
Video Card Support | 125W PCIe x16 |
Thermal & Environmental | |
Operating Temperature | -30°C - +70°C |
Storage Temperature | -40°C - +80°C |
Cooling Solution | Passive – Fanless with Heatsink |
Storage Humidity | 10% – 90% Non-condensing |
Enclosure | |
Material | Aluminum, SECC Steel Chassis |
Color | Silver,Gray |
Led Indicator Ligh | Power |
Control Buttons | Power Button |
Mounting Options | DIN Rail Mount, Wall Mount |
Peripherals & Wireless Connectivity | |
WiFi | Optional WiFi 6, A/B/G/N/AC/AX -6 via M.2 E-Key slot |
Bluetooth | Optional Bluetooth 5.3 |
Sim Card | 1x Nano SIM Card Slot |
Weight / Dimensions | |
Weight | 3.90kg |
Dimensions | 229x208x133.7 mm |
| Component | Specifications |
|---|---|
| Processor | Intel® Core™ i7-12800HX (16C/24T, 5.0GHz) / AMD Ryzen™ Embedded V3000 Series |
| AI Acceleration | Dual M.2 B+M Key for NVIDIA Jetson AGX Orin (275 TOPS) / Intel Movidius VPU |
| Thermal Design | Conduction-Cooled (-40°C to 85°C), VITA 48.8 REDI Compliant |
| Expansion | 4× M.2 Slots (PCIe Gen4 x4), PCIe x16 Gen4 (75W via MXM) |
| Memory | 2× SODIMM DDR5 (128GB ECC) + LPDDR5X CAMM(64GB AI Buffer) |
| Storage | 2× NVMe Gen4 (RAID 0/1), SATA 3.0 DOM (Boot) |
| Networking | 4× TSN 2.5GbE(Time-Sensitive Networking), 10GbE SFP+, 5G NR (M.2) |
| Rugged Rating | MIL-STD-810H (Shock/Vibe), IP67 Sealed, MIL-STD-461G(EMC) |
| Accelerator | INT8 TOPS | Use Case |
|---|---|---|
| Integrated (Intel Iris Xe) | 4.1 | Basic object detection |
| NVIDIA Jetson AGX Orin | 275 | Autonomous swarm robotics |
| Hailo-15 | 60 | Real-time 8K defect inspection |
| Intel Movidius 3700VC | 13 | Multi-sensor fusion |
| Industry | Application | FPC Configuration |
|---|---|---|
| Defense | UAV Swarm Control | i7-12800HX + 2× Jetson Orin + SOSA-aligned I/O |
| Energy | Pipeline Inspection Robot | AMD V3000 + Hailo-15 + ATEX Zone 1 Kit |
| Transport | Autonomous Mining Truck | i7-12800HX + NVIDIA RTX 5000 Ada(MXM) + EN 50155 Kit |
| Manufacturing | High-Speed AOI | AMD V3000 + Movidius VPU + GigE Vision PoE++ |
| Module | Function | Bandwidth |
|---|---|---|
| FPC-MX5000 | NVIDIA RTX 5000 Ada GPU | PCIe Gen4 x16 (75W) |
| FPC-FB32 | PROFINET IRT Master | Dual 2.5GbE TSN |
| FPC-AI8 | 8× Isolated AIO (24-bit ADC) | SPI @ 100kHz |
| FPC-LIDAR | 360° Ouster OS-3 Lidar Interface | 10GbE AVB |
| Test | Standard | Performance |
|---|---|---|
| Thermal Shock | MIL-STD-810H Method 503.6 | -40°C ↔ +85°C (500 cycles) |
| Sand/Dust | IP6X | 8hr @ 20m³/hr flow |
| Explosive Atmosphere | ATEX/IECEx | Zone 1/21 (with FPC-ATEX-KIT) |
| Vibration | EN 61373 Cat 1 | 5Grms (5-150Hz) |
