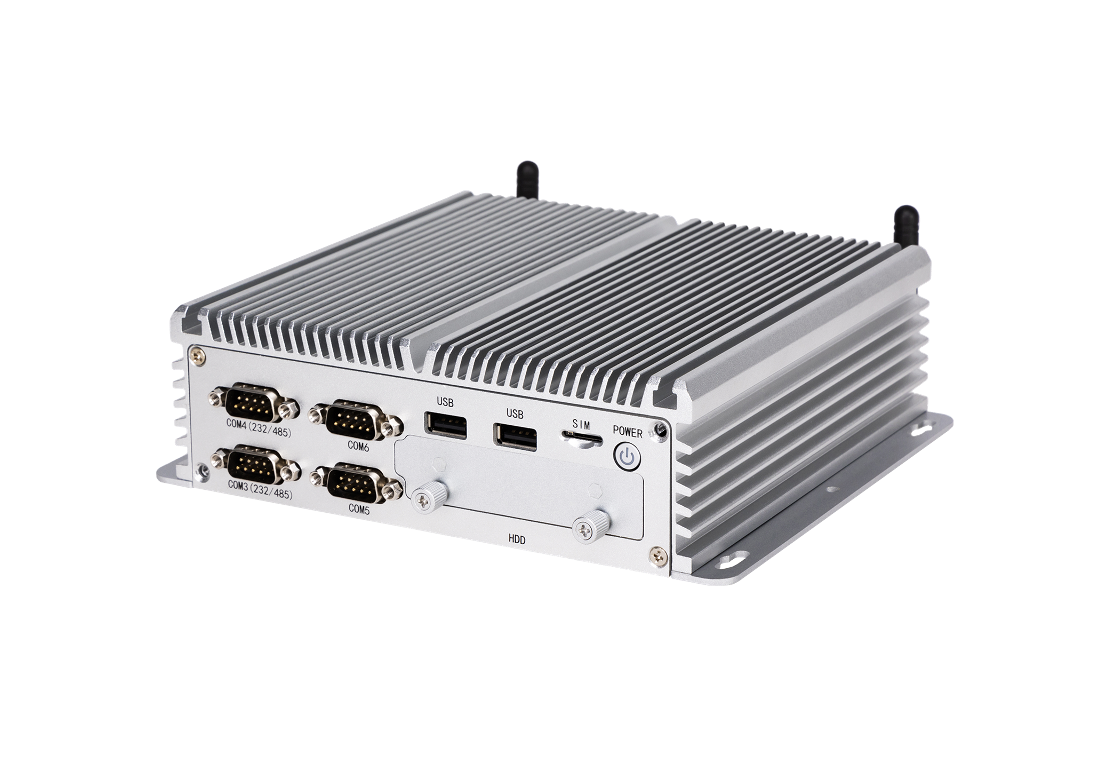

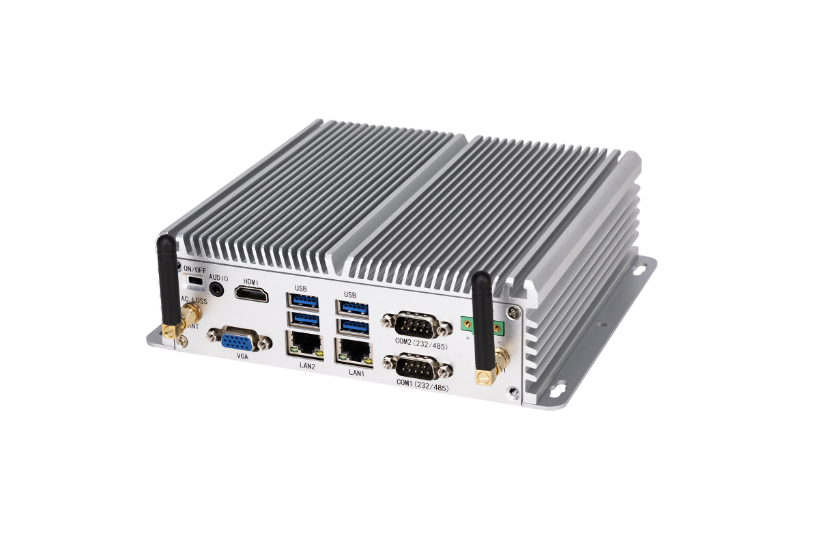

VW-100
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
| Model | VW-100 | ||||||||
| Primary Components | Processor Family | Intel Processors | |||||||
| Processor Model | 10th/8th/6th|i3/i5/i7,J1900,N95,N97,N100 | ||||||||
| Memory Type | DDR3, DDR4 | ||||||||
| Memory Support | 4GB, 8GB, 16GB | ||||||||
| Storage Type | 1x MSATA | 1x M.2 SATA | ||||||||

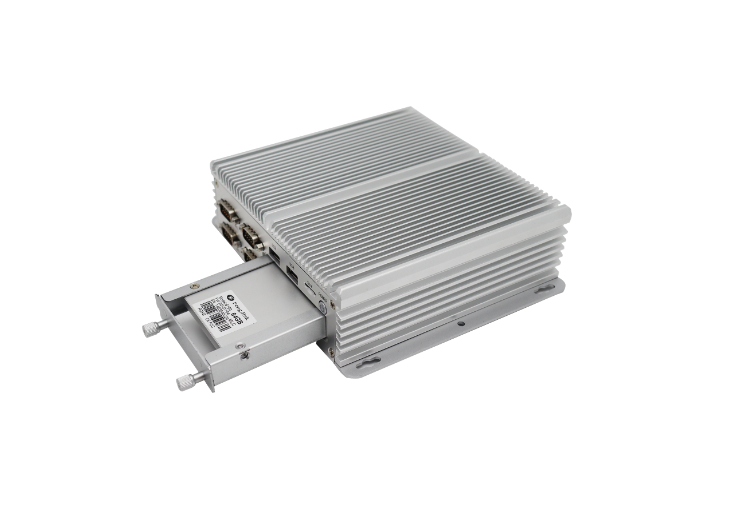

| Storage Support | MS:128GB~512GB | M.2: 128GB~1TB | 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot | ||||||||
| Operating Systems | Windows | Windows 10 IoT, Windows 10 Pro, Windows 11 Pro | |||||||
| Linux | Linux Ubuntu 20.04 or above (Contact your sales rep for more information) | ||||||||
| Peripherals & Wireless Connectivity | WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 | |||||||
| Bluetooth | Optional Bluetooth 5.3 | ||||||||
| External I/O Ports | USB | 4x USB3.0, 2x USB2.0 | |||||||
| Serial/COM | 6x RS232, option RS485 | ||||||||
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN, 2.5Gb Ethernet in four LAN ports | ||||||||
| Video Outputs | 1x HDMI, 1x VGA | ||||||||
| Other Ports | 1x AUDIO, 1x nano SIM slot option | ||||||||
| Power Input Port | DC-in Jack (Phoenix Type) | ||||||||
| Expansion Slots | Others | / | |||||||
| Power | Standard Power Adapter | 12V DC Adapter and power cable, 5A, 60W | |||||||
| Input Voltage Range | 9~36V DC Wide-range Voltage Power Input | ||||||||
| Weight / Dimensions | Weight | 1.10 kg | |||||||
| Dimensions | 165x125x59.1 mm | ||||||||
| Thermal & Environmental | Operating Temperature | -30°C ~ 70°C | |||||||
| Storage Temperature | -40°C ~ 80°C | ||||||||
| Cooling Solution | Passive – Fanless, Fan | ||||||||
| Humidity Range | 10% – 95% Non-condensing | ||||||||
| Enclosure | Material | Aluminum | |||||||
| Color | Black | ||||||||
| Led Indicator Light | HDD Access, Power | ||||||||
| Mounting Options | DIN Rail Mount, Wall Mount, Desktop | ||||||||
Fanless Passive Cooling: All-aluminum chassis with optimized heat dissipation enables -20°C to 60°C operation, IP40 dust resistance, and zero mechanical wear for long-term reliability.
Industrial-Grade Connectivity: Dual Gigabit Ethernet (RJ45), 4× USB 3.0/2.0, 2× RS232/485 (software-configurable), HDMI 2.0, and optional wireless (Wi-Fi 6/BT 5.2, 4G/5G) for seamless device integration.
Flexible Performance Scaling: Available with Intel Celeron J4125 (4-core, 1.5–2.7 GHz, 10W TDP) or Intel Core i3-10110U/i5-1035G1 for light-to-medium edge computing workloads.
Wide Power & Security: 9–36V DC input (with overvoltage/overcurrent protection) and optional redundant power; TPM 2.0 for hardware-level data security.
OS & Software Compatibility: Supports Windows 10 IoT/LTSC, Linux (Ubuntu, Debian), and embedded OS to run SCADA, MES, or custom automation software.
| Parameter | Details |
|---|---|
| Processor | Intel Celeron J4125 (4-core, 1.5–2.7 GHz) / Core i3-10110U / i5-1035G1 |
| Memory | 1× DDR4 SO-DIMM, up to 32GB |
| Storage | 1× M.2 2280 (NVMe/SATA SSD)+optional 2.5" SATA III |
| Networking | 2× Gigabit Ethernet (RJ45, Intel i211-AT) |
| I/O Ports | 4× USB 3.0, 2× USB 2.0, 2× RS232/485 (isolated), 1× HDMI 2.0, 1× VGA, DC-in (9–36V) |
| Expansion | 1× M.2 E-key (Wi-Fi 6/BT 5.2), 1× M.2 B-key (4G/5G with SIM slot) |
| Power | 9–36V DC, 60W adapter (AC 100–240V input); redundant power optional |
| Dimensions | 160×120×45 mm (compact industrial form factor) |
| Weight | 0.9 kg (aluminum chassis) |
| Operating Temp | -20°C to 60°C (storage: -40°C to 85°C) |
| Certifications | CE, FCC, RoHS, ISO 9001 |
Industrial Automation: Runs PLC programming, HMI, and SCADA software to control production lines and monitor equipment status.
IoT Gateway: Aggregates sensor data via RS232/485/Ethernet and forwards to cloud platforms (AWS, Azure) with low latency.
Edge Computing: Processes real-time data locally to reduce cloud bandwidth usage and improve response time for quality control or predictive maintenance.
Network Security: Acts as a compact firewall or VPN gateway for industrial networks using OpenWRT or pfSense.
Embedded Control: Powers kiosks, digital signage, and medical devices requiring silent, reliable operation in public or clinical environments.
Fanless Reliability: Eliminates fan failures and dust ingress, ensuring 99.99% uptime for 24/7 industrial systems.
Flexible Deployment: Multiple mounting options and wide power input adapt to diverse industrial environments.
Cost-Effective Performance: Scalable CPU options balance performance and TCO for light-to-medium workloads.
