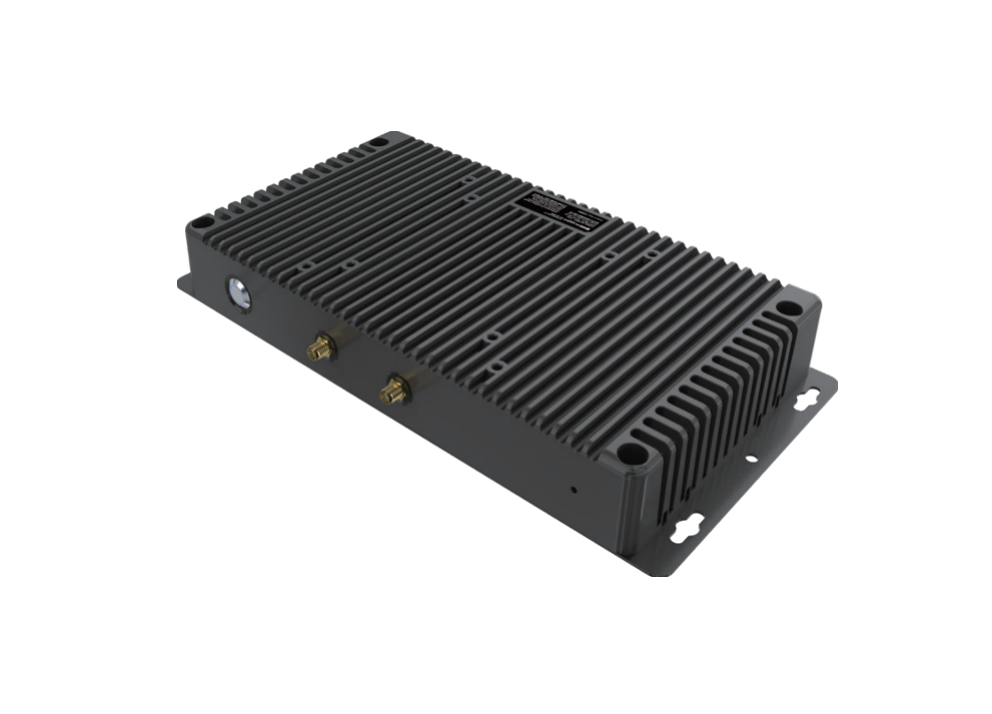

Embedded Box PC i5-1235U/i7-1255U | B10A
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
Model | Embedded Box PC i5-1235U/i7-1255U B10A | |
Configuration | CPU | i5-1235U/i7-1255U |
Memory | 8/16/32GB RAM | 128GB/256GB/512GB | 1T | 2T | |
OS support | Windows 11 | |
Basic Parameter | Dimension | 264x135.2x37.2 mm |
Weight | 1.0 kg | |
Color | Black | |

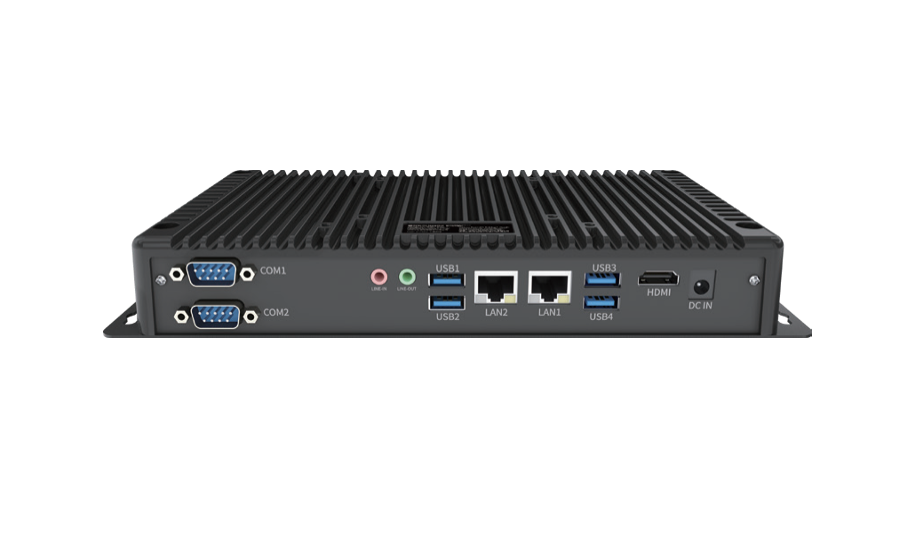

I/O | USB3.0x4, RJ45x2, DC 19Vx1, Earphone jackx1, DB9x2, HDMIx1, M2x1 | |
Power | AC100V to 240V, 50Hz/60Hz, Output DC 19V/3.42A | |
Communication | WIFI | WIFI 802.11(a/b/g/n/ac/ax ) 2.4G+5G, supports WIFI6 |
Bluetooth | BT5.1 | |
4G (Optional) | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 | |
Reliability | Operate Temperature | -30℃ to 70℃ |
Store Temperature | -40℃ to 80℃ | |
Humidity | 95% Non-Condensing | |
| Category | B10A Specifications |
|---|---|
| Processor | Intel® Core™ i7-1255U(10C/12T, 4.7GHz) or i5-1235U(10C/12T, 4.4GHz) |
| Thermal Design | Fanless (-25°C to 70°C), Copper Heatpipe + Aluminum Chassis (200W/mK) |
| OS Support | Windows 11 IoT LTSC, Linux Yocto 4.0, Ubuntu Core |
| Memory | 2× DDR5 SODIMM (64GB Max, ECC Optional) |
| Storage | Dual M.2 (NVMe PCIe 4.0 + SATA), 2.5" SATA Bay(Hot-Swap Tray) |
| Industrial I/O | 2× 2.5GbE TSN (Intel I225), 4× USB 3.2 Gen2, 4× RS-232/485 (Isolated), 8-CH DIO (Opto-Isolated) |
| Expansion | M.2 Key-B (5G/4G/LoRa), M.2 Key-E (Wi-Fi 6E/BT), PCIe x4 Slot (via Riser) |
| Power Input | 9-36VDC (Ignition Control), PoE++ (802.3bt, 90W), ATX 24-Pin |
| Ruggedness | IP40 (DIN-Rail Mount), MIL-STD-810H (5Grms Vibration), EN 50155 (Rail) |
Edge AI Capabilities
Intel Iris® Xe Graphics (96EU): 1.7 TFLOPS for OpenVINO inference (4× 4K streams @ 30fps)
M.2 AI Accelerator: Supports Hailo-8 (26 TOPS) or Intel Movidius VPU
Deterministic Networking
Time-Sensitive Networking (TSN): IEEE 802.1AS-2020 sync for PROFINET IRT/EtherCAT
Dual-Bypass LAN: Failover <10ms (critical for substation automation)
Extreme Environment Readiness
Condensation Control: Conformal Coating (MIL-I-46058C)
Arctic Mode: -40°C startup w/ PTC Pre-Heater (optional)
Shock Protection: Vibration-Dampened SSD Mounts (IEC 60068-2-27)
| Industry | Use Case | Recommended B10A Config |
|---|---|---|
| Factory Automation | Machine Vision QC | i7-1255U + Hailo-8 + PoE++(Cognex cameras) |
| Energy | Solar Farm Controller | i5-1235U + LoRaWAN + -40°C Kit |
| Transportation | Rolling Stock Telematics | i7-1255U + EN 50155 Kit + M12 I/O |
| Smart City | Traffic Edge Processor | i5-1235U + 4G/LTE + NVIDIA Metropolis |
| Feature | Consumer Mini-PC | B10A Industrial Advantage |
|---|---|---|
| Temperature Range | 0°C to 40°C | -40°C to 70°C(fanless) |
| Power Tolerance | ±5% Voltage | 9-36VDC(300% surge) |
| I/O Reliability | USB-only | Opto-Isolated COM/DIO |
| Lifecycle | 1-3 years | 10-Year Intel Longevity |
