SKU | 19” Fanless Panel PC | VOPC-19 |
Screen Size | 19inch |
Resolution | 1280*1024 |
Viewing Angle | 85/85/80/80 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | under 5th Gen.: 1 * mSATA+1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | Under 5th Gen.: 1*Mini PCIE WiFi & BT or 4G LTE Up to 6th Gen.: 1*M.2 (1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

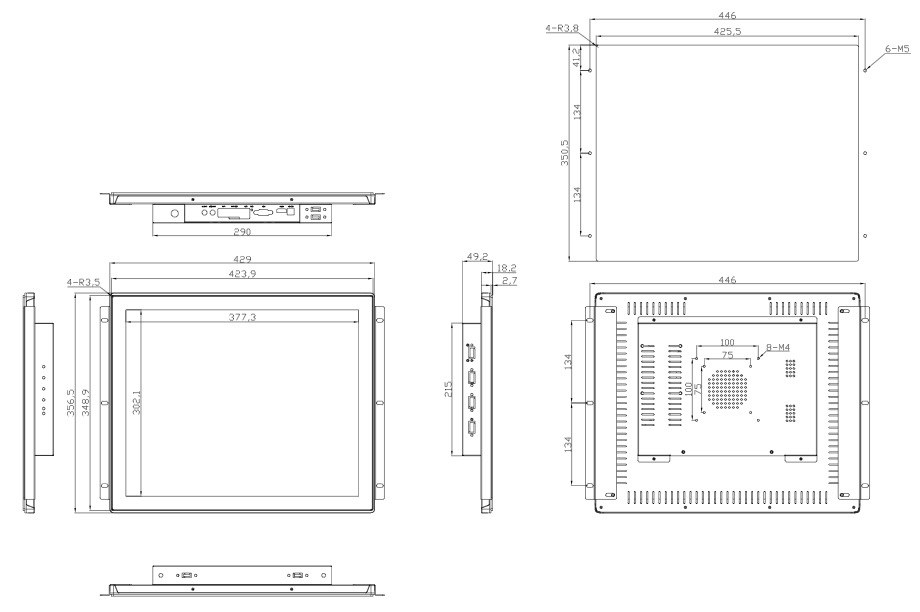

Dimensions (mm) | 429 *356.5 *49.2 |
Mounting Hole Size (mm) | 425.5 *350.5 |
Gross weight (kg) | 6.20 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantage:
· Durability: More durable and reliable because they have fewer moving parts.
· Low energy consumption: Use less energy, which reduces energy costs and makes them more environmentally friendly.
· Silent operation: Don't use fans, so they don't make any noise.
· Compact size: Often smaller than traditional computers.
· Resistance to dust and debris: Designed to keep out dust and debris.
· Vibration resistance: Withstand shock and vibration.
· Can operate in harsh environments: Handle extended operating temperatures and non-ventilated spaces.
· Reduced maintenance: Require minimal maintenance because they have no moving parts.
· Lower operating costs: Lower operating costs than traditional computers.
· Reduced downtime: A higher mean time between failures (MTBF).
Our vincanwo brand 19” Fanless Panel PC | VOPC-19 is ideal for demanding environments, such as factories, operating theaters, and onboard vehicles.
>Product Application:
Industrial control
· Monitor and control industrial processes.
· Interact with PLCs and other control systems to provide real-time data.
· Operators can use the touchscreen interface to adjust, start, stop, and troubleshoot operations.
Noise-sensitive environments
Quiet, making them ideal for environments where noise is a concern, such as libraries and hospitals.
Harsh environments
Used in narrow spaces, such as cabinets, carriages, and tight gaps. They can also be used in harsh environments.
Our vincanwo brand 19” Fanless Panel PC | VOPC-19 are benefits of fanless computing Reduced downtime, Increased mean time between failures, Vibration resistance, Lower operating costs, and Smaller form factor.
