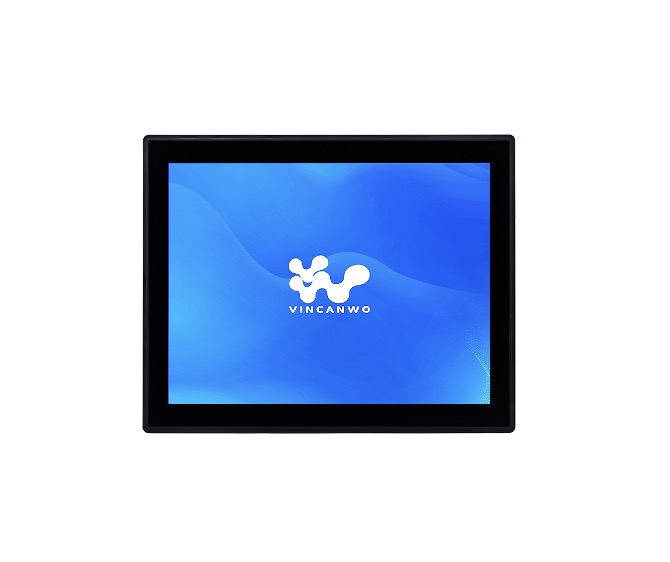

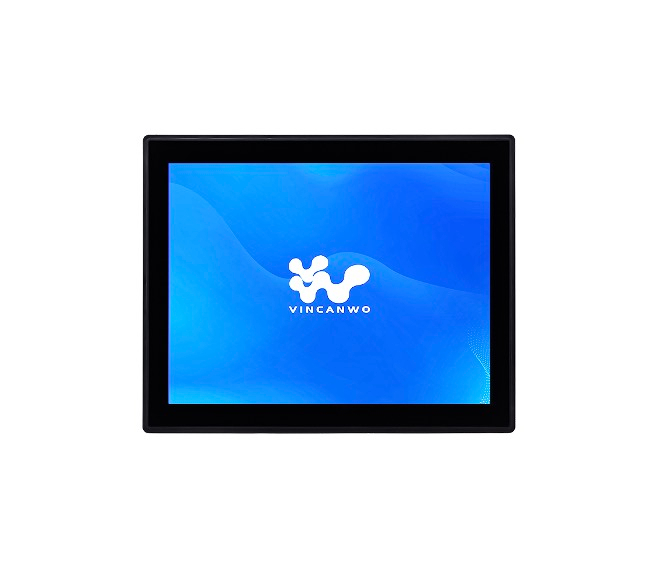

SKU | 17” Flush Mount Panel PC | VOPC-17 |
Screen Size | 17inch |
Resolution | 1280*1024 |
Viewing Angle | 85/85/80/80 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | under 5th Gen.: 1 * mSATA+1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |

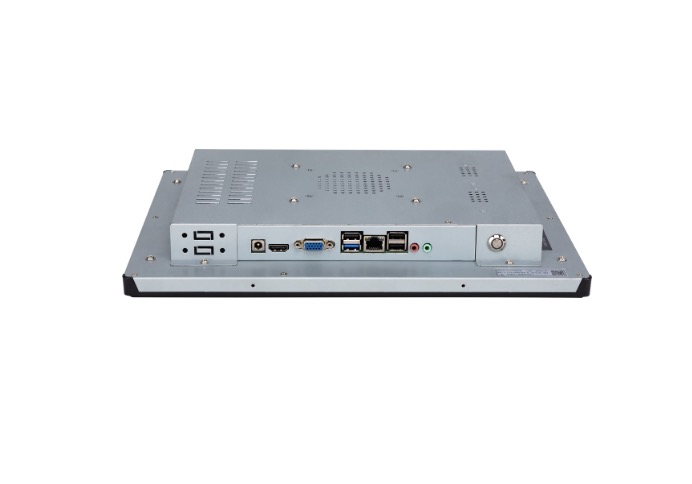

Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | Under 5th Gen.: 1*Mini PCIE WiFi & BT or 4G LTE Up to 6th Gen.: 1*M.2 (1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

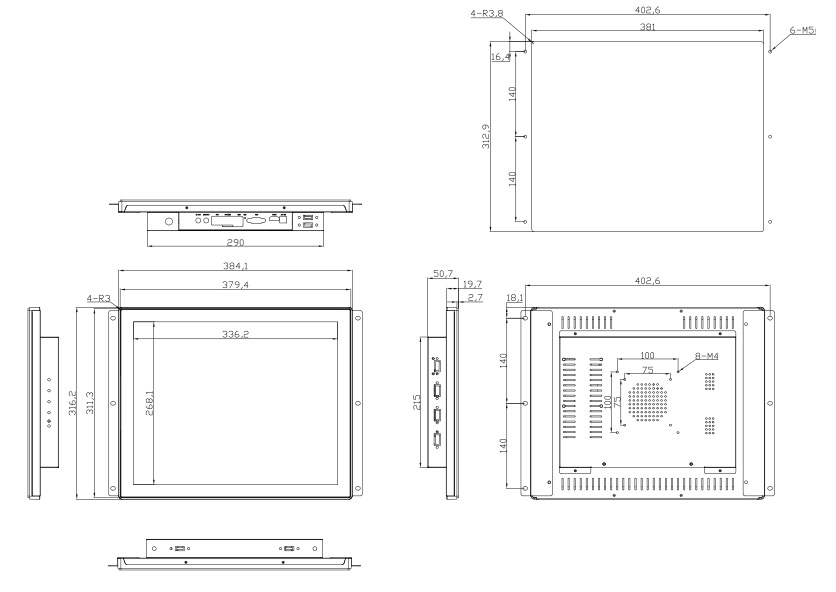

Dimensions (mm) | 384. 1 *316.2 *50. 7 |
Mounting Hole Size (mm) | 381 *312.9 |
Gross weight (kg) | 5.60 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantage
· Space-saving:
Embedded into a flat surface, such as a wall or control panel, so they don't take up extra space.
· Durability:
Protects the PC from environmental hazards like dust, water, and mechanical impacts.
· Aesthetic integration:
Have a clean, streamlined look that blends in with the rest of the control panel or machinery interface.
· Secure installation:
Directly into a control panel makes it harder for unauthorized people to remove it.
· Accessibility:
Easy to access for maintenance, repairs, or upgrades.
>Product Application
· Manufacturing:
For real-time monitoring and control of production processes
· Industrial automation:
For controlling and monitoring machinery
· Public kiosks:
For self-service information centers, ticketing systems, and digital signage
· Energy and utilities:
For monitoring and managing power distribution systems, water treatment plants, and renewable energy installations
