SKU | 32” Embedded Industrial Computer | VOPC-32 |
Screen Size | 32inch |
Resolution | 1920*1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1200:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | under 5th Gen.: 1 * mSATA+1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | Under 5th Gen.: 1*Mini PCIE WiFi & BT or 4G LTE Up to 6th Gen.: 1*M.2 (1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

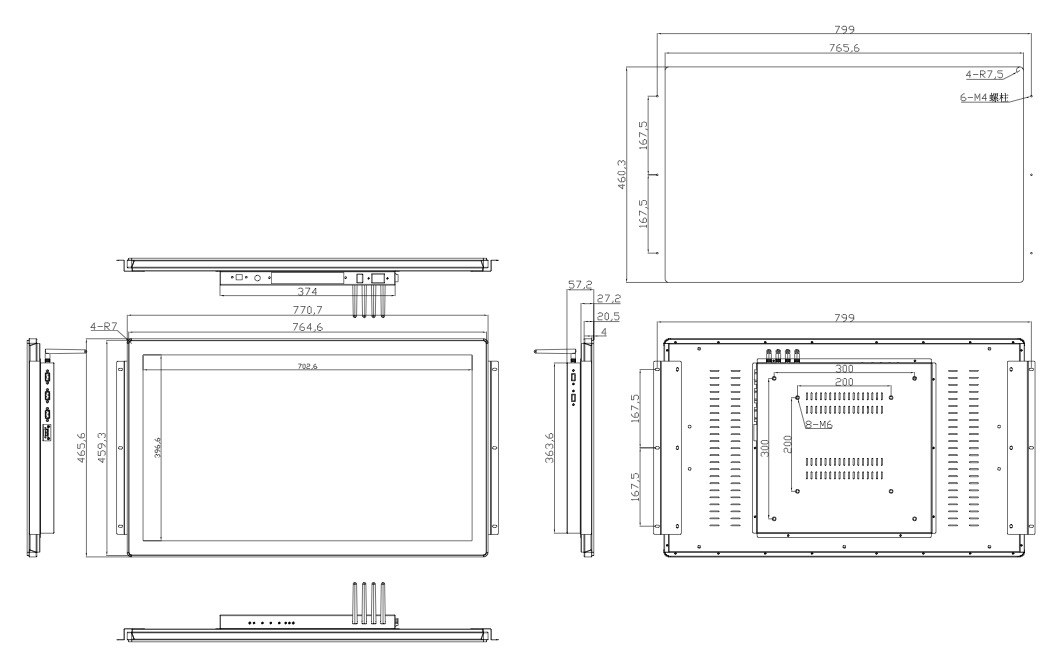

Dimensions (mm) | 770.7*465.6*57.2 |
Mounting Hole Size (mm) | 765.6*460.3 |
Gross weight (kg) | 12.50 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantage
Reliability
Designed to be durable and reliable, with an average uptime of over 99.5%.
Compact size
Often smaller than traditional industrial computers, making them more space-efficient.
Low power consumption
Designed to be energy efficient.
Real-time operations
Perform real-time operations, making them suitable for time-sensitive applications.
Versatility
Can be integrated with a wide range of industrial equipment and peripherals.
Fanless design
Fanless, which helps them avoid overheating and operate quietly.
Rugged durability
Withstand harsh conditions such as extreme temperatures, dust, shock, vibration, and electromagnetic interference.
High-performance processors
Equipped with high-performance processors, ample RAM, and fast SSD storage.
>Product Application
Industrial automation
Using in manufacturing systems to oversee production, testing, packaging, and logistics.
Life-critical systems
Using in systems that are designed to operate automatically in the event of a primary system failure. These systems are used in healthcare, aviation, and other industries.
Automotive systems
Using to control vehicle functions like climate control, brakes, and engine management.
Transportation systems
Using to manage security cameras for mass transit and in rail systems.
Vending machines
Using in vending machines.
Digital signage
Using in digital signage.
Artificial intelligence
Using in artificial intelligence and machine learning applications.
>Warranty
All our products come standard with 3 years warranty.
We also offer up to 5 years extension of our product warranty at the time of sale.
Warranty starts from the time the product is shipped to you from Vincanwo Group. You do not need to register or save the receipt as long as the unit still has the serial number we can look up the warranty term and start date.
Vincanwo Group wants to be your preferred business partner. We will gladly work to help you with all sorts of computer related issues you encounter via our free technical support. If an RMA is needed, we understand the importance of getting you an accurate and long-lasting fix, and getting back up and running quickly.
We keep a wide array of parts on hand for repairs, but sometimes parts will need to be ordered and this can cause delay in repairs.
Vincanwo Group Warranty Includes:
· Repair of the system, Including labor
· Components needing replacement
· If necessary, re-installation of original OS
· Return shipment to customer
Events NOT Covered by Standard Warranty Include:
· Physical damage
· Damage caused by unauthorized repairs
· Use of product outside of its approved environment
· Exposure to direct sunlight, unless explicitly approved
· Inbound Shipping
· Software
>FAQ
How to require a quotation ?
Please send details of your requirement to us by E-mail, we will send quotation to you within 1 working day.
How to require a free sample?
Please send your sample requirement to us, and we will check and confirmed to you within 2 days. Normally we refund sample once the order quantities are in 100pcs.
What is your MOQ ?
NO MOQ request, even with your own specifications.
What is your order Lead-time?
Order Quantity less than 100pcs, and the production lead-time is 3days, surely we have great capacity to handle the large order quantities. For example: 1x40H container loads 8,000 - 10,000pcs and our production lead time normally is 15days after order deposit.
What is your export product package ? How to transport ?
Our product export is single pack. For oversea customers, we will shipping with the durable packages or pallets, or transport by train, by sea or by air, as well by DHL, UPS, etc.
What is your payment term ?
With different price & quantity of contract, We accept different payment term as below:
1, TT for samples (Quantity less than 100units).
2, 30% T/T in advance, balance T/T before shipment (Quantity less than 1000units).
3, 20% T/T in advance, balance O/A 30-60days (Quantity 1000-8000units).
What is your price term ? How to loading cargoes?
We can do price term as below:
1, EXW factory, including VAT tax, Loading cargoes in our factory
2, FOB Shenzhen or Guangzhou Port, and container loading cargoes in our factory.
3, CIF Port of delivery.
4, Door-to-door shipment.
