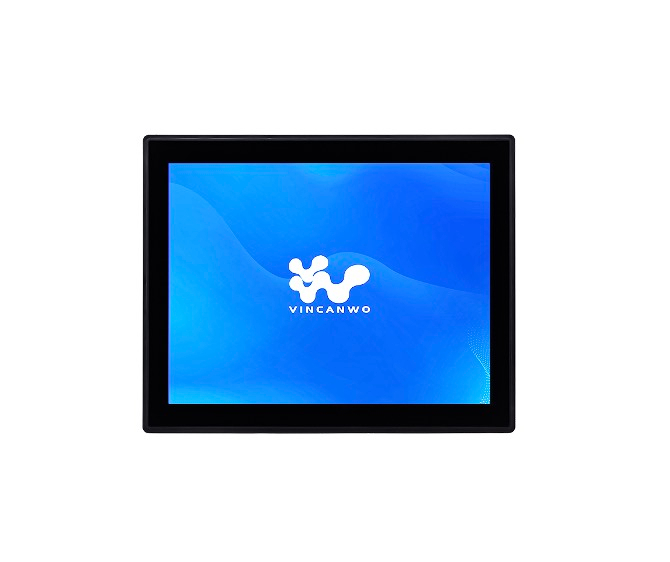

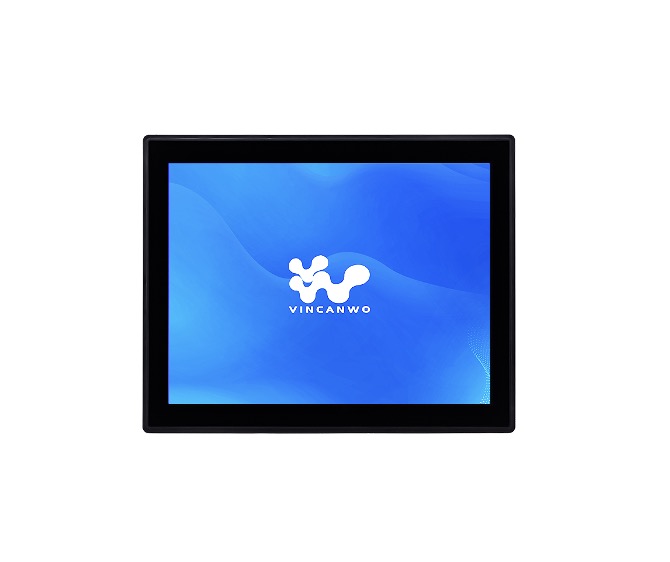

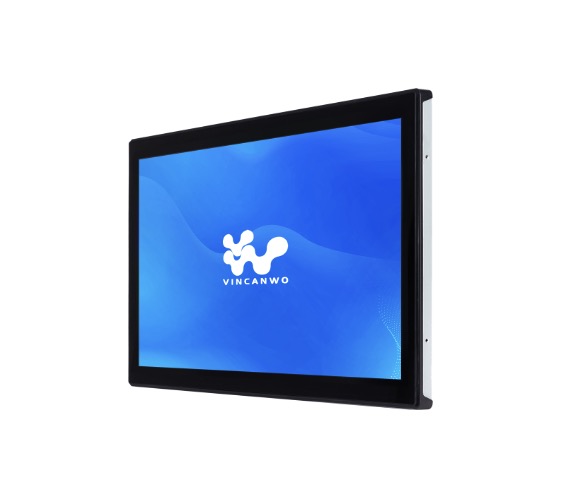

SKU | 21.5” Industrial All-In-One PC | VOPC-215 |
Screen Size | 21.5inch |
Resolution | 1920*1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 3000:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | under 5th Gen.: 1 * mSATA+1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |
Network | 1 *RTL8111 |

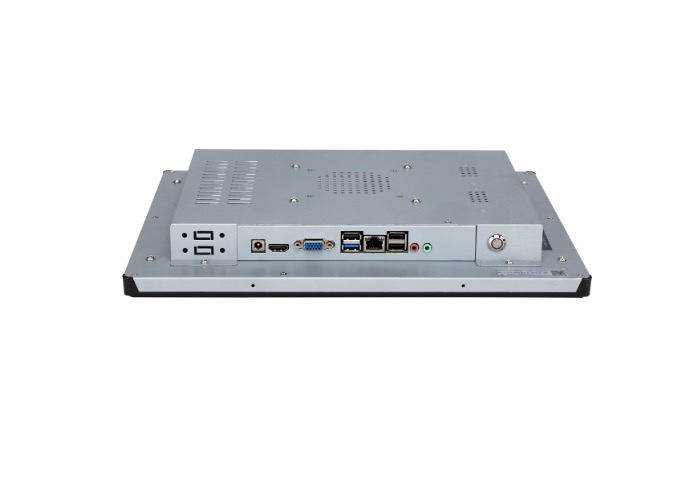

COM | 2 *RS232 (COM2 optional RS485) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | Under 5th Gen.: 1*Mini PCIE WiFi & BT or 4G LTE Up to 6th Gen.: 1*M.2 (1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

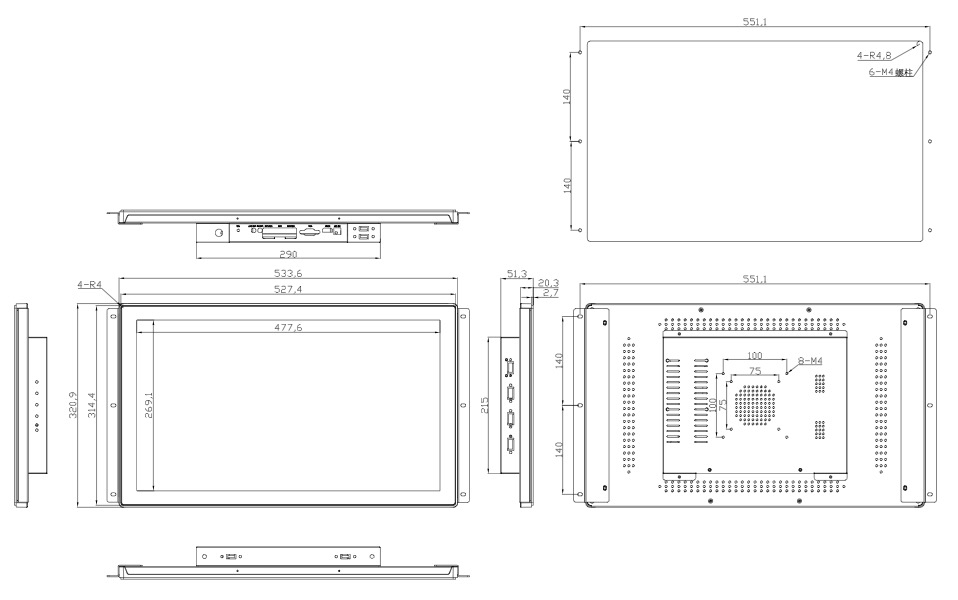

Dimensions (mm) | 533.6*320.9*51.3 |
Mounting Hole Size (mm) | 527.9*314.9 |
Gross weight (kg) | 5.70 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantage
· Compact:
Combine the computer and monitor into one unit, saving space and reducing the need for cables.
· Durable:
Built to withstand harsh environments, such as dust, water, shock, and vibration.
· Easy to install:
Mounted on walls, desk stands, swing arms, or control consoles.
· User-friendly:
Operated without a keyboard and mouse, and some have touch screen interfaces.
· Cost-effective:
A longer lifespan and require less maintenance than standard PCs.
· Reliable:
Run continuously without frequent failures, which helps maintain production schedules.
· Versatile:
Using for a wide range of applications, including human-machine interface (HMI) applications.
· Liquid resistant:
Undergo a liquid resistance test and receive an ingress protection (IP) rating, which indicates how well they can handle water.
· Customizable:
Customizable input/output (I/O) connections.
>Product Application
· Manufacturing:
Monitor and control manufacturing processes.
· Building automation:
Control and monitor building systems.
· Logistics:
Manage operations and track shipments.
· Flight control:
Process data and provide information to pilots.
· Aircraft maintenance:
Track maintenance schedules and history.
· Process control:
Control processes in chemical plants.
· Safety monitoring:
Monitor safety in mining.
· Food production:
Manage operations in food production.
And characteristics of our vincanwo brand 21.5” Industrial All-In-One PC | VOPC-215 is designed to withstand harsh environments, including dust, extreme temperatures, and vibration.
· Fanless and ventless.
· Extensive I/O options.
· Highly configurable.
· A long lifecycle.
