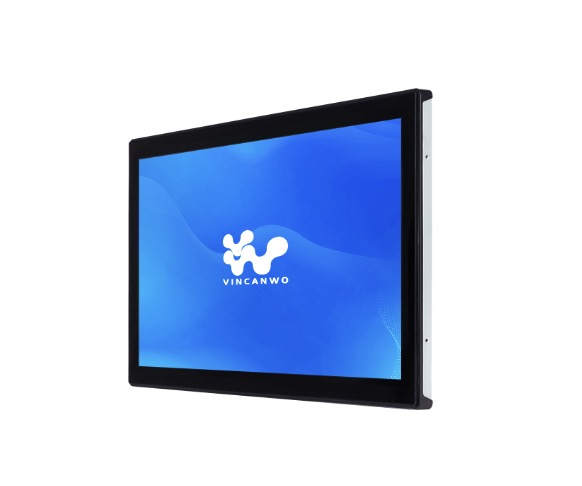

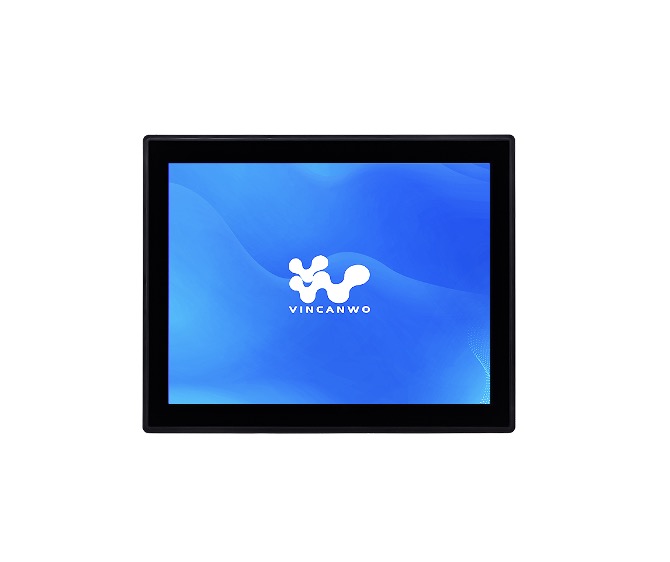

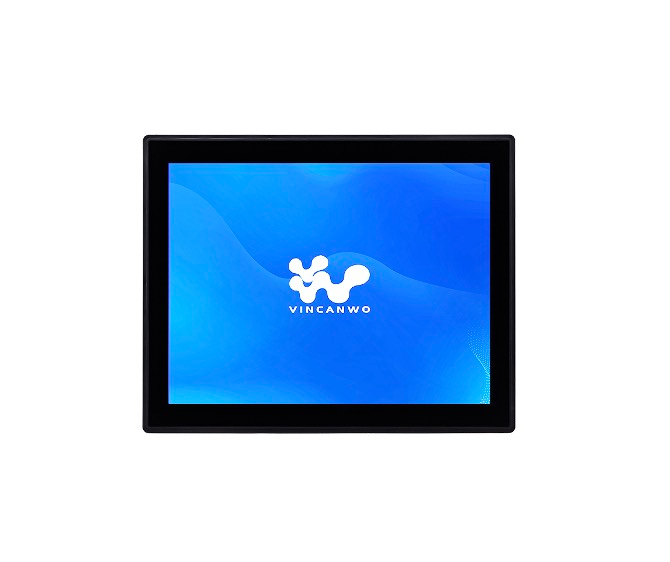

SKU | 18.5” Industrial Fanless Panel PC | VOPC-185 |
Screen Size | 18.5inch |
Resolution | 1920*1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | under 5th Gen.: 1 * mSATA+1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |

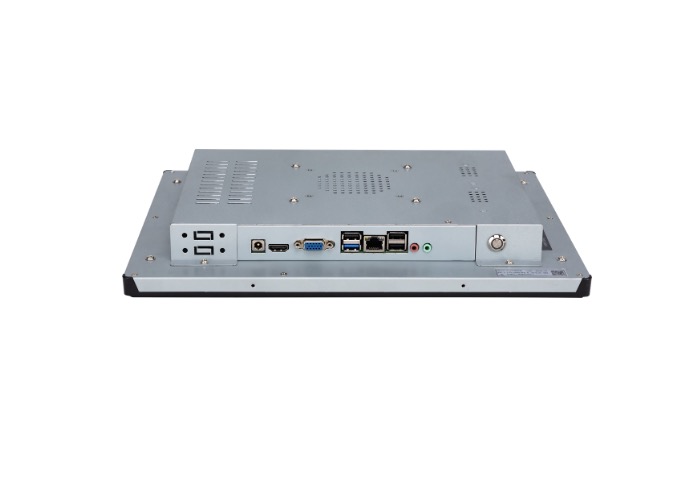

Network | 1 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | Under 5th Gen.: 1*Mini PCIE WiFi & BT or 4G LTE Up to 6th Gen.: 1*M.2 (1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

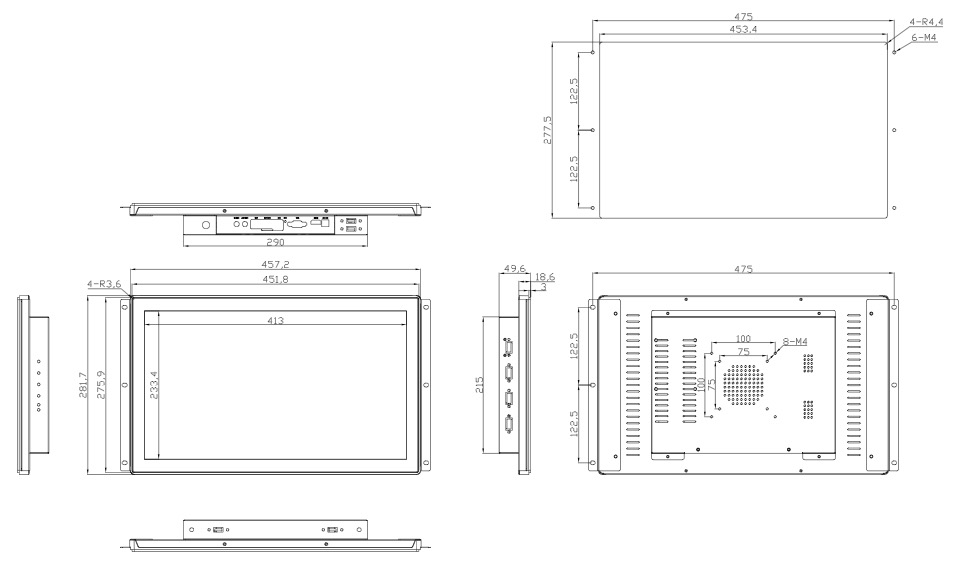

Dimensions (mm) | 457.2*281.7*49.6 |
Mounting Hole Size (mm) | 453.4*277.5 |
Gross weight (kg) | 4.10 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantage
· Reliability: More reliable and durable, with a longer mean time between failures (MTBF)
· Reduced downtime: Less likely to overheat and shut down, which reduces downtime
· Quieter operation: Run silently, which is ideal for industrial environments
· Vibration resistance: More resistant to shocks and vibrations
· Dust resistance: Less likely to accumulate dust and debris
· Smaller form factor: More compact and can fit in smaller spaces
· Lower operating costs: Require less maintenance and have lower operating costs
· Can operate in extreme temperatures: Operate in extremely hot and cold environments
>Product Application
· Digital signage: Use for digital signage.
· Operating theaters: Use in operating theaters.
· Onboard vehicles: Use in onboard vehicles.
· Controlling machinery: Use to control machinery and equipment.
· Troubleshooting: Use to troubleshoot operations.
And features of Our vincanwo brand 18.5” Industrial Fanless Panel PC | VOPC-185
Robust
More robust than ordinary PCs and can function in environments where other PCs would not.
Touchscreen interface
A touchscreen interface that operators can use to start, stop, adjust, and troubleshoot operations.
Silent
Silent because they do not have any moving components.
