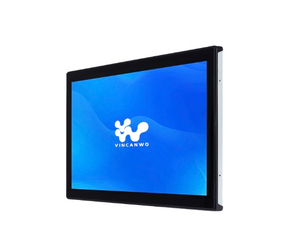

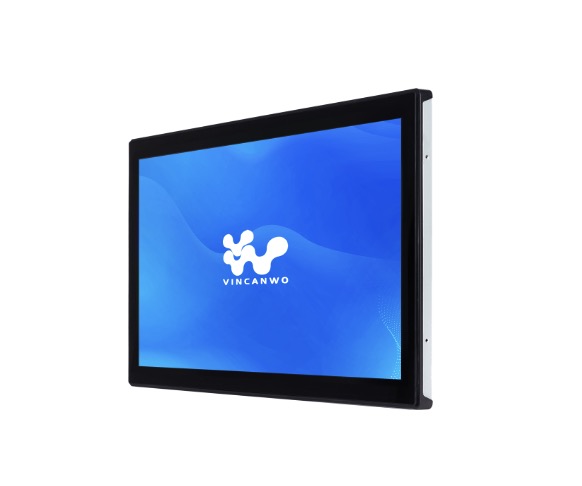

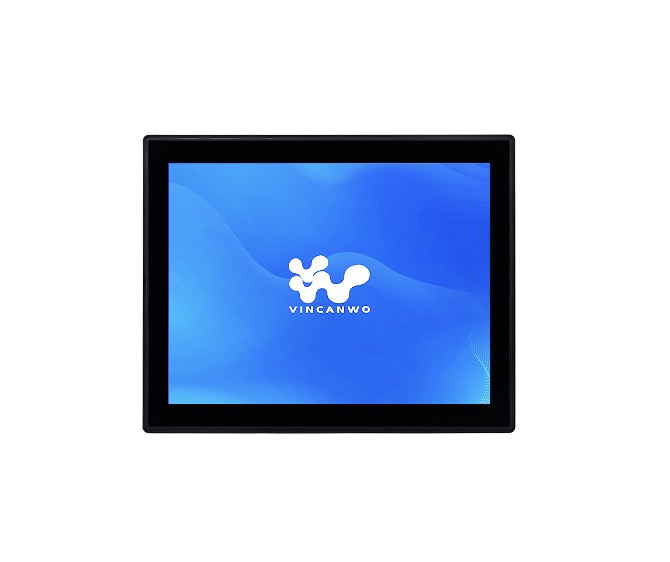

SKU | 27” Industrial Panel Computer | VOPC-27 |
Screen Size | 27inch |
Resolution | 1920*1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive |
Controller | USB interface |
Durability | ≥5M times |
Processor | Intel® Processors |
Memory | 4G/8G/16G/32G |
Storage | under 5th Gen.: 1 * mSATA+1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2+1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB） |

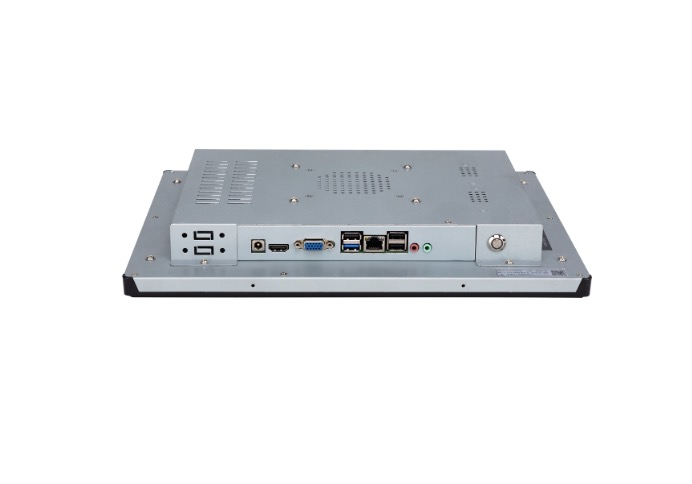

Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |
USB | 4*USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | Under 5th Gen.: 1*Mini PCIE WiFi & BT or 4G LTE Up to 6th Gen.: 1*M.2 (1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

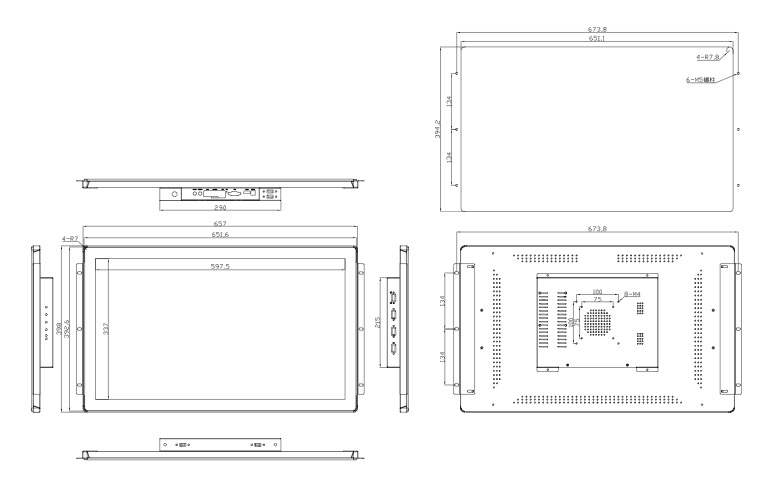

Dimensions (mm) | 572.1*345.6*51.3 |
Mounting Hole Size (mm) | 567.6*341.2 |
Gross weight (kg) | 9.20 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable |
>Product Advantage
Durability
· Built to withstand harsh conditions, including dust, water, shock, and vibration.
· Made with robust components and have a long lifespan.
· Operate in a wide temperature range.
· Fanless, so they don't make noise.
Performance
· Powerful processors and large memory capacities.
· Handle complex tasks and process large amounts of data quickly.
· Perform multiple tasks simultaneously, like running CAD/CAM programs and controlling devices.
Flexibility
· Available in a variety of sizes and configurations.
· Customized with different display sizes, CPUs, and connectivity options.
· Easily managed remotely.
And more
· Easy to touch with gloves.
· Robust exteriors that protect internal components.
· Watchdog timers that automatically reset the system if it locks up.
>Product Application
Machine control
Can be used to control and monitor machinery and equipment in real time.
Data visualization
Can display data from sensors, machines, and production lines in the form of graphs, charts, and dashboards.
Human-machine interface (HMI)
Using as the primary interface between operators and the machines they control.
Data recording and analysis
Record and store data for quality control, process optimization, and compliance with regulations.
Inventory management
Helping workers keep track of where items are stored and when new stock is needed.
Energy management
Using to monitor energy use in factories, buildings, and other places.
Food and beverage processing
Using to monitor temperatures, mix ingredients, and check that food meets safety standards.
Oil and gas industry
Using to control drilling machines and track production.
