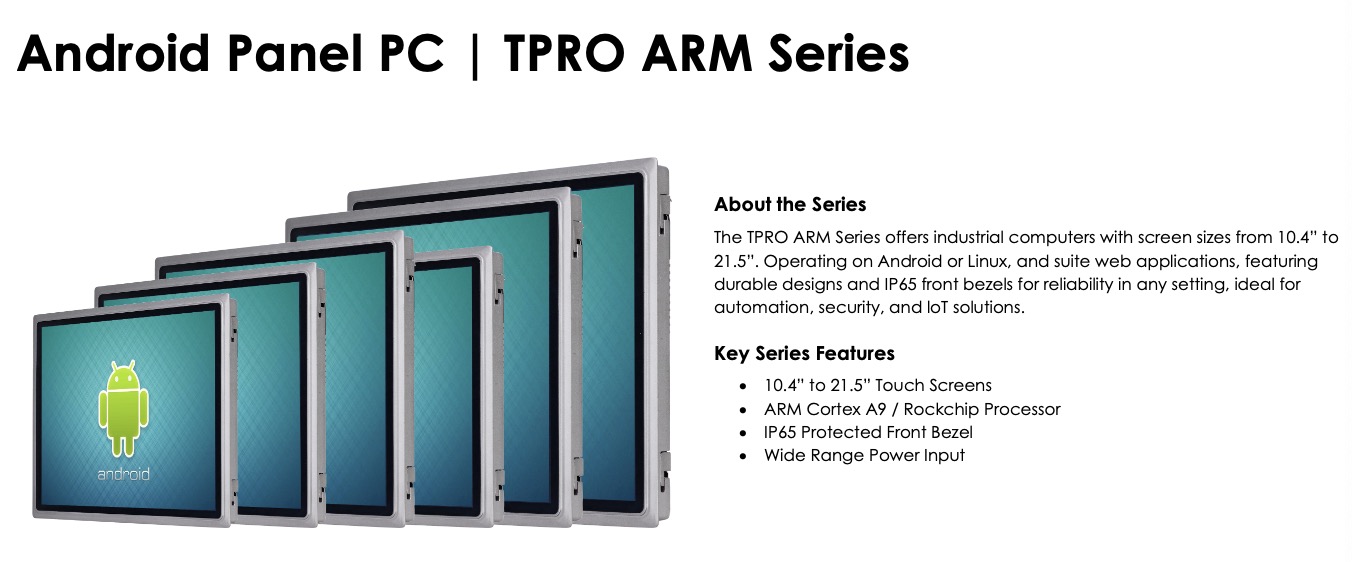

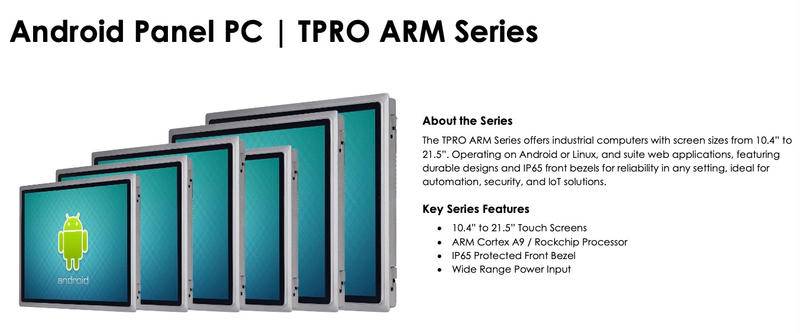

Android Panel PC | TPRO ARM Series
VINCANWO
| Availability: | |
|---|---|
| Quantity: | |
SKU | ||||||
Screen Size | 10.4” | 12.1” | 15” | 17” | 19” | 15.6” |
Resolution | 1024x768 | 1280x1024 | 1920x1080 | |||
Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 | 89/89/89/89 |
Brightness | 500 cd/㎡ | 500 cd/㎡ | 350 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ |
Contrast Ratio | 900:1 | 1200:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
Touchscreen | Capacitive, Resistive | |||||
Controller | USB interface | |||||
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times | |||||
Processor Family | ARM, Rockchip | |||||
Memory Type | 2G, 4G, 8G | |||||
Storage Type | 32G, 64G, 128G | 3588: 64G, 128G, 256G | ||||
Ethernet / LAN | 1x LAN | 2x LAN | ||||
Serial / Com | 2x RS232 (1x COM option RS485) | |||||
USB | 2x USB | |||||
Video Outputs | 1x HDMI | |||||
Expansion Slots | 1x Mini-PCIE | |||||
Operating Systems | Android, LInux | |||||
Dimension | 277.3 x224.5 x55. 8mm | 311.3 x255.3 x55.6mm | 367.3 *291.3 *58. 8mm | 401.6 *338.2 *58. 6mm | 445 *374.8 *58. 6mm | 412 *261 *58. 6mm |
Mounting Hole Size | External embedded size:270 x218mm Internal embedded size: 266 x213mm | External embedded size:305 x248mm Internal embedded size: 298.8 x242.8mm | External embedded size:359 x283mm Internal embedded size: 350 x274mm | External embedded size:394 x324mm Internal embedded size: 383.8 x320.8mm | External embedded size:439 x359mm Internal embedded size: 423.8 x353.8mm | External embedded size:404 x253mm Internal embedded size: 397.5 x241.8mm |
Gross Weight | 2 . 75kg | 3 .30kg | 3 . 75kg | 5 . 65kg | 5 . 70kg | 3 . 80kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand | |||||
Operating Temperature | -30℃ ~ +70℃ | |||||
Storage Temperature | -40℃ ~ +80℃ | |||||
Humidity Rage Non-condensing | 5% - 95% | |||||
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W | |||||
>Product Advantage:
Operating System: The TPRO ARM Series Panel PCs run on the Android or Linux operating system, providing a stable and customizable platform for a wide range of applications.
Processor: These Panel PCs are equipped with ARM processors, which offer high performance and energy efficiency for demanding tasks.
Display: The TPRO ARM Series Panel PCs come with high-quality displays, providing clear and crisp visuals for viewing content.
Touchscreen: Many models in the TPRO ARM Series feature touchscreen functionality, allowing for intuitive and interactive user interfaces.
Connectivity: These Panel PCs offer a variety of connectivity options, such as USB ports, Ethernet ports, HDMI ports, and more, for seamless integration with other devices and peripherals.
Industrial-grade design: The TPRO ARM Series Panel PCs are designed with rugged construction and features such as dust and water resistance, making them suitable for industrial environments.
Expandability: Some models in the TPRO ARM Series offer options for expandable storage, memory, and other features, allowing for customization to meet specific requirements.
>Product Applications:
Industrial Automation: The TPRO ARM Series Panel PCs are ideal for monitoring and controlling machinery and processes in industrial automation applications.
Digital Signage: These Panel PCs can be used in digital signage applications for displaying advertisements, information, and interactive content in retail stores, restaurants, and other public spaces.
Retail Kiosks: The TPRO ARM Series Panel PCs are suitable for self-service checkout, product information displays, and interactive customer experiences in retail settings.
Healthcare: These Panel PCs can be used in healthcare settings for patient check-in kiosks, medical information displays, and telemedicine applications.
Transportation: The TPRO ARM Series Panel PCs are suitable for passenger information displays, ticketing kiosks, and route planning systems in transportation applications.
Education: These Panel PCs can be used in educational settings for interactive whiteboards, digital textbooks, and student information displays.
Gaming: The TPRO ARM Series Panel PCs are suitable for gaming applications, such as interactive gaming experiences, arcade machines, and casino gaming systems.
Overall, our Vincanwo Group brand TPRO ARM Series offers a range of Android and Linux Panel PCs with advanced features and versatile applications for various industries and commercial settings.
