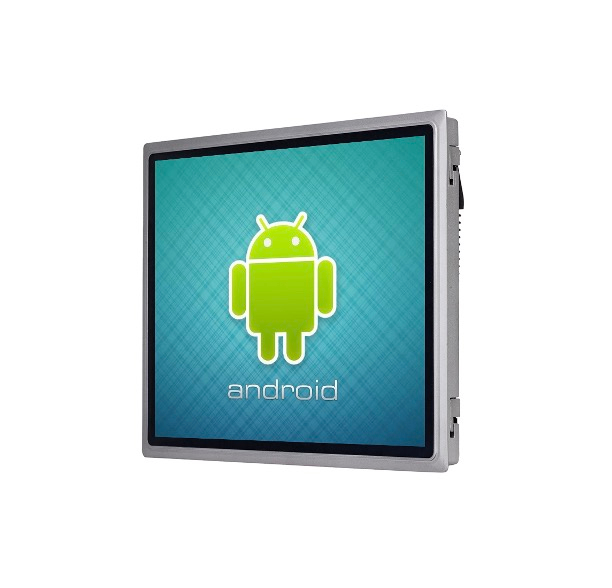

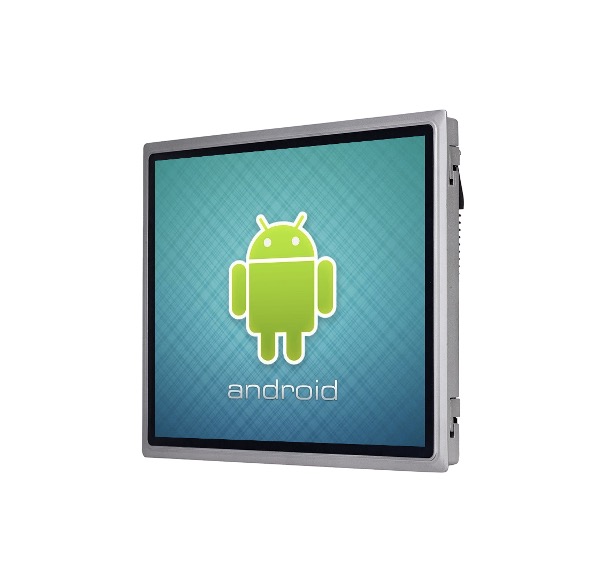

15.6” Widescreen Android Panel PC | TPRO-156 ARM
VINCANWO
Availability: | |
---|---|
Quantity: | |
SKU | TPRO-156 ARM Widescreen |
Screen Size | 15.6” |
Resolution | 1920x1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Storage Type | 3588: 64G, 128G, 256G |

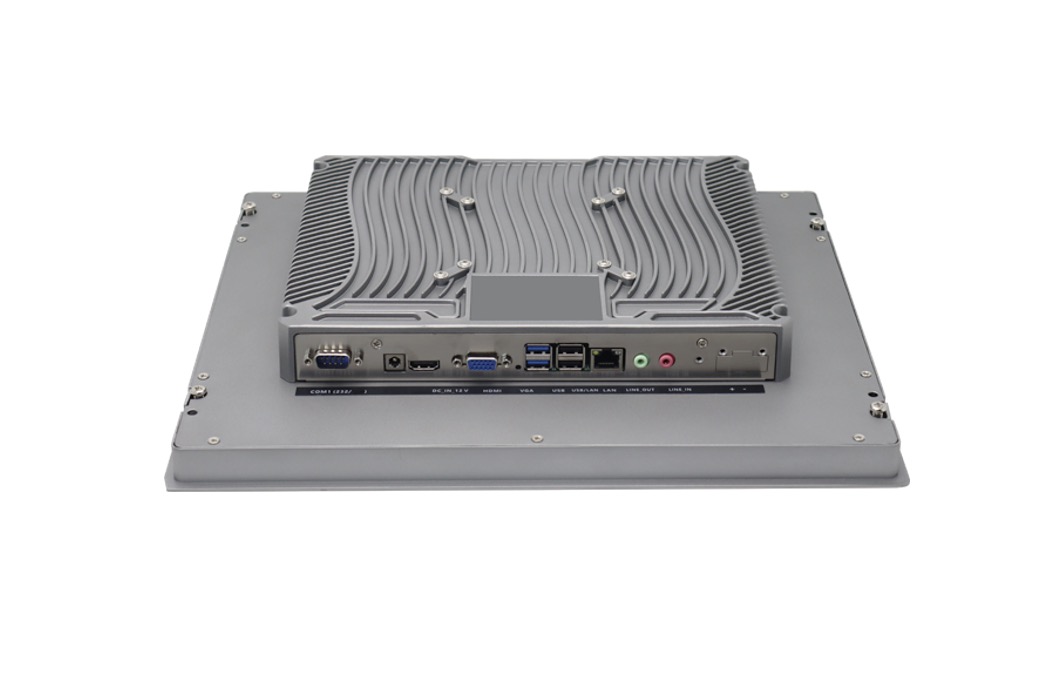

Ethernet / LAN | 2x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini-PCIE |

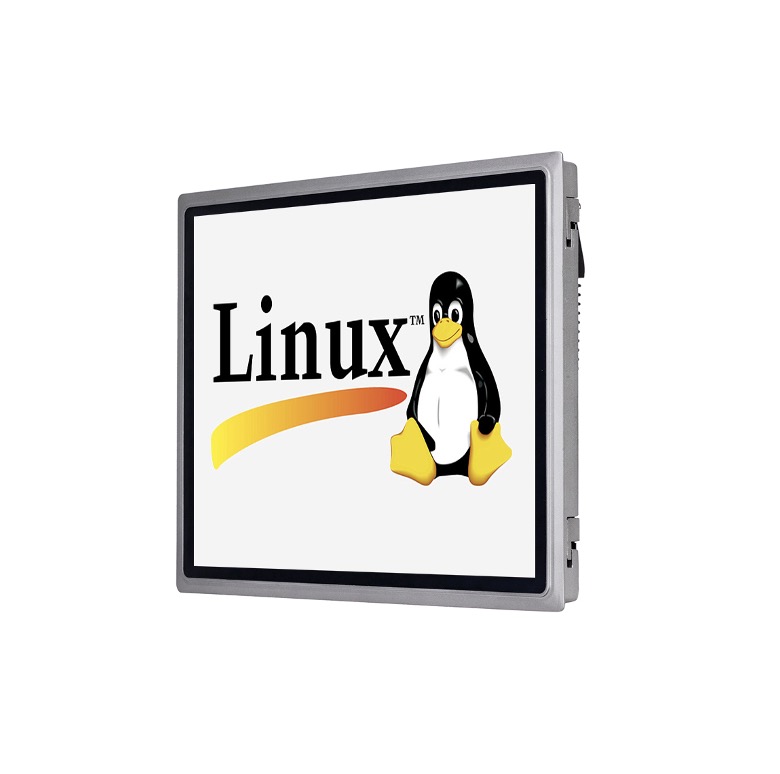

Operating Systems | Android, LInux |

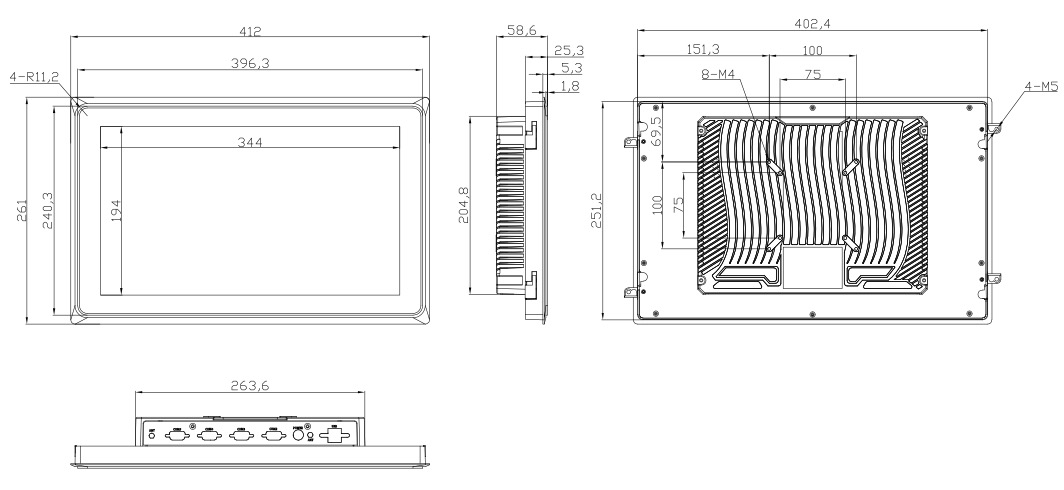

Dimension | 412 *261 *58. 6mm |
Mounting Hole Size | External embedded size:404 x253mm Internal embedded size: 397.5 x241.8mm |
Gross Weight | 3 . 80kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantage:
1, Large Display: The 15.6” Widescreen Android Panel PC | TPRO-156 ARM offers a larger viewing area, making it easier to view and interact with content on the screen.
2, Android Operating System: The Android operating system provides a user-friendly interface and access to a wide range of apps and services, making it easy to customize the device to suit your needs.
3, ARM Processor: The ARM processor offers efficient performance and low power consumption, making the panel PC suitable for a variety of applications.
4, Touchscreen Capability: The touchscreen functionality allows for easy navigation and interaction with the device, making it ideal for use in interactive kiosks, digital signage, and other applications.
5, Connectivity Options: The 15.6” Widescreen Android Panel PC | TPRO-156 ARM offers a range of connectivity options, including Wi-Fi, Bluetooth, USB, and Ethernet, allowing for easy integration with other devices and networks.
6, Versatile Applications: The 15.6” Widescreen Android Panel PC | TPRO-156 ARM can be used in a variety of applications, including digital signage, interactive kiosks, point-of-sale systems, and more, making it a versatile and cost-effective solution for businesses.
>Product Applications:
1, Digital Signage: The 15.6” widescreen Android Panel PC can be used for digital signage displays in retail stores, restaurants, airports, and other public spaces to showcase promotions, advertisements, and important information.
2, Interactive Kiosks: The touchscreen capability of the panel PC makes it ideal for interactive kiosks in museums, hotels, shopping malls, and other locations where users can access information, make selections, and complete transactions.
3, Point-of-Sale Systems: The 15.6” Widescreen Android Panel PC | TPRO-156 ARM can be used as a point-of-sale system in retail stores, restaurants, and other businesses to process transactions, manage inventory, and track sales data.
4, Information Display: The 15.6” Widescreen Android Panel PC | TPRO-156 ARM can be used to display information in public spaces such as train stations, airports, hospitals, and government buildings to provide real-time updates, directions, and other important information to visitors.
5, Education and Training: The 15.6” Widescreen Android Panel PC | TPRO-156 ARM can be used in educational settings such as schools and training centers to deliver interactive lessons, presentations, and training materials to students and employees.
6, Home Automation: The 15.6” Widescreen Android Panel PC | TPRO-156 ARMcan be integrated into home automation systems to control smart devices, monitor security cameras, and manage household tasks through a centralized interface.
