SKU |
TPRO-19 ARM |
Screen Size |
19” |
Resolution |
1280x1024 |
Viewing Angle |
85/85/80/80 |
Brightness |
250 cd/㎡ |
Contrast Ratio |
1000:1 |
Touchscreen |
Capacitive, Resistive |
Controller |
USB interface |
Durability |
Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Processor Family |
ARM, Rockchip |
Memory Type |
2G, 4G, 8G |
Storage Type |
3588: 64G, 128G, 256G |
Ethernet / LAN |
2x LAN |
Serial / Com |
2x RS232 (1x COM option RS485) |
USB |
2x USB |
Video Outputs |
1x HDMI |
Expansion Slots |
1x Mini-PCIE |
Operating Systems |
Android, LInux |

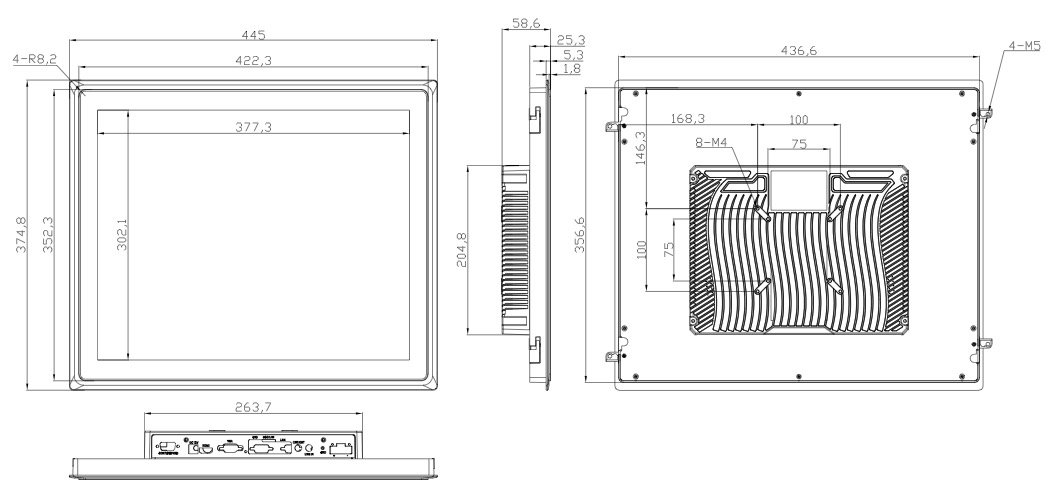

Dimension |
445 *374.8 *58. 6mm |
Mounting Hole Size |
External embedded size:439 x359mm Internal embedded size: 423.8 x353.8mm |
Gross Weight |
5 . 70kg |
Mounting Options |
Embedded, Wall Mount, Desktop Stand |
Operating Temperature |
-30℃ ~ +70℃ |
Storage Temperature |
-40℃ ~ +80℃ |
Humidity Rage Non-condensing |
5% - 95% |
Power |
Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantage:
Touchscreen functionality: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM comes with a touchscreen display, making it easy to navigate and interact with the device using touch gestures.
High resolution: The display on our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM typically has a high resolution, providing crisp and clear images and text.
Connectivity options: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM comes with a variety of connectivity options, such as USB ports, Ethernet ports, HDMI ports, and more, allowing for easy integration with other devices and peripherals.
Industrial-grade design: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM is designed for industrial use, with rugged construction and features such as dust and water resistance.
Power efficiency: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM is designed to be energy-efficient, helping to reduce power consumption and operating costs.
Expandability: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM comes with options for expandable storage, memory, and other features, allowing for customization to suit specific needs and requirements.
>Product Applications:
Industrial automation: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM is commonly used in industrial automation applications for monitoring and controlling machinery and processes.
Digital signage: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM is often used in digital signage applications for displaying advertisements, information, and interactive content in public spaces.
Retail kiosks: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM can be used in retail kiosks for self-service checkout, product information displays, and interactive customer experiences.
Hospitality: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM is used in the hospitality industry for self-service check-in kiosks, room information displays, and interactive concierge services.
Healthcare: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM is used in healthcare settings for patient check-in kiosks, medical information displays, and telemedicine applications.
Transportation: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM is used in transportation applications for passenger information displays, ticketing kiosks, and route planning systems.
Education: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM is used in educational settings for interactive whiteboards, digital textbooks, and student information displays.
Gaming: Our Vincanwo Group brand 19” Android Panel PC | TPRO-19 ARM can be used in gaming applications for interactive gaming experiences, arcade machines, and casino gaming systems.
