SKU | TPRO-104 ARM |
Screen Size | 10.4” |
Resolution | 1024x768 |
Viewing Angle | 89/89/89/89 |
Brightness | 500 cd/ |
Contrast Ratio | 900:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Storage Type | 32G, 64G, 128G |
Ethernet / LAN | 1x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini-PCIE |
Operating Systems | Android, LInux |

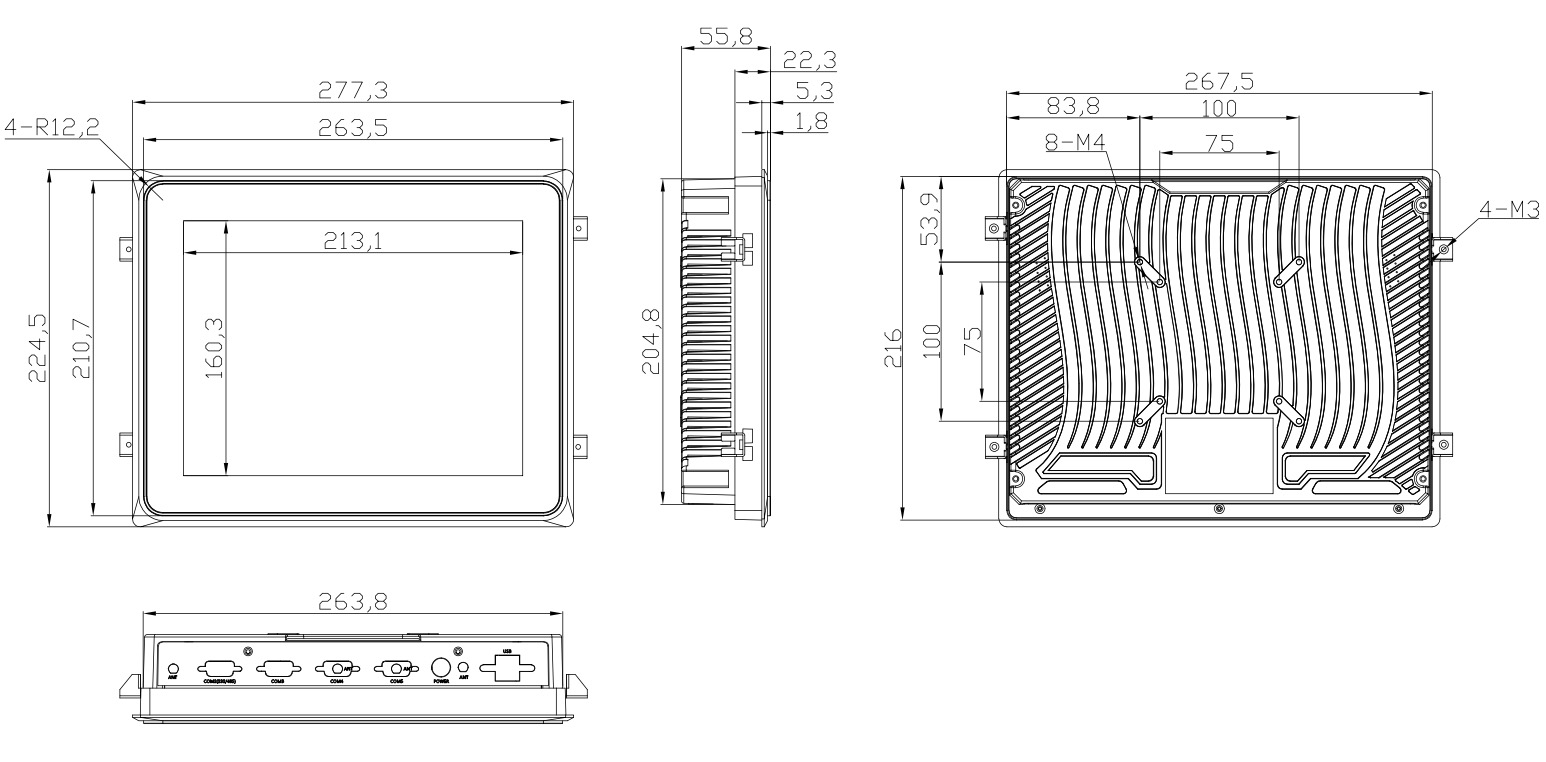

Dimension | 277.3 x224.5 x55. 8mm |
Mounting Hole Size | External embedded size:270 x218mm Internal embedded size: 266 x213mm |
Gross Weight | 2 . 75kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantage:
Silent Operation:
Design eliminates fan noise, making them ideal for quiet environments like offices, classrooms, or hospitals.
Enhanced Reliability:
With no moving parts, less prone to failure and require less maintenance.
Increased Durability:
The absence of fans makes them more resistant to shock, vibration, and drops, suitable for rugged industrial applications.
Dust and Debris Resistance:
Fanless design prevents dust and debris from accumulating inside the device, which can affect performance and lifespan.
Lower Energy Consumption:
Eliminating fans reduces power draw, leading to longer battery life and lower operating costs.
Rugged and Sealed Design:
Designed with rugged housings and sealed structures, protecting them from harsh environmental conditions.
Ideal for Harsh Environments:
Their resistance to dust, moisture, vibration, and temperature fluctuations makes them suitable for use in factories, warehouses, and outdoor locations.
Reduced Downtime:
The reliability and durability of fanless PCs minimize the risk of failure and downtime, leading to increased productivity.
Small Footprint:
Result in smaller and more compact devices, making them easier to integrate into various applications.
Cost-Effective:
Compared to traditional Windows panel PCs, some Android-based fanless panel PCs offer a cost-effective alternative.
>Product Applications:
Our Vincanwo brand 10.4” Fanless Android Panel PC| TPRO-104 ARM is versatile devices used in various applications, including industrial automation, self-service kiosks, and outdoor environments. They are also ideal for building intercom systems, room access and scheduling, and building automation and security.
Industrial Automation:
Using in manufacturing settings for process control, monitoring production lines, and managing equipment. They can also be used for human-machine interfaces, production management, and environmental monitoring.
Self-Service Kiosks:
The touchscreen interface, computing power, and ability to connect with peripherals make them suitable for kiosks, such as those for ticket sales, payments, and information displays.
Outdoor Environments:
The durable design, including IP65 rated waterproof bezels, makes them suitable for outdoor kiosks, digital signage, and equipment monitoring.
Transportation and Logistics:
Using for fleet management, vehicle tracking, and warehouse management.
Building Intercom Systems:
Provide communication and access control functionalities, allowing users to communicate with visitors and remotely unlock doors.
Room Access and Scheduling:
Using in facilities like hotels or office buildings for room access and scheduling purposes.
Building Automation and Security:
Using for controlling lighting, HVAC systems, surveillance cameras, and alarm systems.
Amusement and Entertainment:
using in amusement parks, entertainment venues, and gaming machines.
Digital Signage:
Suitable for creating interactive digital displays in retail environments, public spaces, and transportation hubs.
