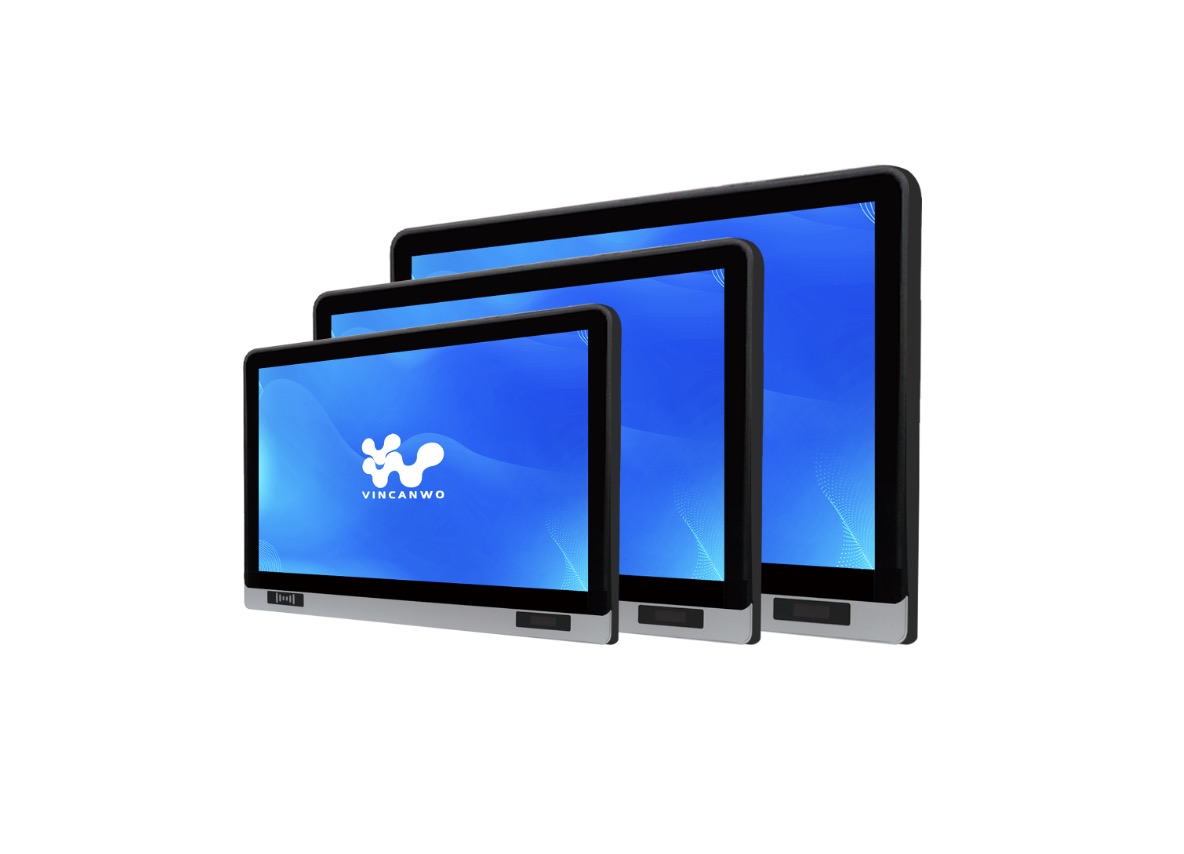

Panel PCs built in FRID Reader and QR Scanner | VFWS X86 Series
VINCANWO
| Availability: | |
|---|---|
| Quantity: | |
SKU | |||
Screen Size | 10.1” | 15.6” | 21.5” |
Resolution | 1280x800 | 1920x1080 | 1920x1080 |
Viewing Angle | 80/80/80/80 | 89/89/89/89 | 89/89/89/89 |
Brightness | 330 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ |
Contrast Ratio | 600:1 | 3000:1 | 1000:1 |
Touchscreen | Capacitive | ||
Controller | USB interface | ||
Durability | ≥ 5M times | ||
Processor Family | Intel® Processors | ||
Memory Type | Under 5th Generation: DDR3, 4G, 8G More than 6th Generation: DDR4, 4G, 8G, 16G, 32G | ||
Storage Type | Under 5th Generation: 1x mSATA, 1x SATA (2.5” Mechanical hard disk capacity: ≤2TB) More than 6th Generation: 1x M.2 / 1x SATA (2.5” Mechanical hard disk capacity: ≤2TB) | ||
Ethernet / LAN | 1x RTL8111 | 2x RTL8111 | |
Serial / Com | 2x RS232 (COM2 option RS485) | 2x RS232 (COM 2 option RS485, expansion to 5COM) | |
USB | 4x USB | ||
Video Outputs | 1x HDMI, 1x VGA | ||
Expansion Slots | Under 5th Generation:1x Mini PCIE WiFi & Bluetooth or 4G LTE More than 6th Generation:1x M.2 (KEYE WiFi & Bluetooth 2230), 1x M.2 (KEYE B4G/5G LTE 3052) | ||
Operating Systems | Windows, Linux | ||

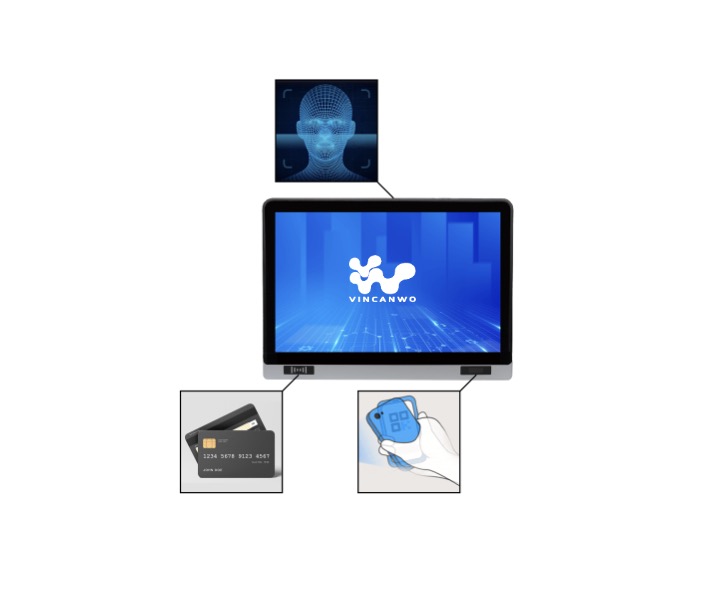

Built-in RFID Reader | Front IC/ID Cards, Camera, QR Scanner | ||
Dimension | 266.1x212x57mm | 402.3x276.5x53.5mm | 534 .3x362.3x53.5mm |
Mounting Hole Size | 261x207mm | 397x271mm | 529x357mm |
Gross Weight | 3.00kg | 3.80kg | 5.70kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand | ||
Operating Temperature | -30℃ ~ +70℃ | ||
Storage Temperature | -40℃ ~ +80℃ | ||
Humidity Rage Non-condensing | 5% - 95% | ||
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W | ||
>Advantages
Our Vincanwo Brand Panel PCs built in FRID Reader and QR Scanner | VFWS X86 Series Series offers advantages like streamlined data capture, enhanced efficiency, and improved accuracy in various applications, especially for inventory management, asset tracking, and access control.
1. Streamlined Data Capture & Efficiency:
RFID for Rapid Data Capture:
RFID technology allows for non-contact, automated data collection, significantly reducing errors associated with manual data entry and enabling faster, more efficient tracking.
QR Code for Quick Access and Information:
QR codes provide a quick and easy way to access information or initiate actions, such as accessing product details, triggering tasks, or accessing digital content.
Integrated Functionality:
The all-in-one design simplifies the process by combining the functionality of a computer, RFID reader, and QR scanner into a single device, reducing clutter and improving usability.
2. Enhanced Accuracy & Reduced Errors:
RFID Minimizes Human Error:
RFID tags can be read from a distance and even through obstacles, minimizing errors and manual intervention, unlike barcodes that require a line-of-sight scan.
QR Codes for Easy Verification:
QR codes provide a simple and reliable way to verify information or access data, reducing the risk of human error.
Automated Processes:
RFID and QR codes enable automated processes like real-time inventory updates, automated asset tracking, and supply chain optimization, reducing the need for manual data entry.
3. Improved Security & Access Control:
RFID for Enhanced Security:
RFID technology can enhance security by controlling access to restricted areas and tracking the movement of high-value assets.
QR Codes for Secure Authentication:
QR codes can be used for secure authentication and access control, providing an additional layer of security.
Dynamic Data Management:
RFID tags can have information added, modified, or deleted when necessary, providing dynamic data management.
4. Versatility & Applications:
Inventory Management:
RFID and QR codes can be used for real-time inventory tracking, stocktaking, and supply chain management.
Asset Tracking:
RFID tags can be used to track the location and status of assets, ensuring they are always accounted for.
Access Control:
RFID and QR codes can be used for access control, allowing or denying access to specific areas or resources.
Healthcare:
RFID can be used for patient identification, medication tracking, and asset management.
Retail:
RFID and QR codes can be used for inventory management, point-of-sale systems, and customer loyalty programs.
>Applications
our Vincanwo Brand Panel PCs built in FRID Reader and QR Scanner | VFWS X86 Series offers versatile applications in various fields, including access control, asset tracking, inventory management, and more, by enabling quick and efficient data capture and identification.
Access Control and Security:
Visitor Management:
Facilitating streamlined entry and exit procedures for visitors in office buildings, community centers, or event venues.
Employee Access Control:
Implementing secure access to restricted areas using RFID cards or QR codes for authentication.
Smart Home Security:
Using RFID or QR codes for door unlocking, alarm system activation, and other security features.
Kiosk Applications:
Enabling self-service kiosks for tasks like check-in, ticket purchase, or information access using RFID cards or QR codes.
Inventory and Asset Management:
Inventory Tracking:
Real-time tracking of inventory items in warehouses, retail stores, or logistics centers using RFID tags.
Asset Management:
Monitoring and managing valuable assets like equipment, tools, or vehicles using RFID tags.
Cycle Counting:
Automating inventory counts and cycle counting processes for improved accuracy and efficiency.
Retail Loss Prevention:
Using RFID tags to track merchandise and reduce theft in retail environments.
Logistics and Supply Chain:
Shipping and Receiving:
Facilitating efficient loading, unloading, and sorting of goods using RFID tags and QR codes.
Cross-Docking:
Streamlining the process of transferring goods between different locations using RFID tags.
Lab Sample Tracking:
Tracking and managing lab samples using RFID tags for improved accuracy and efficiency.
Airline Baggage Tagging:
Using RFID tags for baggage tracking and identification in airports.
Healthcare:
· Patient Identification: Using RFID tags for patient identification and tracking in hospitals or clinics.
· Medication Management: Tracking and managing medications using RFID tags to ensure proper dispensing and administration.
· Asset Tracking: Tracking medical equipment and supplies using RFID tags.
Other Applications:
· Loyalty Programs: Using RFID cards or QR codes for customer loyalty programs and point-of-sale transactions.
· Ticketing: Using RFID cards or QR codes for event ticketing and access control.
· Payment Systems: Enabling contactless payments using RFID cards or QR codes.
