| SKU | VFWS-156 |
| Screen Size | 15.6" |
| Resolution | 1920*1080 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 3000:1 |
| Touch Screen | Capacitive |
| Controller | USB interface |
| Durability | ≥ 5M times |
| Processor | Intel® Processors |
| Memory | Under 5th Generation: DDR3, 4G / 8G | Above 6th Generation: DDR4, 4G / 8G / 16G |
| Storage | Under 5th Gen: 1*mSATA/1*SATA (2.5" Mechanical hard drive capacity ≤ 2TB) | Above 6th Gen: 1*M.2/1*SATA (2.5" Mechanical hard drive capacity ≤ 2TB) |
| Ethernet / LAN | 2x RTL8111 |
| Serial / Com | 2x RS232 (COM 2 option RS485, expansion to 5COM) |
| USB | 4x USB |
| Display | 1 *HDMI, 1 *VGA |
| Expand Slot | Under 5th Generation:1x Mini PCIE WiFi & Bluetooth or 4G LTE More than 6th Generation:1x M.2 (KEYE WiFi & Bluetooth 2230), 1x M.2 (KEYE B4G/5G LTE 3052) |
| Operating System | Windows / Linus |
| Built-in RFID Reader | Front IC/ID Cards, Camera, QR Scanner |

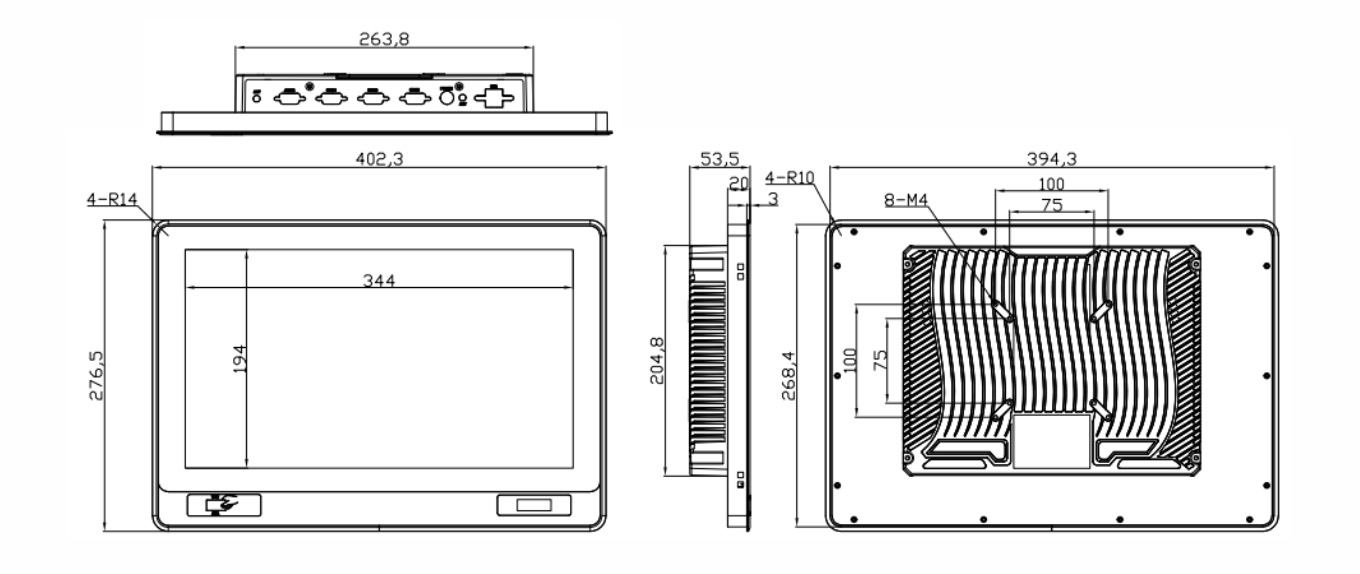

| Dimensions (mm) | 418*332*58.3 |
| Hole Sizes (mm) | 396*324 |
| Individual Gross Weight (KG) | 3.80 |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +80℃ |
Storage Humidity *Non-condensing | 5% ~ 95% |
| Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
| Packaging Information | |
| VFWS | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 4 *hooks, 1 *Manual, 1 *Warranty Card |
| VFWS-1 | Available to upgrade front IC/ID card swiping |
| VFWS-C | Available to upgrade front Camera |
| VFWS-S | Available to upgrade front Scanning Code |
| VFWS-I/C/S | Available to upgrade front IC/ID card reader / camera / QR Sanner |
>Advantages
1. Space-Saving and Portability:
· Compact Design: The combination of computer, display, and RFID reader into a single unit reduces space requirements compared to separate components.
· Easy Installation: The integrated design simplifies installation and reduces cabling needs.
· Portability: Designed to be easily moved or relocated.
2. Enhanced User Interaction:
Intuitive Touch Interface:
Provide a user-friendly interface for interacting with the system, eliminating the need for traditional keyboards and mice.
Direct Interaction:
Users can directly interact with the displayed content by tapping, swiping, or dragging on the screen.
Simplified Operation:
The touch screen interface makes operation easier and more intuitive, requiring less training.
3. RFID Functionality:
Data Exchange and Tracking:
The built-in RFID reader enables seamless data exchange and tracking of assets, personnel, or other objects.
Security:
RFID can be used for access control, allowing authorized personnel to enter specific areas.
Automation:
To automate processes, such as inventory management or production tracking.
4. Rugged and Durable Design (for Industrial Applications):
· Harsh Environment Resistance: Designed to withstand harsh environments, including dust, moisture, vibration, and temperature extremes.
· Durability: Often feature ruggedized structures, such as die-cast aluminum builds, to ensure long-term sturdiness.
· Waterproof Ratings: IP65 Rated Front Panel Bezel.
5. Integration Capabilities:
Easy Integration:
Easily integrated with other systems, such as access control systems, automated equipment, and asset management systems.
Versatile Applications:
Can be used in a wide range of applications, including production and process automation, machine control, and data collection.
>Applications
Our Vincanwo Group Brand 15.6" RFID Panel PC| VFWS-156 is used for applications requiring secure access control, data collection, and identification in various industries, including industrial automation, retail, healthcare, and logistics.
1. Access Control and Security:
Industrial Environments:
For secure access to machinery, restricted areas, and sensitive data.
Retail:
For employee access control, inventory management, and point-of-sale systems.
Healthcare:
For patient identification, medication tracking, and secure data access.
Logistics:
For warehouse access control, package tracking, and inventory management.
2. Data Collection and Identification:
Attendance Tracking:
For employee attendance tracking, time management, and payroll processing.
Asset Management:
For tracking and identifying assets, equipment, and inventory.
Patient Identification:
For patient identification in healthcare settings, ensuring the correct patient receives the correct treatment.
Membership and Access:
For membership verification, access to facilities, and events.
3. Industrial Automation and HMI (Human Machine Interface):
Control Panels:
As control panels for industrial machinery, providing a user-friendly interface for operators.
Monitoring Systems:
For monitoring and controlling industrial processes, providing real-time data and alerts.
Data Logging:
For logging and storing data from industrial processes, providing valuable insights for analysis and optimization.
4. Other Applications:
Payment Terminals:
As payment terminals, allowing customers to pay with RFID cards or tags.
Authentication Terminals:
As authentication terminals, verifying user identities and granting access to systems or resources.
Smart Home Devices:
As part of smart home systems, controlling appliances, lighting, and security systems.
