| SKU | VFWS-101 |
| Screen Size | 10.1" |
| Resolution | 1280*800 |
| Viewing Angle | 80/80/80/80 |
| Brightness | 330 cd/m2 |
| Contrast Ratio | 600:1 |
| Touch Screen | Capacitive |
| Controller | USB interface |
| Durability | ≥ 5M times |
| Processor | Intel® Processors |
| Memory | Under 5th Generation: DDR3, 4G / 8G | Above 6th Generation: DDR4, 4G / 8G / 16G |
| Storage | Under 5th Gen: 1*mSATA/1*SATA (2.5" Mechanical hard drive capacity ≤ 2TB) | Above 6th Gen: 1*M.2/1*SATA (2.5" Mechanical hard drive capacity ≤ 2TB) |
| Ethernet / LAN | 1x RTL8111 |
| Serial / Com | 2x RS232 (COM2 option RS485) |
| USB | 4x USB |
| Display | 1 *HDMI, 1 *VGA |
| Expand Slot | Under 5th Gen: 1*Mini PCIE WiFi&BT or 4G LTE | Above 6th Gen: 1*M.2 (KEY E WiFi&BT 2230)/1*M.2 (KEY B 4G/5G LTE 3052) |
| Operating System | Windows / Linux |
| Built-in RFID | Optional front IC/ID Reader, Camera, QR Scanner |

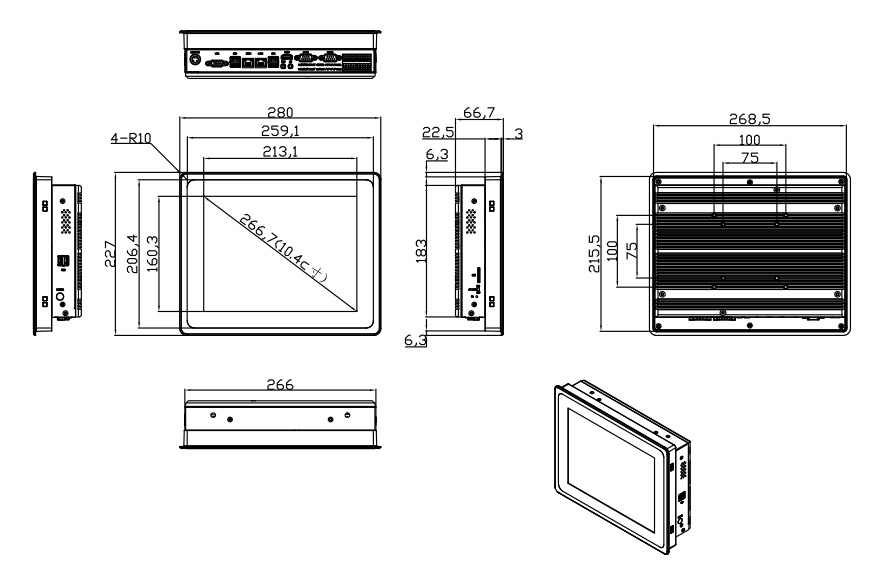

| Dimensions (mm) | 283*228.2*52.1 |
| Hole Sizes (mm) | 272*218 |
Individual Gross Weight (KG) | 2.75 |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30℃ ~ +70℃ |
| Storage Temperature | -40℃~ +80℃ |
| Storage Humidity *Non-condensing | 5% ~ 95% |
| Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
| Packaging Information | |
| VFWS | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 4 *hooks, 1 *Manual, 1 *Warranty Card |
VFWS-1 | Available to upgrade front IC/ID card swiping |
| VFWS-C | Available to upgrade front Camera |
| VFWS-S | Available to upgrade front Scanning Code |
| VFWS-I/C/S | Available to upgrade front IC/ID card reader / Samera / QR Scanner |
>Advantages
Our Vincanwo Group Brand 10.1" RFID Panel PC| VFWS-101 offers the most advantages like enhanced security, real-time data access, improved efficiency, and reduced human error in various applications, especially in industries needing robust and reliable data collection and management.
1. Enhanced Security:
Data Security:
Generally secure because specialized equipment is needed to read the data, making them less vulnerable to unauthorized access.
Physical Security:
For access control, allowing for quick and secure entry and exit.
2. Real-Time Data Access:
Inventory Management:
Attached to products, enabling real-time tracking of inventory levels and location, leading to better stock control and reduced errors.
Asset Tracking:
Track the location and status of assets, improving efficiency and reducing loss.
Supply Chain Visibility:
Provides real-time data on item location, shipment status, and stock levels, streamlining supply chain operations.
3. Improved Efficiency:
Faster Data Collection:
Scan multiple tags simultaneously, making data collection faster and more efficient than traditional methods like barcode scanning.
Reduced Manual Labor:
Automate data collection, reducing the need for manual data entry and improving efficiency.
Streamlined Processes:
Streamline various processes, such as inventory management, access control, and asset tracking.
4. Reduced Human Error:
Eliminating Manual Errors:
Reduce the risk of human error associated with manual data entry and tracking.
Improved Accuracy:
Provides accurate and reliable data, leading to better decision-making and reduced errors.
5. Other Benefits:
Durability:
Durable and can withstand harsh environments, making them suitable for various applications.
Flexibility:
Embedded or attached to various objects, providing flexibility in application.
Cost Savings:
Lead to cost savings by improving efficiency, reducing errors, and minimizing loss.
Better Decision-Making:
Real-time data from RFID systems enables better decision-making and forecasting.
Improved Customer Experience:
Improve customer service by providing accurate information on inventory levels and item locations.
By removing the need for line-of-sight scanning as needed with barcode scanning, our Vincanwo Group Brand 10.1" RFID Panel PC| VFWS-101 makes it possible to collect data stored in tags, but from a distance. What's more, multiple tags can be read at once, prompting a dramatic increase in read rates. Optimized picking and packing.
>Applications
Our Vincanwo Group Brand 10.1" RFID Panel PC| VFWS-101, which combine a touch-screen panel PC with RFID reading capabilities, find applications in various industries for tasks like inventory management, asset tracking, access control, and industrial automation, offering efficient and reliable data collection and processing.
1. Inventory Management & Asset Tracking:
Retail:
Streamline inventory management by enabling real-time tracking of products, reducing errors in stock counts, and facilitating faster replenishment.
Warehousing & Logistics:
For efficient tracking of goods in warehouses, optimizing storage and retrieval processes.
Healthcare:
To track medical equipment, patient files, and other assets, ensuring their availability and location.
Manufacturing:
To track tools, spare parts, and other equipment, ensuring they are available when needed.
2. Access Control & Security:
Industrial Automation:
For access control in factories, warehouses, and other industrial facilities, ensuring secure entry and exit.
Building Security:
To manage access to buildings and rooms, providing a secure and efficient access control system.
Personalized Access:
For employee access control, allowing for different levels of access based on RFID cards or tags.
3. Industrial Automation & Machine Operation:
Data Collection:
To collect data from machines and processes, providing real-time insights into performance and efficiency.
Work Instruction Management:
To display and manage work instructions, ensuring that operators have the correct information at their fingertips.
Process Control:
To control and monitor industrial processes, providing real-time feedback and control.
4. Other Applications:
Tolling:
RFID technology, integrated with Panel PCs, can be used for automated toll collection on roads and bridges.
File Tracking:
To track files and documents, ensuring their secure storage and retrieval.
Race Timing:
To time races and events, providing accurate and reliable results.
Materials Management:
To manage construction materials on job sites, ensuring that the right materials are available at the right time.
Customer Service:
To track customer service requests and ensure that they are resolved in a timely manner.
