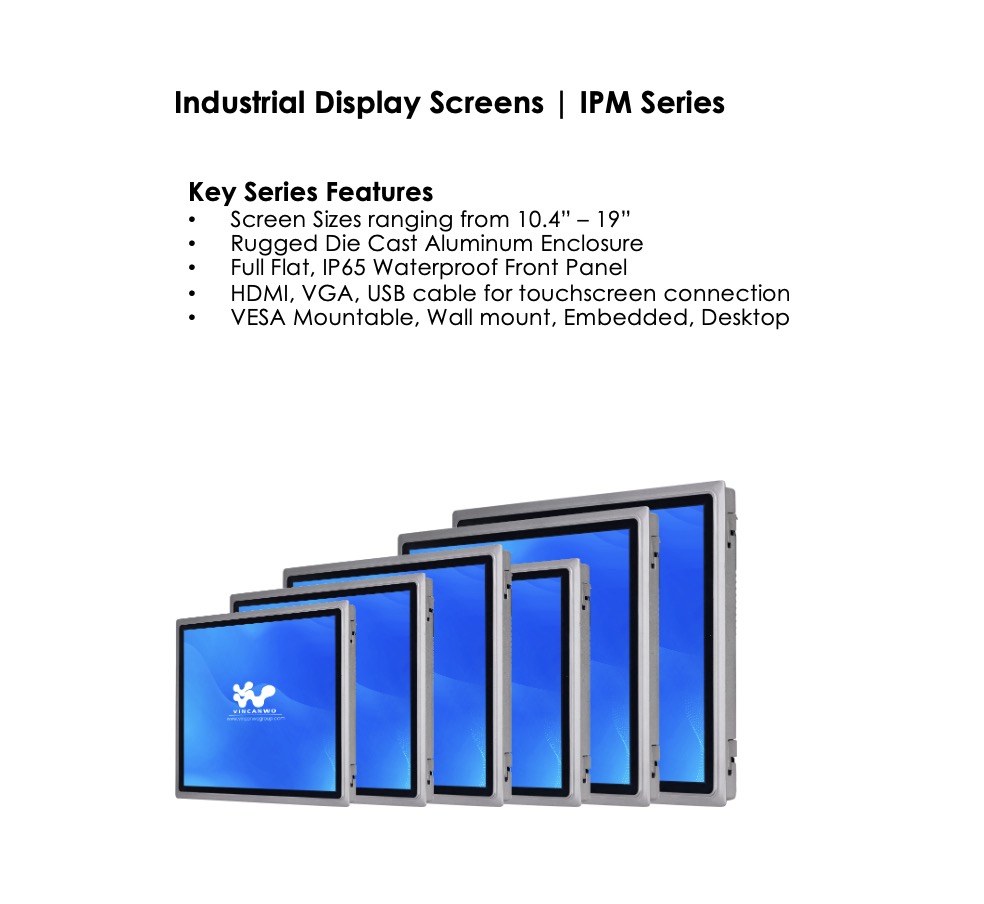

Industrial Display Screens | IPM Series
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
| SKU | IPM-104 | IPM-121 | IPM-15 | IPM-156 | IPM-17 | IPM-19 |
| Screen Size | 10.4" | 12.1" | 15" | 15.6" | 17" | 19" |
| Resolution | 1024x768 | 1024x768 | 1024x768 | 1920x1080 | 1280x1024 | 1280x1024 |
| Viewing Angle | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 89/89/89/89 | 85/85/80/80 | 85/85/80/80 |
| Brightness | 500 cd/㎡ | 500 cd/㎡ | 350 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ | 250 cd/㎡ |
| Touch Screen | Capacitive, Resistive | |||||
| Controller | USB Interfacee | |||||
| Durability | Capacitive ≥ 5M times, Resistive ≥ 100,000 times | |||||
| USB | USB cable for touchscreen connection | |||||

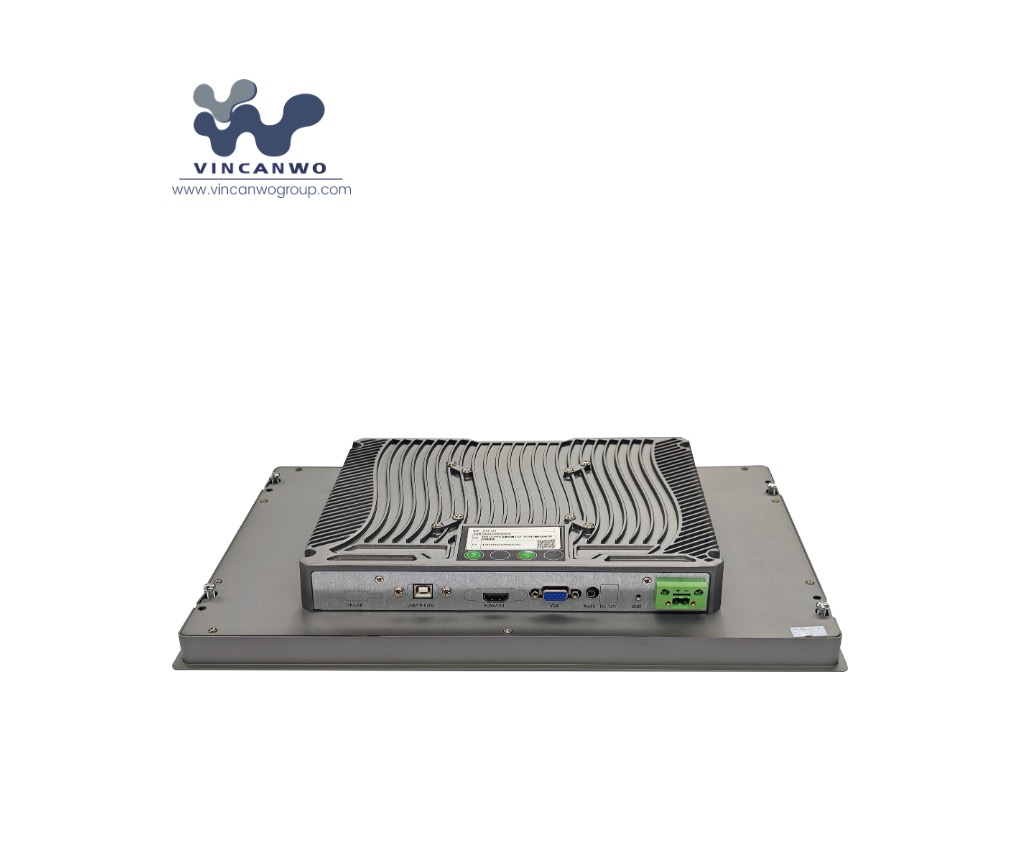

| Display | 1x HDMI, 1x VGA | |||||
| Dimension | 277.3x224.5x55.8mm | 311.3x255.3x55.6mm | 367.3x291.3x58.8mm | 412x261x58.6mm | 401.6x338.2x58.6mm | 445x374.8x58.6mm |
| Mounting Hole Size | External embedded size: 305x248mm | External embedded size: 305x248mm | External embedded size: 359x283mm | External embedded size: 404x253mm | External embedded size: 394x324mm | External embedded size: 439x359mm |
| Internal embedded size: 298.8x242.8mm | Internal embedded size: 298.8x242.8mm | Internal embedded size: 350x274mm | Internal embedded size: 397.5x241.8mm | Internal embedded size: 383.8x320.8mm | Internal embedded size: 423.8x353.8mm | |
| Gross Weight | 2.75kg | 3.30kg | 3.75kg | 3.80kg | 5.65kg | 5.70kg |
| Mounting Option | Vesa mountable, Wall mount, Embedded, Desktop | |||||
| Operating Temperature | -30 ~ 70℃ | |||||
| Storage Temperature | -40 ~ 80℃ | |||||
| Humidity Range Non-condending | 5% - 95% | |||||
| Power | 12VDC (3A) <Option Wide-range Power Input 9 - 36VDC) | |||||
>Advantages:
The IPM Series of industrial display screens offers the most advantages for use in harsh environments and demanding applications:
Rugged Construction: The IPM Series display screens are built to withstand extreme conditions, including high temperatures, shock, vibration, and moisture. This rugged construction ensures that the displays can operate reliably in challenging industrial environments.
High Resolution and Brightness: The IPM Series features high-resolution LCD screens with bright, clear images that are easy to read in any lighting conditions. This high resolution and brightness make the displays ideal for use in industrial settings where visibility is critical.
Versatile Mounting Options: The IPM Series display screens can be mounted on walls, ceilings, or in custom enclosures to meet specific installation requirements. This versatility allows for flexible placement in a variety of industrial applications.
Easy Integration: The IPM Series display screens are designed for easy integration with industrial control systems and other equipment. They feature a variety of input options, including VGA, DVI, HDMI, and DisplayPort, as well as touch screen capabilities for interactive applications.
Customization Options: The IPM Series display screens are available in a range of sizes and configurations to suit a variety of industrial applications. Customization options allow for the selection of the display screen that best meets the specific needs of the application.
Overall, the IPM Series of industrial display screens offers durability, reliability, high performance, and flexibility, making them an ideal choice for use in challenging industrial environments.
>Applications:
The IPM Series of industrial display screens are versatile and can be used in a wide range of applications across various industries. The most common applications include:
Manufacturing Facilities: Industrial display screens are commonly used in manufacturing facilities for monitoring production processes, displaying real-time data, and providing visual instructions to operators on the factory floor.
Control Rooms: Display screens in control rooms are used to monitor and control critical processes, such as power generation, water treatment, and transportation systems. The IPM Series displays provide clear, high-resolution images for operators to make informed decisions quickly.
Outdoor Installations: The rugged construction of the IPM Series makes them suitable for outdoor installations, such as in transportation hubs, construction sites, and outdoor advertising displays. These displays can withstand exposure to harsh weather conditions and provide reliable performance in outdoor environments.
Oil and Gas Industry: Industrial display screens are used in the oil and gas industry for monitoring drilling operations, pipeline systems, and refinery processes. The IPM Series displays are designed to withstand the challenging conditions of oil and gas facilities, including exposure to high temperatures and vibrations.
Mining Operations: Display screens are used in mining operations for monitoring equipment status, tracking production metrics, and providing safety information to workers. The rugged construction of the IPM Series makes them suitable for use in the harsh environments of mining operations.
Transportation and Logistics: Industrial display screens are used in transportation and logistics facilities for tracking shipments, managing inventory, and displaying schedules. The IPM Series displays provide clear, high-visibility information that is essential for efficient operations in these industries.
Overall, the IPM Series of industrial display screens can be used in a wide range of applications where durability, reliability, and high performance are essential. Their versatility and rugged construction make them ideal for use in challenging industrial environments across various industries.
