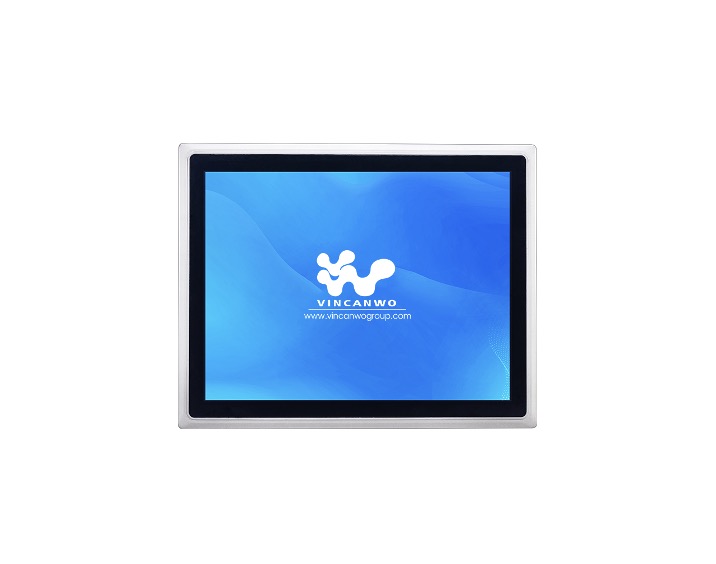

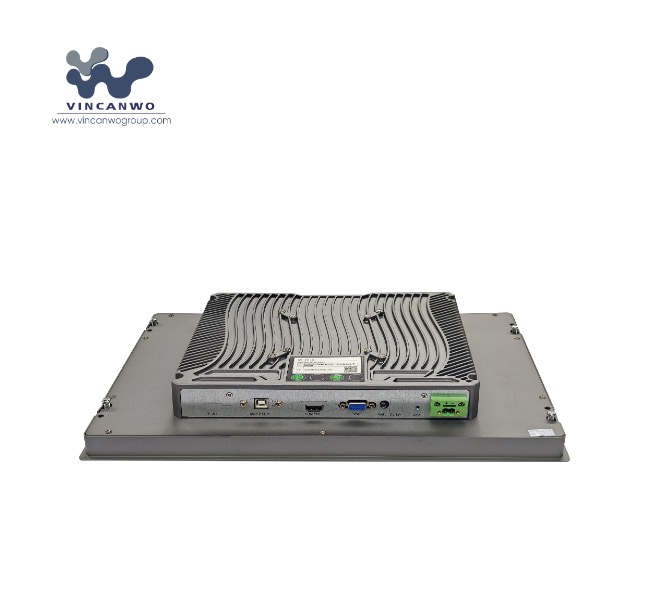

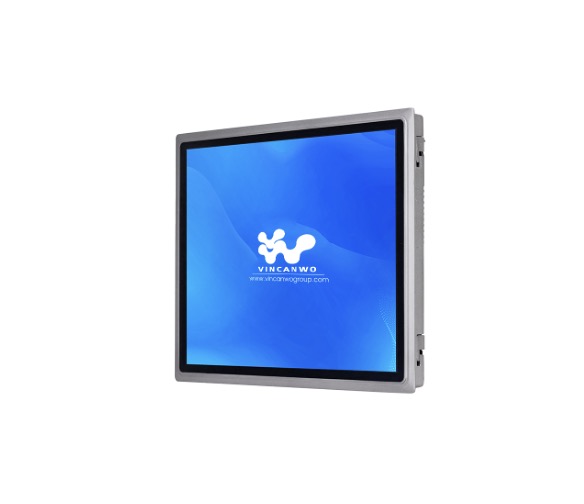

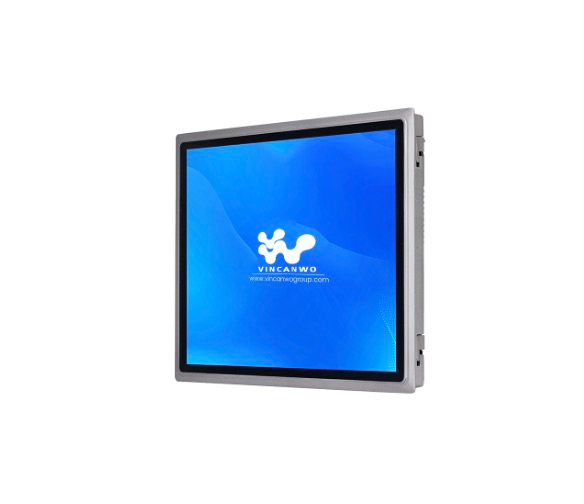

10.4" Fanless Industrial Display | IPM-104
VINCANWO
Availability: | |
---|---|
Quantity: | |
SKU | IPM-104 |
Screen Size | 10.4" |
Resolution | 1024*768 |
Viewing Angle | 89/89/89/89 |
Brightness | 500 cd/m2 |
Contrast Ratio | 900:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Cpacitive: ≥ 5M times / Resistive: ≥ 100,000 times |
USB | 1 *USB (For touchscreen cable) |
Display | 1 *HDMI, 1*VGA |
Dimensions (mm) | 277.3*224.5*55.8 |
Hole Sizes (mm) | External: 270*218 |
Internal: 266*213 | |
Individual Gross Weight (KG) | 2.25 |
Mounting Options | Embedded / Wall-mounted / Desktop |
Operating Temperature | -30 ~ +60℃ |
Storage Temperature | -40 ~ +70℃ |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | DC 12V (3A) |
Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Touch Screen Cable, 1 *VGA cable, 1 *Manual, 1 *Warranty Card |
>Advantages:
The 10.4" Industrial Monitor | IPM-104 offers the most advantages for industrial applications:
Compact size: The 10.4" screen size is ideal for applications where space is limited, providing a compact yet functional display solution.
High brightness: The monitor typically features high brightness levels, making it suitable for use in environments with high ambient light or sunlight exposure.
Wide viewing angles: The monitor is designed to offer wide viewing angles, ensuring that the display remains clear and readable from various positions.
Robust construction: Industrial monitors are built to withstand harsh environments, with rugged construction and durable materials that can withstand shock, vibration, and temperature fluctuations.
Customization options: Many industrial monitors offer customization options such as touchscreen functionality, protective coatings, and mounting options to meet specific application requirements.
Long-term reliability: Industrial monitors are designed for continuous operation and long-term reliability, making them suitable for demanding industrial applications.
Overall, the 10.4" Industrial Monitor | IPM-104 is a versatile and reliable display solution for industrial environments that require a compact yet durable monitor.
>Applications:
The 10.4" Industrial Monitor | IPM-104 is well-suited for a variety of industrial applications, including:
Manufacturing: The monitor can be used on the factory floor for monitoring production processes, displaying work instructions, and tracking inventory.
Automation: It can be integrated into automated systems for monitoring and controlling machinery and equipment.
Control Rooms: The monitor is ideal for control room applications where operators need to monitor and manage multiple processes simultaneously.
Transportation: It can be used in transportation applications such as in-vehicle displays for monitoring vehicle performance or as part of a transportation management system.
Energy and Utilities: The monitor can be used in energy and utility applications for monitoring power generation, distribution, and consumption.
Healthcare: It can be used in healthcare settings for patient monitoring, medical imaging, and electronic health record systems.
Retail: The monitor can be used in retail environments for digital signage, interactive kiosks, and point-of-sale systems.
Outdoor Environments: The monitor's high brightness and rugged construction make it suitable for outdoor applications such as outdoor kiosks, digital signage, and outdoor industrial equipment.
Overall, the 10.4" Industrial Monitor | IPM-104 is versatile and well-suited for a wide range of industrial applications that require a durable, high-performance display solution.
