| SKU | IPM-19 |
| Screen Size | 19" |
| Resolution | 1280*1024 |
| Viewing Angle | 85/85/80/80 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Screen | Capacitive, Resistive |
| Controller | USB interface |
| Durability | Cpacitive: ≥ 5M times / Resistive: ≥ 100,000 times |

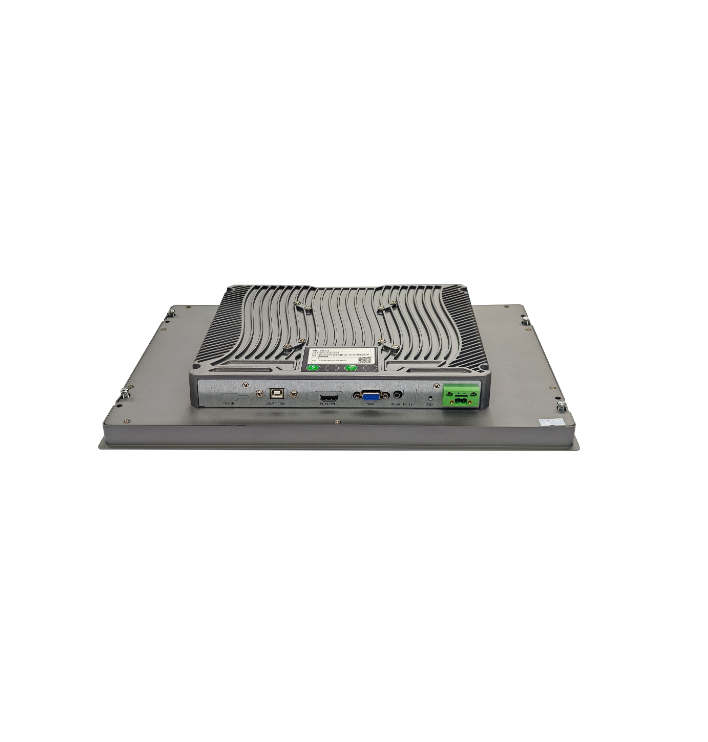

| USB | 1 *USB (For touchscreen cable) |
| Display | 1 *HDMI, 1*VGA |

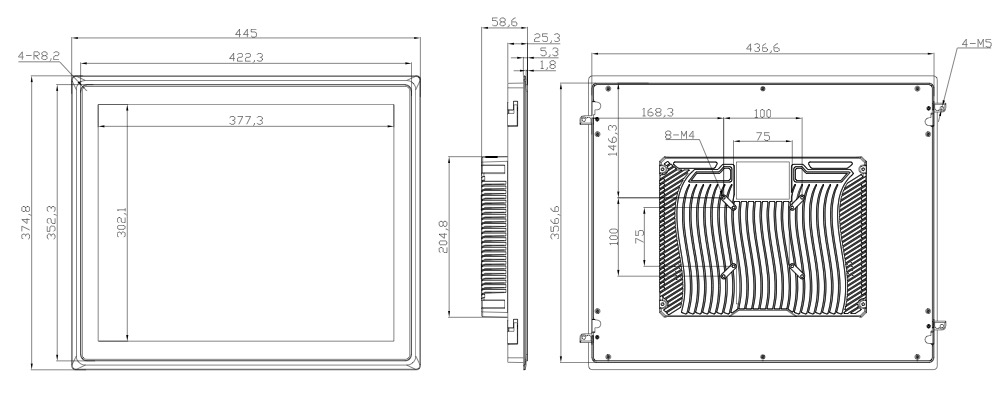

| Dimensions (mm) | 445*374.8*58.6mm |
| Moung Hole Sizes (mm) | External embedded size: 439*359mm |
| Internal embedded size: 423.8*353.8mm | |
Individual Gross Weight (KG) | 5.20kg |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30 ~ +70℃ |
| Storage Temperature | -40 ~ +80℃ |
Storage Humidity *Non-condensing | 5% ~ 95% |
| Power Input | 12V DC (3A) <Option Wide-range 9 ~ 36V DC Power Input> |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Touch Screen Cable, 1 *VGA cable, 1 *Manual, 1 *Warranty Card |
>Advantages
Our Vincanwo Group brand 19” Industrial Display for Control Panels | IPM-19 designed for the enhanced durability and reliability in harsh environments, intuitive user interfaces with touch screen capabilities, real-time data visualization, precise control over industrial processes, improved safety features, and the ability to monitor and manage complex systems with ease; making them ideal for demanding industrial applications where consistent performance is crucial.
Key benefits of our Vincanwo Group brand 19” Industrial Display for Control Panels | IPM-19 :
Robustness:
Designed to withstand extreme temperatures, vibration, dust, moisture, and other harsh industrial conditions, ensuring long-term operation without failure.
High Visibility:
Bright display with high contrast ratios, anti-glare coatings, and wide viewing angles provide clear information even in bright light conditions.
Touchscreen Functionality:
Intuitive user interaction with touch screens allows for quick and easy control of system parameters.
Real-time Data Display:
Capability to present live data and process updates, enabling immediate decision-making and monitoring.
Customizable Interfaces:
Ability to tailor the display layout and information presentation according to specific needs of the industrial process.
Data Logging and Recording:
Store critical data for analysis and troubleshooting purposes.
Remote Monitoring:
Integration with network systems allows for remote access and control of industrial processes.
Safety Features:
Designed with safety features like emergency shutdown buttons and clear visual alarms to minimize risks.
Reduced Maintenance:
High-quality components and rugged construction minimize downtime and maintenance requirements.
Our Vincanwo Group brand 19” Industrial Display for Control Panels | IPM-19 provides real-time monitoring and control, reducing risks, eliminating emissions, and enhancing productivity. Controlling the engine operation and compression process improves operational efficiency and reduces the risk of equipment downtime.
>Applications
Our Vincanwo Group brand 19” Industrial Display for Control Panels | IPM-19 used in control panels primarily serve as Human Machine Interfaces (HMIs), providing operators with a visual representation of system status, allowing them to monitor and control industrial processes through intuitive displays that show key parameters, alarms, and operational data, enabling efficient management of machinery and systems across various industries like manufacturing, power generation, oil and gas, and water treatment facilities.
Key applications of Our Vincanwo Group brand 19” Industrial Display for Control Panels | IPM-19:
Process Monitoring and Visualization:
Real-time display of critical process variables like temperature, pressure, flow rates, allowing operators to identify potential issues and optimize production.
Equipment Status Monitoring:
Displaying operational data of machines including running status, error codes, and maintenance alerts.
Alarm Management:
Visual indication of alarms with clear descriptions and priority levels for prompt response
Parameter Adjustment:
Intuitive controls for adjusting operating parameters of machinery based on process requirements
Data Logging and Trend Analysis:
Recording and displaying historical data to analyze trends and identify performance patterns
Remote Monitoring and Control:
Enabling access to control panels and process data from remote locations
Specific industrial sectors utilizing our Vincanwo Group brand 19” Industrial Display for Control Panels | IPM-19:
· Manufacturing: Production line monitoring, machine control, quality control
· Power Generation: Power plant operations, grid monitoring, turbine control
· Oil and Gas: Pipeline monitoring, wellhead control, refinery operations
· Water Treatment: Water quality monitoring, pump control, chemical dosing
· Building Automation: HVAC system management, lighting control, energy monitoring
Important features of our Vincanwo Group brand 19” Industrial Display for Control Panels | IPM-19:
· High Brightness: Visible in harsh lighting conditions like direct sunlight
· Wide Viewing Angle: Clear visibility from various viewing positions
· Rugged Design: Resistant to shock, vibration, and dust
· Touchscreen Functionality: Intuitive user interaction with touch commands
· Wide Temperature Range: Operation in extreme environments
Our Vincanwo Group brand 19” Industrial Display for Control Panels | IPM-19 is widely used in the manufacturing sector to streamline processes and enhance productivity. Control Panels: LCDs serve as interfaces for monitoring and controlling machinery. Operators can view machine status, adjust settings, and troubleshoot issues in real time.
