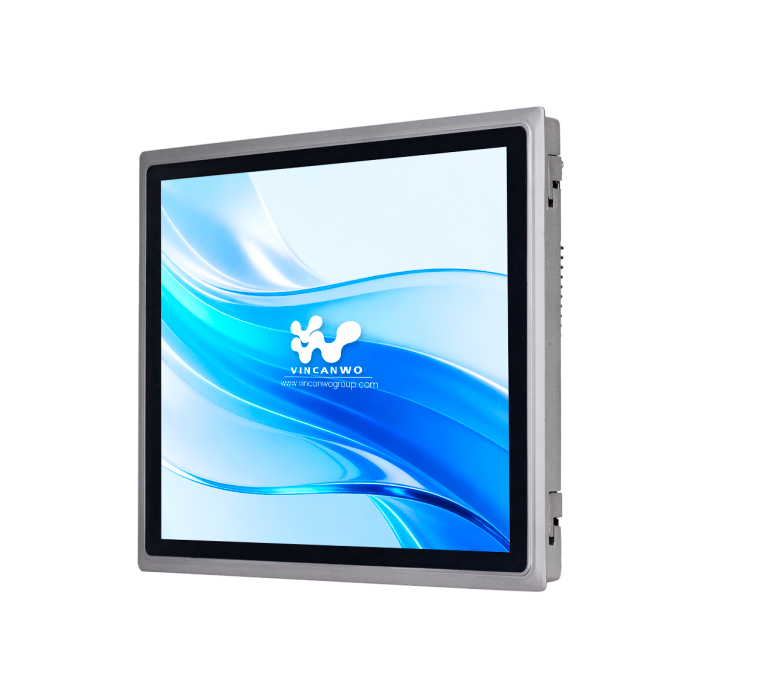

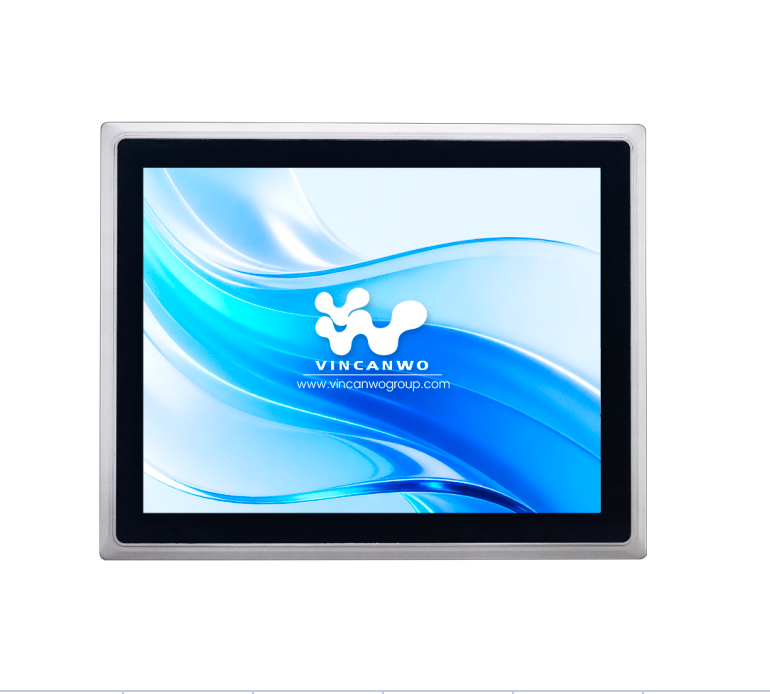

| SKU | IPM-17 |
| Screen Size | 17" |
| Resolution | 1280*1024 |
| Viewing Angle | 85/85/80/80 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Screen | Capacitive, Resistive |
| Controller | USB interface |
| Durability | Cpacitive: ≥ 5M times / Resistive: ≥ 100,000 times |

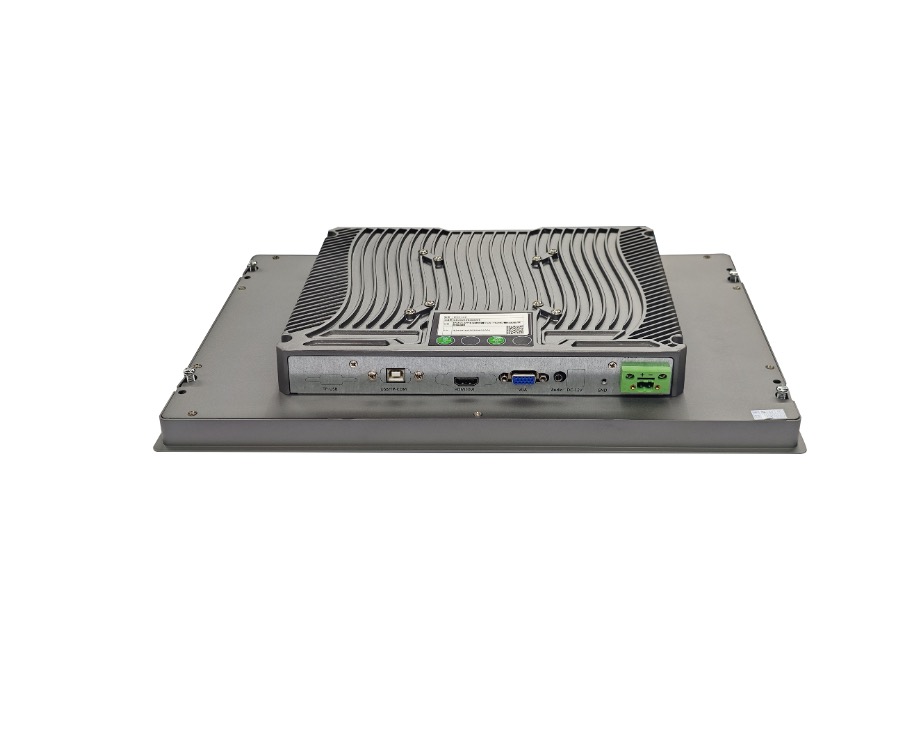

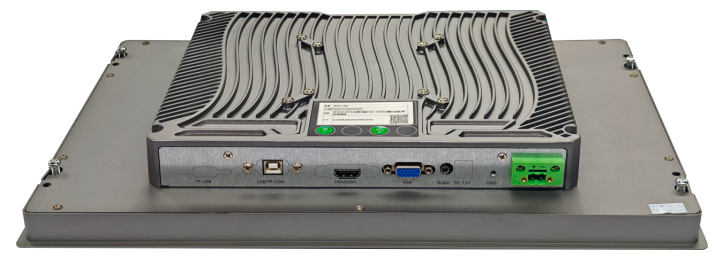

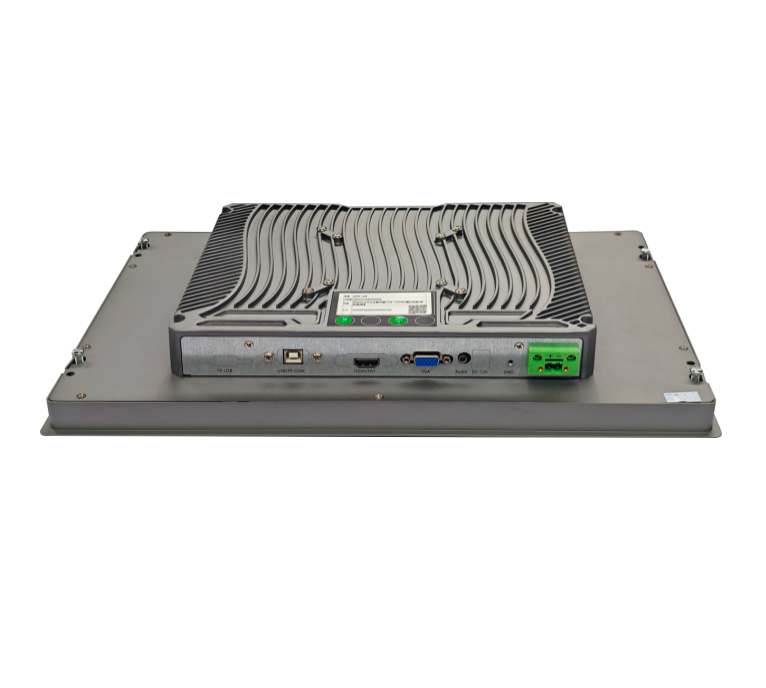

| USB | 1 *USB (For touchscreen cable) |
| Display | 1 *HDMI, 1*VGA |

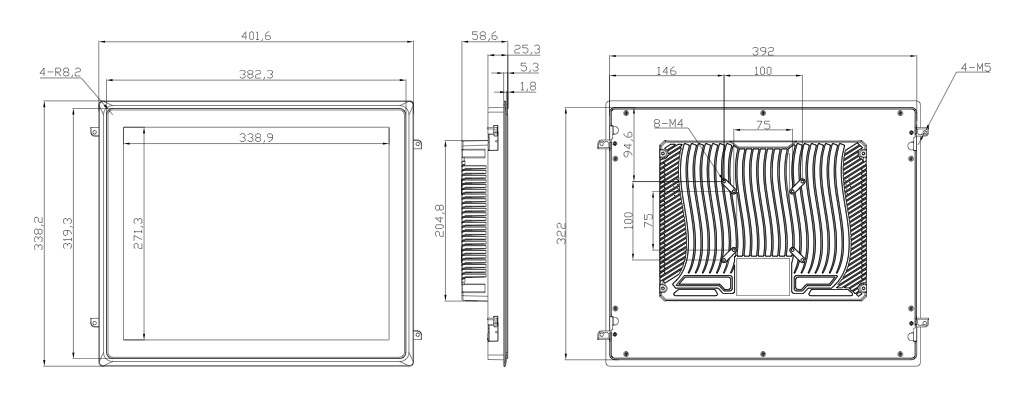

| Dimensions (mm) | 401.6*338.2*58.6mm |
| Mounting Hole Sizes (mm) | External embedded size: 394*324mm |
| Internal embedded size: 383.8*320.8mm | |
Individual Gross Weight (KG) | 5.15kg |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30 ~ +70℃ |
| Storage Temperature | -40 ~ +80℃ |
Storage Humidity *Non-condensing | 5% ~ 95% |
| Power Input | 12V DC (3A) <Option Wide-range 9 ~ 36V DC Power Input> |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Touch Screen Cable, 1 *VGA cable, 1 *Manual, 1 *Warranty Card |
| Feature | IPM-17 Specifications |
|---|---|
| Display | 17.0" LED-backlit TFT LCD |
| Resolution | 1280x1024 (SXGA, 5:4 aspect ratio) |
| Brightness | 500-1000 cd/m² (adjustable) |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178° H/V (IPS panel) |
| Touch Screen | Optional: 5-wire resistive or PCAP (IP65-rated) |
| Operating Temp | -30°C to +70°C (with heating/cooling options) |
| Enclosure Rating | IP65 front panel (dust-tight, low-pressure water jets) |
| Power Consumption | < 15W (typical), 12-24V DC input |
| Construction | Aluminum chassis |
Energy-Efficiency Tech:
LED Backlight: 50,000+ hour lifespan (vs. CCFL’s 30k hours).
Dynamic Dimming: Light sensor adjusts brightness based on ambient light.
Low-Power Processor: ARM Cortex-A53 or Intel Apollo Lake (3-5W TDP).
Ruggedization:
Vibration/Shock: 5G operational, 50G non-operational (IEC 60068-2).
Anti-Glare Treatment: Matte coating for readability under bright factory lights.
Conformal Coating: PCB protection against humidity/corrosion (optional).
Industrial Connectivity:
Video Inputs: HDMI, DisplayPort, VGA (legacy support).
Control Ports: RS-232/485, USB 2.0/3.0 (IP-rated connectors).
Expansion: Mini-PCIe for 4G/Wi-Fi, M.2 for storage.
Factory Automation: HMI for PLCs, production line monitoring.
Transportation: Train control panels, fleet dashboard displays.
Medical: Diagnostic equipment interfaces (EN 60601-1 certified variants).
Energy: SCADA system displays in substations/oil rigs.
Cost Savings: 15W vs. 40W (commercial displays) → ~$100/year savings per unit (24/7 operation).
Heat Reduction: Lower cooling needs in enclosed control cabinets.
Sustainability: Meets ISO 50001/14001 standards for green manufacturing.
| Requirement | IPM-17 Solution |
|---|---|
| Sunlight Readability | ≥ 500 nits + anti-reflective coating |
| Glove-Compatible Touch | 5-wire resistive (supports thick gloves) |
| Chemical Resistance | Front bezel resists oils/solvents (IP66) |
| Mounting | VESA 75/100, panel cutout 387x309mm |
| Certifications | FCC, CE, LVD, RoHS |
| Feature | IPM-17 Industrial | Commercial 17" Monitor |
|---|---|---|
| Operating Temp | -30°C to 70°C | 0°C to 40°C |
| Power Input | 12-24V DC (wide range) | 100-240V AC only |
| Vibration | 5Grms (IEC 60068-2-64) | Not rated |
| Lifecycle | 7-10 years supply guarantee | 1-3 years |
| MTBF | 100,000+ hours | 30,000 hours |
Control Cabinet Integration:
Use DIN-rail power supplies (24V) with 30% headroom.
Ensure 10cm clearance for heat dissipation.
EMC Compliance:
Add ferrite cores to cables in high-noise environments (e.g., welding shops).
Software Compatibility:
Verify drivers for Windows IoT/Embedded, Linux (Yocto), or real-time OS (VxWorks).
