| SKU | IPM-156 |
| Screen Size | 15.6" |
| Resolution | 1920*1080 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Screen | Capacitive, Resistive |
| Controller | USB interface |
| Durability | Cpacitive: ≥ 5M times / Resistive: ≥ 100,000 times |
| USB | 1 *USB (For touchscreen cable) |
| Display | 1 *HDMI, 1*VGA |

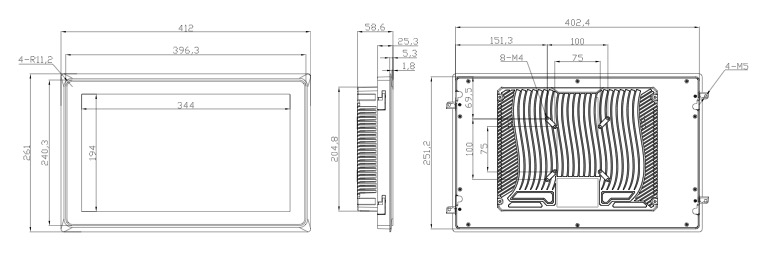

| Dimensions (mm) | 412*261*58.6 |
| Hole Sizes (mm) | External embedded size: 404*253mm |
| Internal embedded size: 397.5*241.8mm | |
Individual Gross Weight (KG) | 3.30kg |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30 ~ +70℃ |
| Storage Temperature | -40 ~ +80℃ |
Storage Humidity *Non-condensing | 5% ~ 95% |
| Power Input | 12V DC (3A) <Option Wide-range 9~36V DC Power Input> |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Touch Screen Cable, 1 *VGA cable, 1 *Manual, 1 *Warranty Card |
IPM-156 15.6" Durable Industrial Display has many benefits, including:
Robustness
Industrial displays are designed to withstand harsh environments, such as extreme temperatures, moisture, dust, and vibrations. They are often made from rugged materials like stainless steel or high durability polymers.
Resistance to liquids and contaminants
Industrial displays are resistant to liquids and surface contaminants that can damage internal components. They also have IP ratings that indicate their level of resistance to solids and liquids.
Extended operating temperature
Industrial displays can operate in a wider temperature range than conventional displays, making them suitable for outdoor applications or industrial processes with extreme temperatures.
Fanless design
Fanless designs eliminate the need for ventilation holes, which can allow dust and water particles to get in. This design also makes the display more durable, reliable, and long-lasting.
High brightness
High brightness screens are essential for outdoor visibility and readability in conditions of high ambient light.
Ability to withstand abuse
Durable touchscreens can withstand being dropped from heights, accidental touch, and abusive usage.
