The IPM-SE Series of industrial fanless touchscreen monitors are designed for use in harsh industrial environments where traditional fans may not be suitable. These monitors feature a rugged construction with an aluminum housing and IP65-rated front panel for protection against dust and water ingress.
The fanless design ensures silent operation and eliminates the risk of fan failure, making these monitors ideal for use in noise-sensitive environments. The touchscreen interface allows for easy operation and control, even with gloves on, making them suitable for use in a wide range of industrial applications.

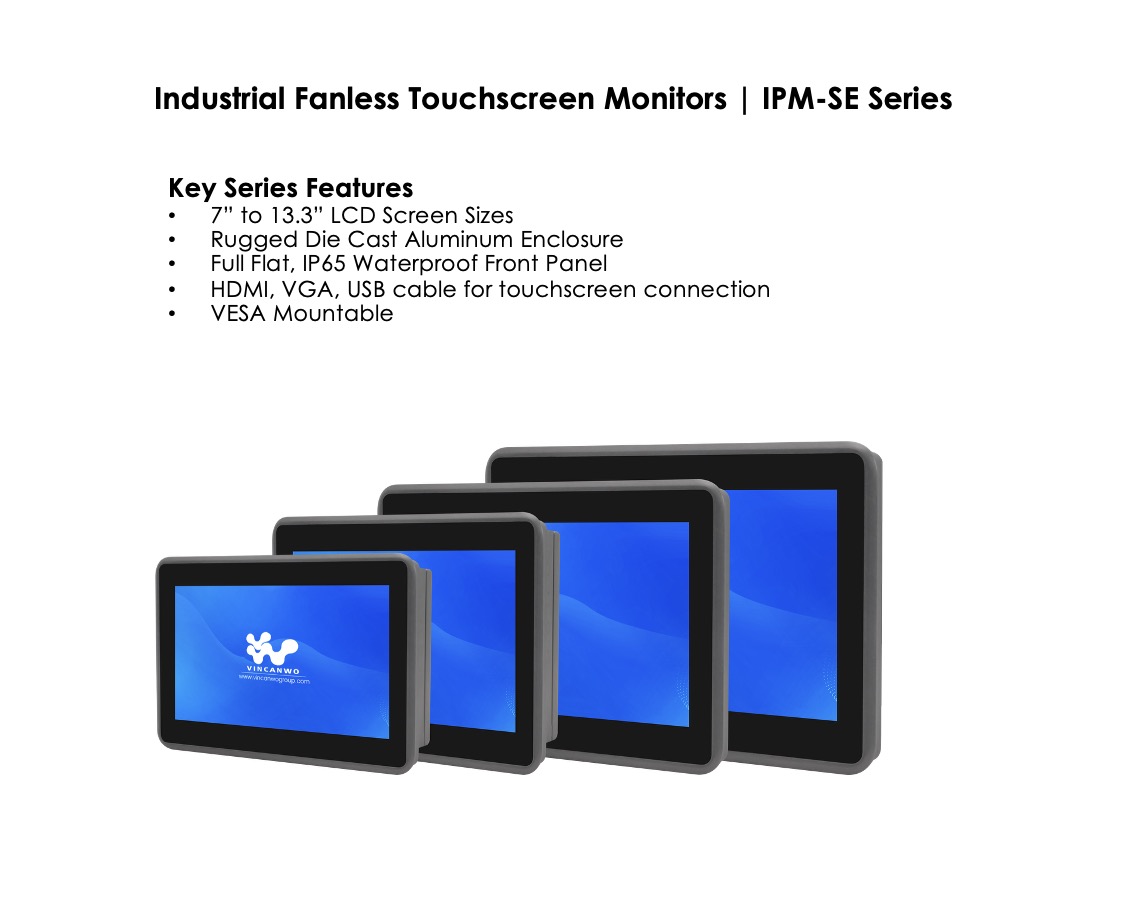

Key Series Features
• 7” to 13.3” LCD Screen Sizes
• Rugged Die Cast Aluminum Enclosure
• Full Flat, IP65 Waterproof Front Panel

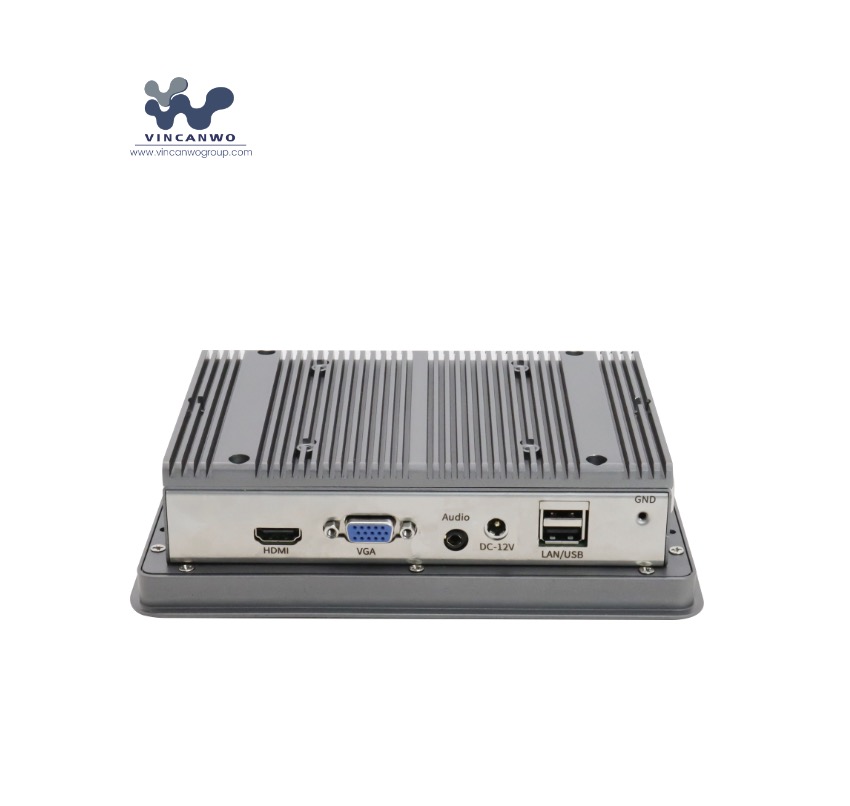

• HDMI, VGA, USB cable for touchscreen connection
• Vesa mountable, Wall mount, Embedded and Desktop
Industrial Fanless Touchscreen Monitors | IPM-SE Series
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |

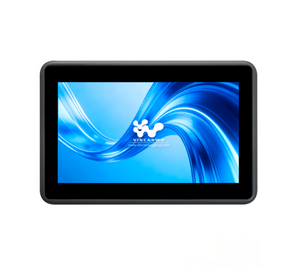

| SKU | IPM-SE7 | IPM-SE8 | IPM-SE101 | IPM-SE133 |
| Screen Size | 7" | 8" | 10.1" | 13.3" |
| Resolution | 1024x600 | 1024x768 | 1280x800 | 1920x1080 |
| Viewing Angle | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 |
| Brightness | 300 cd/㎡ | 300 cd/㎡ | 400 cd/㎡ | 300 cd/㎡ |
| Touch Screen | Capacitive | |||
| Controller | USB Interface | |||
| Durability | ≥ 5M times | |||
| USB | 1x USB cable for touchscreen connection | |||
| Display | 1x HDMI, 1x VGA | |||
| Dimension | 194x129.9x52mm | 234x187x52mm | 266.1x181.9x52mm | 337x208.6x52mm |
| Mounting Hole Size | 188x124mm | 228x181mm | 260x176mm | 331.5x203mm |
| Gross Weight | 1.80kg | 2.40kg | 3.00kg | 3.50kg |
| Mounting Option | Embedded, Wall Mount, Desktop, Vesa Mountable | |||
| Operating Temperature | -30 ~ 70℃ | |||
| Storage Temperature | -40 ~ 80℃ | |||
Humidity Range Non-condending | 5% - 95% | |||
| Power | 12VDC (3A) <Option Wide-range Power Input 9 - 36VDC) | |||
>Advantages:
Reliability: Fanless monitors have fewer moving parts, which reduces the risk of mechanical failure. This results in increased reliability and uptime in industrial environments where continuous operation is critical.
Silent operation: Fanless monitors operate without the noise generated by cooling fans, making them ideal for quiet environments or areas where noise pollution is a concern.
Dust and debris resistance: The fanless design of our monitors prevents dust and debris from entering the system, reducing the risk of damage and extending the lifespan of the monitor.
Low maintenance: With no cooling fans to clean or replace, fanless monitors require less maintenance compared to traditional monitors with fans. This results in lower maintenance costs and less downtime for maintenance activities.
Energy efficiency: Fanless monitors consume less power compared to monitors with cooling fans, resulting in lower energy costs and reduced environmental impact.
Rugged construction: Our IPM Series of industrial fanless monitors are built with durable materials and designed to withstand harsh industrial environments, ensuring long-term durability and performance.
Overall, Industrial Fanless Monitors from our IPM Series offer reliable, silent, and low-maintenance operation in industrial settings, making them a cost-effective and efficient solution for various industrial applications.
>Applications:
Manufacturing facilities: Our fanless monitors are ideal for use in manufacturing plants where dust, vibrations, and extreme temperatures are common. They can be used for monitoring production processes, displaying work instructions, and controlling machinery.
Warehouses and logistics centers: Fanless monitors are well-suited for use in warehouses and logistics centers where dust and debris can be a concern. They can be used for inventory management, order picking, and monitoring shipping and receiving operations.
Outdoor environments: Our IPM Series monitors are designed to withstand harsh outdoor conditions, making them suitable for use in outdoor applications such as outdoor kiosks, digital signage, and monitoring systems for outdoor equipment.
Transportation and automotive industry: Fanless monitors can be used in transportation vehicles, such as buses, trains, and trucks, for passenger information displays, navigation systems, and monitoring vehicle performance.
Oil and gas industry: Our fanless monitors are rugged and durable, making them suitable for use in oil and gas facilities where exposure to harsh chemicals, extreme temperatures, and vibrations is common. They can be used for monitoring equipment status, displaying process data, and controlling operations.
Food and beverage industry: Fanless monitors are ideal for use in food processing plants and beverage production facilities where cleanliness is essential. They can be used for monitoring production lines, displaying recipes, and controlling packaging equipment.
Overall, Industrial Fanless Monitors from our IPM Series are versatile and reliable solutions for a wide range of industrial applications where durability, reliability, and performance are essential.
