This display adopts a premium 13.3-inch industrial TFT LCD panel with a standard 16:9 widescreen ratio, delivering a full HD resolution of 1920×1080 to present ultra-clear and delicate image details for industrial data monitoring, equipment operation and process visualization. It features a standard industrial brightness of 300 cd/m² and an 800:1 high contrast ratio, ensuring vivid color reproduction and distinct image hierarchy even in complex indoor industrial light environments. Equipped with an 85°/85°/85°/85° four-direction ultra-wide viewing angle, it maintains stable and consistent display effects without color distortion or brightness attenuation when viewed from multiple angles, meeting the multi-person observation and multi-position operation needs of industrial sites.
2. High-Stability Capacitive Touch System with Ultra-Long Service Life
The IPM-SE133 is equipped with a high-precision projected capacitive touch screen, supporting sensitive and smooth touch response. Optimized for industrial operation scenarios, it supports normal operation with gloves in conventional industrial environments, effectively adapting to the wearing operation habits of factory staff. The touch module boasts an ultra-long service life of more than 5 million touch times, with stable and durable touch sensing performance and no failure or drift after long-term high-frequency use. It adopts a standard USB touch control interface, featuring plug-and-play, strong compatibility and low latency, realizing real-time and accurate human-computer interaction.
Adopting a professional fanless passive heat dissipation structure, the display completely eliminates the failure risks caused by traditional cooling fans such as dust accumulation, debris blockage and mechanical wear. It realizes silent operation while greatly improving equipment stability and reducing later maintenance costs, perfectly adapting to dust-intensive industrial workshops and noise-sensitive production scenarios. The whole machine uses a high-strength die-cast aluminum chassis, which has excellent anti-collision, anti-vibration and anti-drop capabilities, and can resist mechanical impact and vibration interference in industrial production environments. The full-flat front panel design avoids dust and dirt accumulation gaps, realizing a more concise and practical industrial appearance.
The front panel of the display reaches IP65 industrial protection grade, effectively blocking dust intrusion and resisting splashing water, oil stains and industrial debris, realizing efficient dustproof and waterproof performance, and adapting to harsh working conditions such as processing workshops, food production lines and outdoor industrial equipment. It supports an ultra-wide operating temperature range of -30°C to +70°C and a storage temperature range of -40°C to +80°C, with stable working performance without screen blackout, color cast or touch failure in high-temperature, low-temperature and temperature-changing environments. In addition, it adapts to 5%–95% non-condensing humidity environment, fully meeting the environmental adaptation requirements of industrial, energy, mining and transportation scenarios.
5. Flexible Power Supply & Rich Universal Interfaces

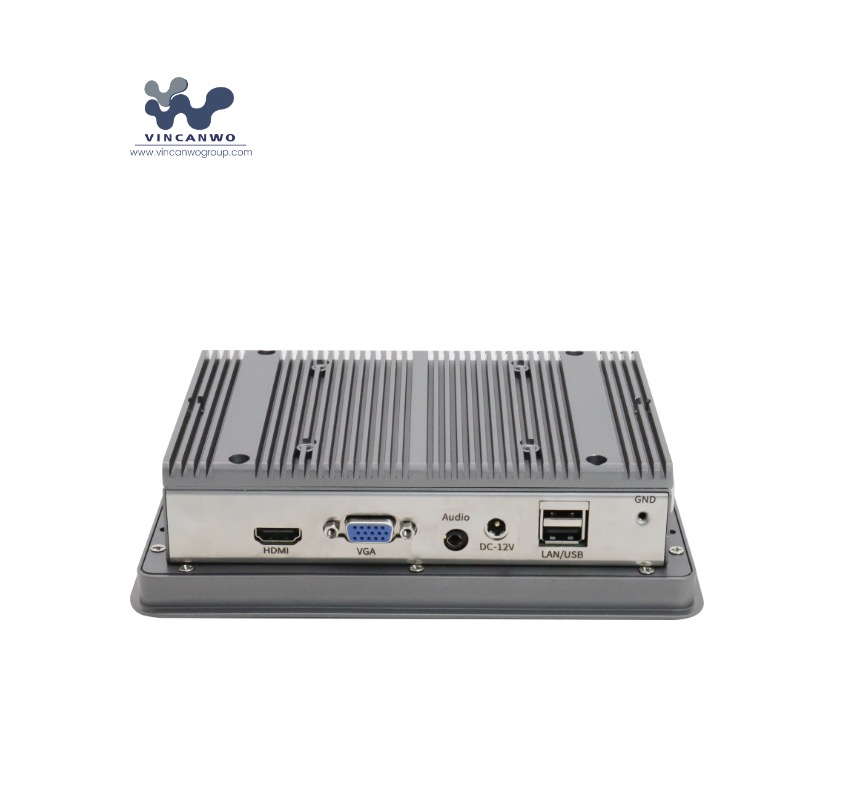

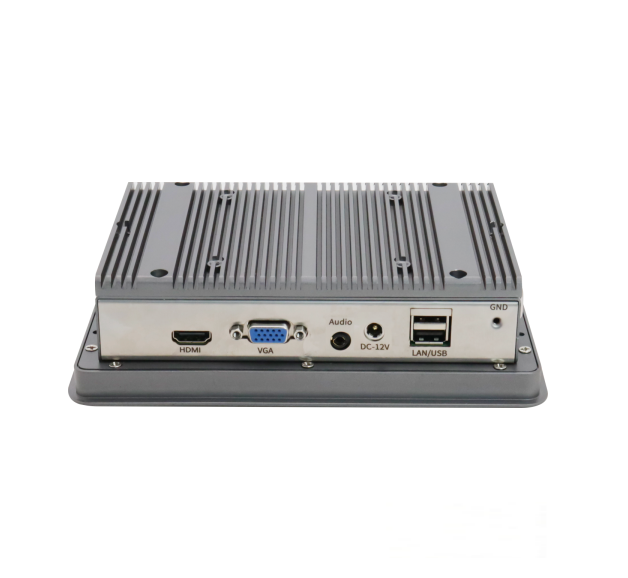

In terms of power supply, the standard configuration supports 12VDC/3A power input, and a wide-range DC 9–36V power supply scheme is optional, which is compatible with various industrial power supply equipment and vehicle power supply systems, with strong scene compatibility. For signal transmission, it is equipped with mainstream industrial universal interfaces, including 1×HDMI and 1×VGA video input interfaces, which are compatible with various industrial hosts, PLCs and control equipment. The independent USB interface is dedicated to touch signal transmission, ensuring stable and uninterrupted touch communication.
6. Diversified Installation Methods & Strong Scene Compatibility

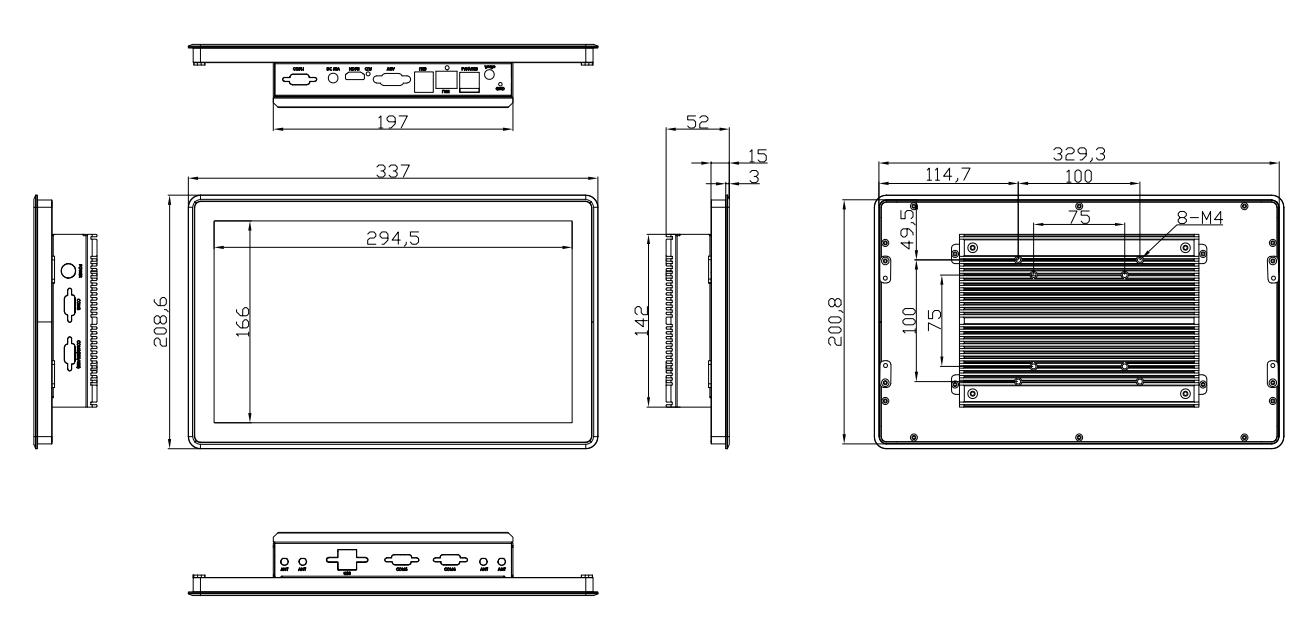

The display supports multiple flexible installation methods including embedded installation, wall mounting and desktop installation, and is compatible with standard VESA mounting specifications. It can be freely deployed in industrial control cabinets, production line operation tables, automated equipment terminals and other different installation positions. The compact and streamlined body structure (337×208.6×52mm) and 3.5kg lightweight design save installation space and reduce equipment load, realizing rapid deployment and flexible layout in various industrial scenarios such as intelligent manufacturing, industrial automation, energy monitoring, transportation and mining equipment.
1. Industrial Automation & Smart Manufacturing
The IPM‑SE133 serves as a core HMI display terminal for factory automated production lines. It is commonly embedded in industrial control cabinets and operation consoles to realize real-time production data visualization, equipment parameter adjustment, and on-site process monitoring. With glove-touch support, long-life touch sensors, and dust-proof splash-proof design, it adapts to long-duration high-frequency operation in workshop environments. It perfectly matches PLC, industrial host, and automation control systems for mechanical equipment control, assembly line monitoring, and intelligent workshop management.
2. Transportation & Vehicle-Borne Industrial Systems
Thanks to its wide voltage DC 9–36V power compatibility, anti-vibration structure, and wide temperature working range, the monitor is highly suitable for vehicle-mounted and transportation scenarios. It can be installed on engineering vehicles, buses, trains, and transportation terminals to display real-time route data, passenger information, and on-board surveillance videos. Its fanless structure avoids vibration-induced failures, ensuring stable display and interactive performance during long-term vehicle operation and bumpy road conditions.
3. Energy, Power & Utility Monitoring
This industrial touch screen is widely applied in power stations, new energy equipment, water supply and drainage systems, and environmental monitoring stations. It stably displays energy operation data, equipment operating status, and real-time environmental parameters. The ultra-wide temperature resistance (-30°C to +70°C) and dustproof design enable continuous reliable operation in outdoor and semi-outdoor energy monitoring sites, supporting unattended monitoring and remote data viewing for energy and utility equipment.
4. Logistics, Warehousing & Smart Terminals
In intelligent logistics parks, automated warehouses, and parcel sorting stations, the IPM‑SE133 functions as an on-site operation terminal. It displays cargo sorting information, AGV equipment status, inventory data, and logistics scheduling information. The high-sensitivity plug-and-play USB touch response improves the efficiency of manual intervention and on-site scheduling. Its compact body and diverse installation methods greatly adapt to limited installation space of logistics terminal equipment.
5. Mining & Harsh Industrial Sites
With a high-strength die-cast aluminum casing, vibration resistance, and full IP65 front dust and water protection, the monitor adapts to dusty, humid, and high-vibration mining and heavy industrial environments. It is used for mine equipment status monitoring, production data statistics, and on-site safety information display, maintaining stable operation in harsh working conditions where commercial displays cannot work properly.
6. Food & Pharmaceutical Production Lines
The seamless full-flat front panel allows quick and thorough cleaning, resisting oil stains, dust accumulation, and conventional disinfectant cleaning. It meets the hygiene management requirements of food processing and pharmaceutical production workshops. Operators can complete production parameter setting, batch data recording, and equipment operation monitoring through precise touch interaction, supporting standardized and clean industrial production management.
7. Intelligent Self-Service & Industrial Kiosks
Supporting embedded, wall-mounted and desktop installation, the IPM‑SE133 is an ideal display component for customized industrial self-service kiosks, factory query terminals, and on-site detection terminals. The 16:9 full HD wide viewing angle ensures clear display for multi-angle viewing, while stable touch performance guarantees long-term unattended operation of self-service equipment.
