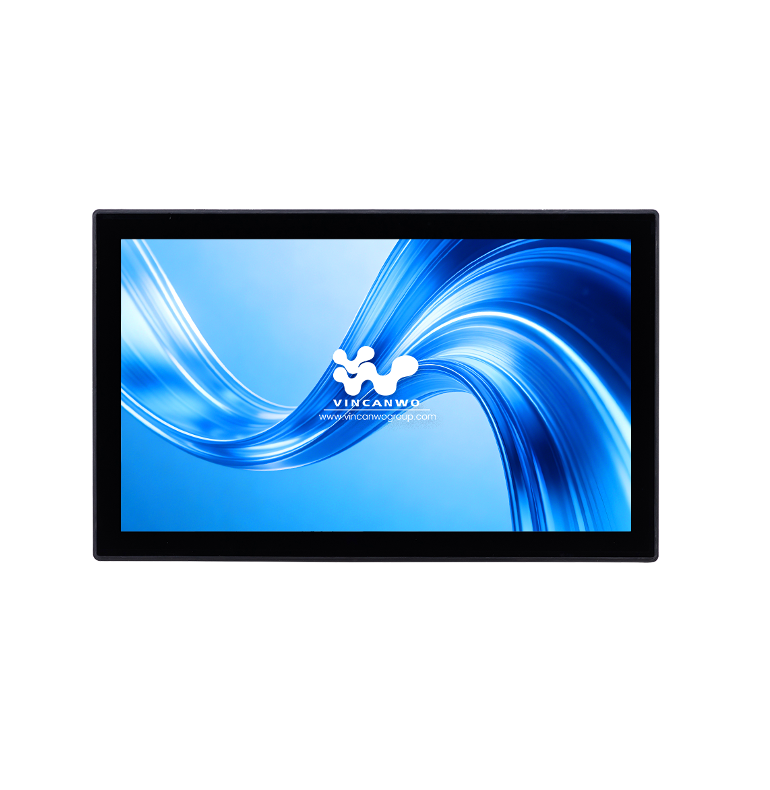

OPX-215
VINCANWO GROUP
IP66 Front Bezel
21.5"
| Availability: | |
|---|---|
| Quantity: | |

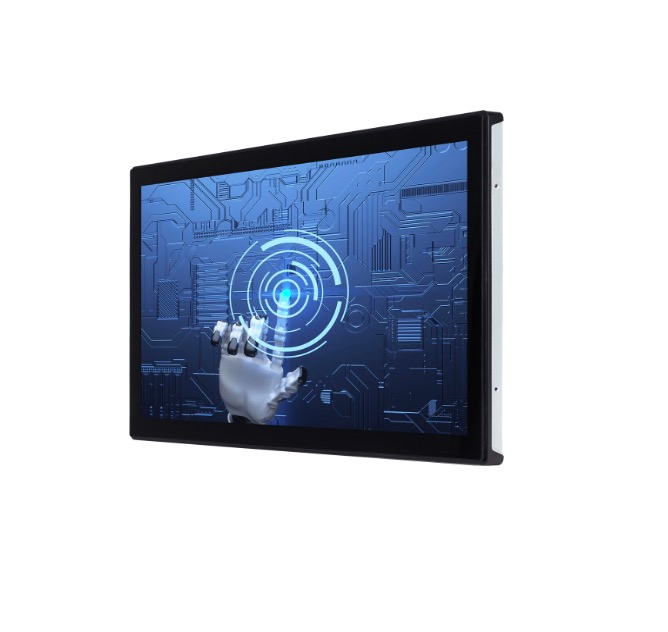

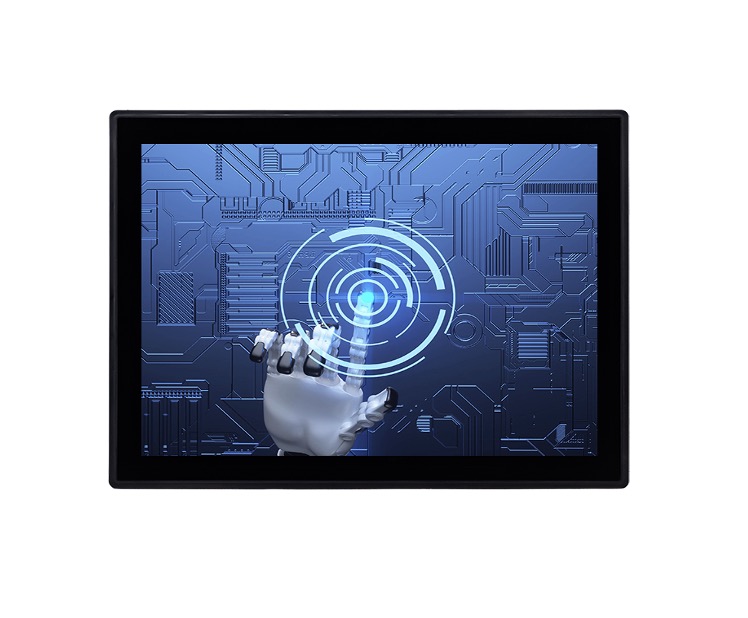

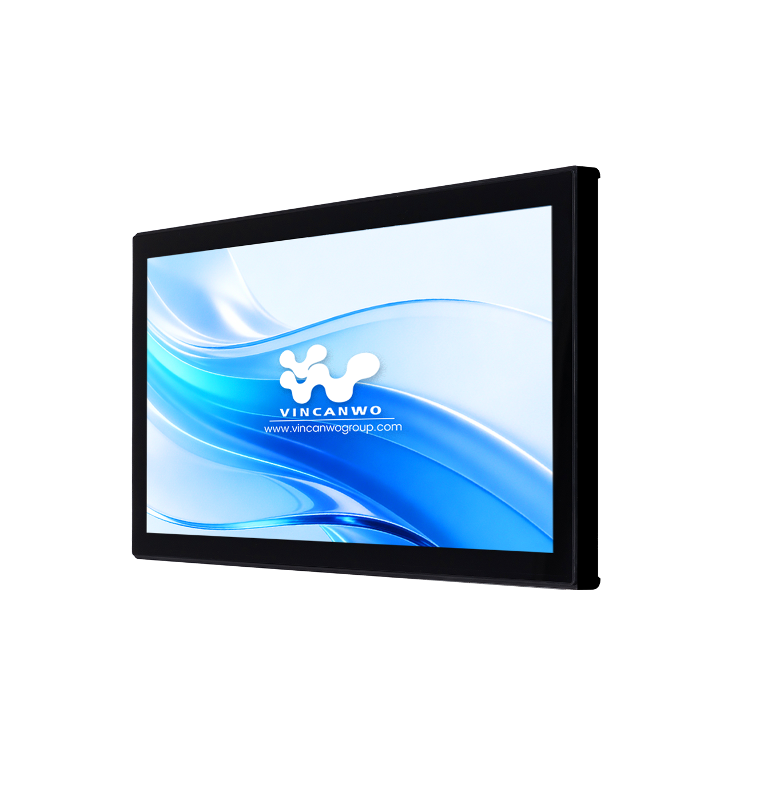

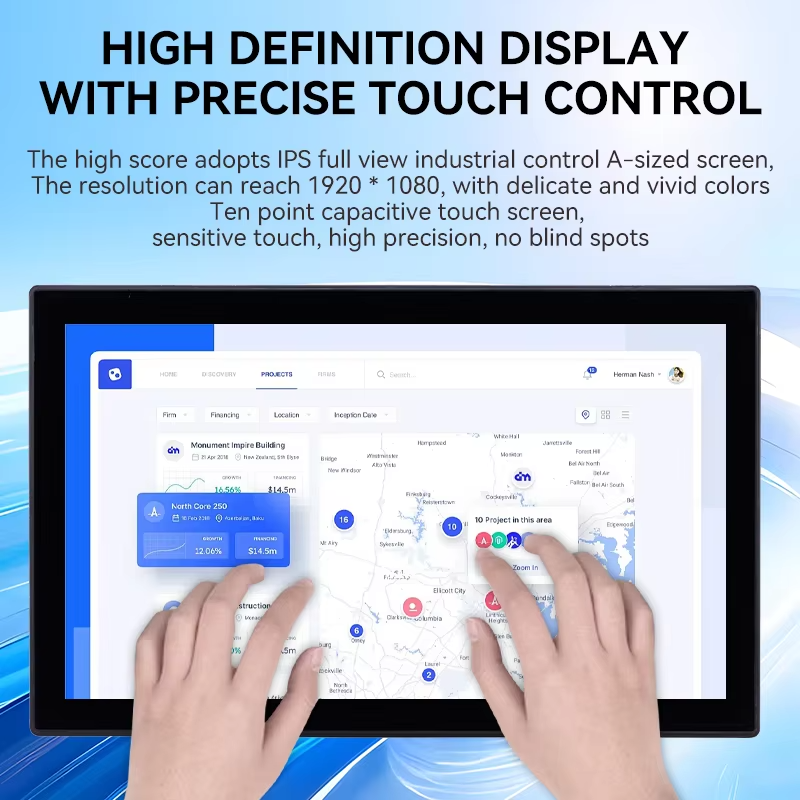

The OPX-215 is a 21.5-inch high-resolution industrial display equipped with high-definition image output and precise touch control functions. It delivers crisp, clear visual presentation while offering sensitive, stable touch operation to satisfy industrial human-machine interaction needs.
Model OPX-215 is a 21.5-inch high-resolution industrial display built with robust industrial-grade protection capabilities. It delivers reliable performance with outstanding dustproof, anti-corrosion, pressure-resistant and anti-electromagnetic interference properties, making it stable and durable for complex, harsh industrial operating environments.
| SKU | OPX-215 |
| Screen Size | 21.5" |
| Resolution | 1920*1080 |
| Viewing Angle | 89/89/89/89 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 3000:1 |
| Touch Screen | Capacitive |
| Controller | USB interface |
| Durability | ≥ 5M times |
| USB | 1 *USB (For touchscreen cable) |

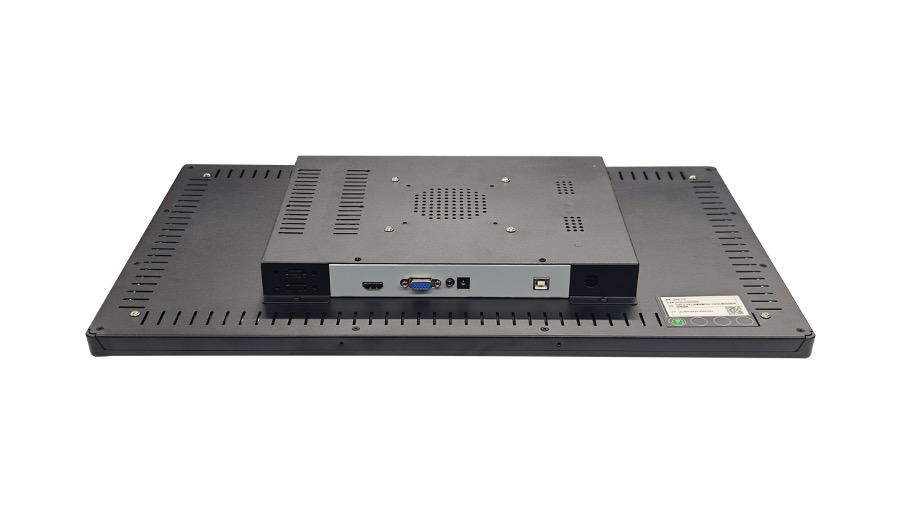

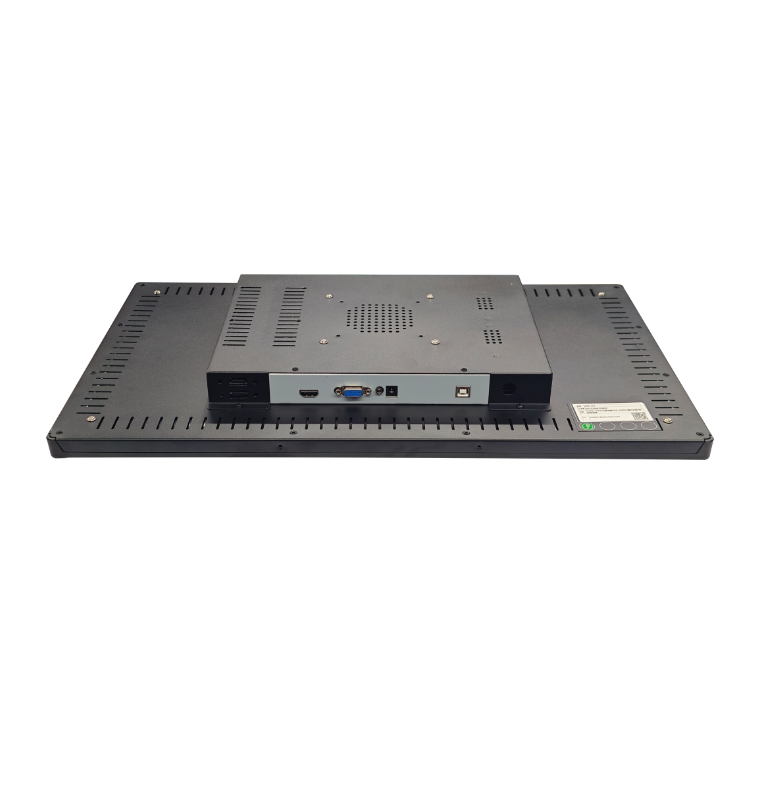

| Display | 1 *HDMI, 1 *VGA |
| Dimensions (mm) | 533.6*320.9*51.3 |
| Mounting Sizes (mm) | 527.9*314.9 |
Individual Gross Weight (KG) | 5.70kg |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30 ~ +60℃ |
| Storage Temperature | -40 ~ +70℃ |
Storage Humidity *Non-condensing | 5 ~ 95% |
| Power Input | DC 12V (3A), optional 9-36VDC Wide-range Voltage Power Input |

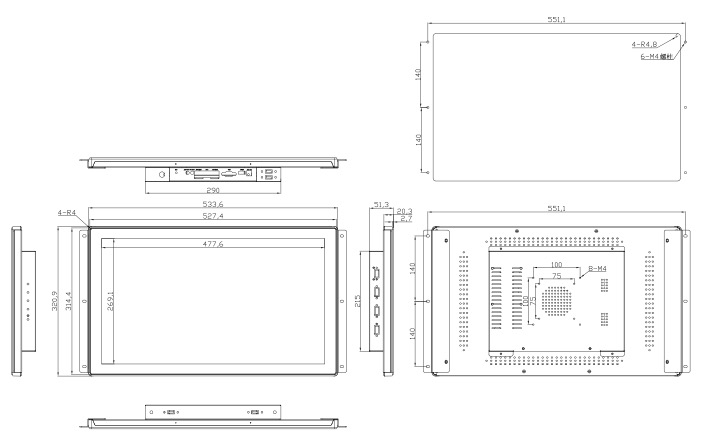

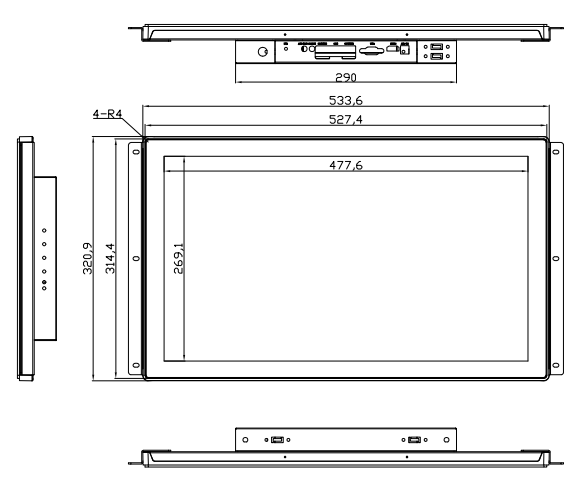

Recommended Mounting Dimension: 527.9*314.9mm
